LESER Global Standard
Assembly instructions for type 526 API
LGS 4104
Page 10/45
disclosure cat.:
II
proofread:
SSt
published date:
06/14/18
effect. date:
05/18
author:
Nieh
released by:
KUW
replaces:
initial
status:
Published
resp. depart.:
IE
date of release:
06/14/18
revision No.:
2
doc. type:
LGS
change rep. No.:
NA
retention period:
10
protected
Illustration
Description
Aids / Tools

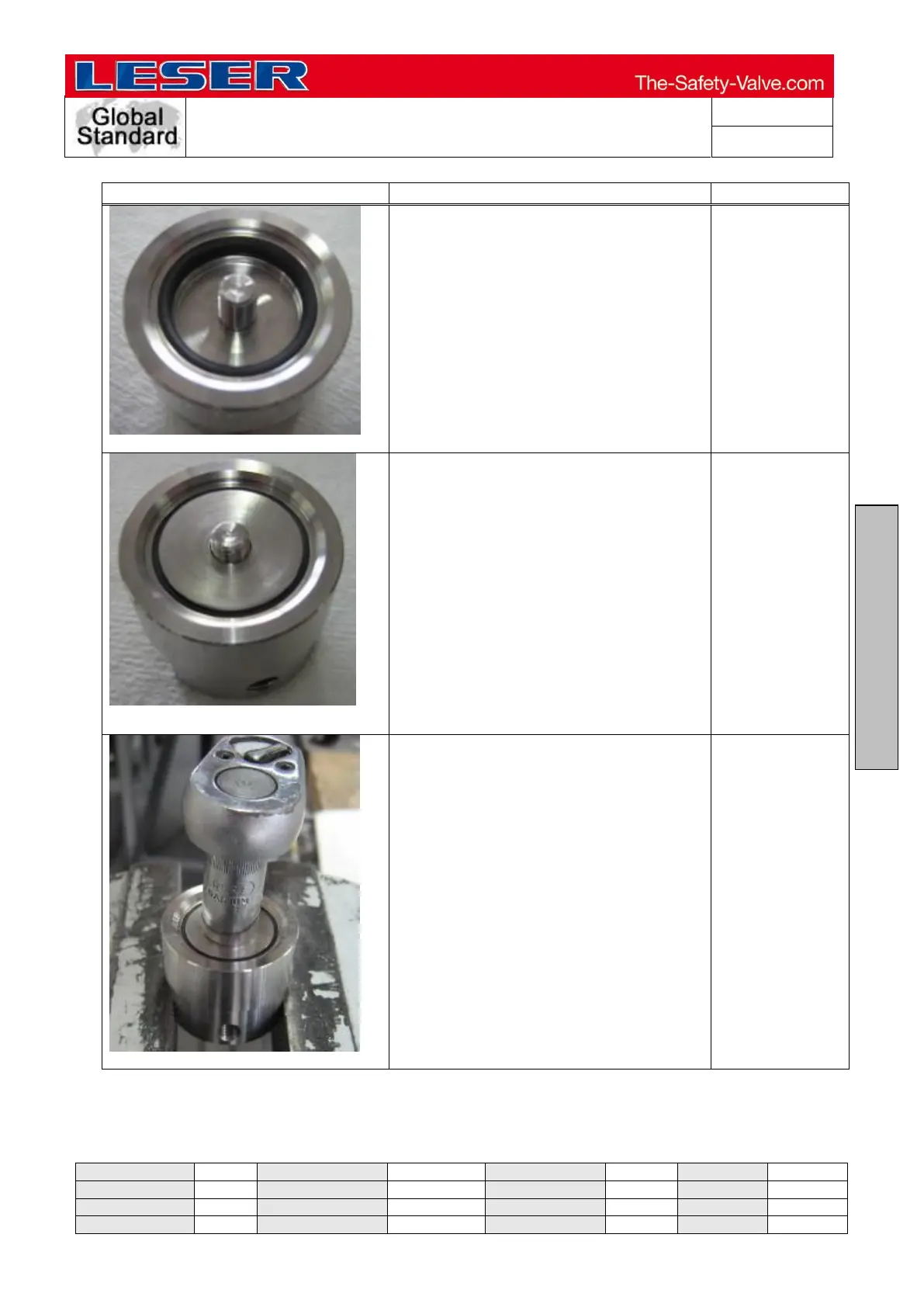

Figure 9.4.2-2
Wet O-ring with water and avoid any
twisting when introducing it.
Figure 9.4.2-3
Insert retainer.
Figure 9.4.2-4
Screw nut onto neck and tighten.
(Set torque as per LGS 3325 ).
Torque wrench
with socket
attachment
Clamping block
