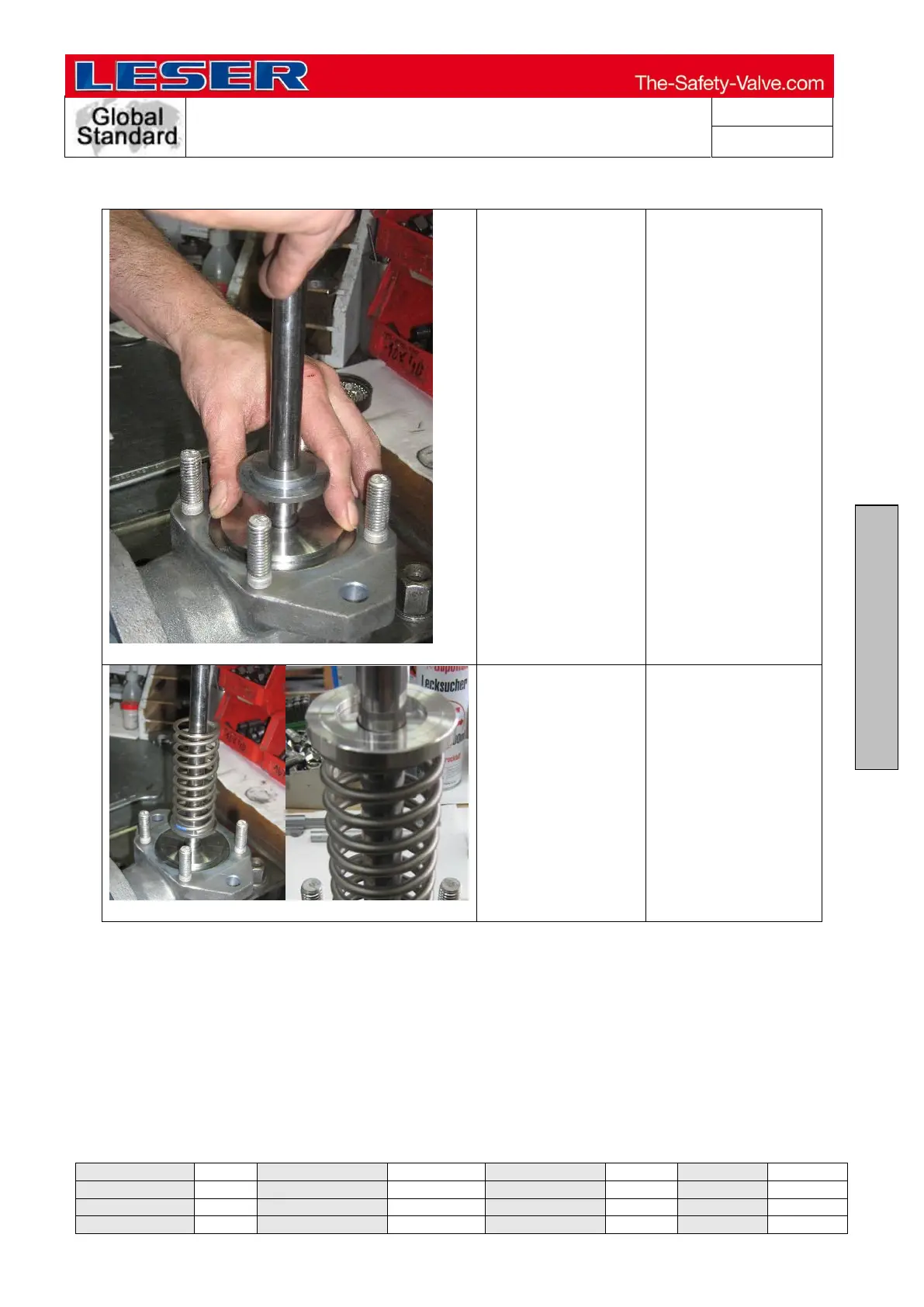

9.5.5 Insert construction group (without bellow)
Insert disc-/spindle
construction group
carefully into the
body.
While doing so
press the guide
washer down and
lift the spindle
slightly up, so that
the disc does not
land.
Put the disc with the
spindle carefully on
the seat.
Fixture according to
fixture catalogue
Put the spring and
the upper spring
disk on the lower
spring disk.
