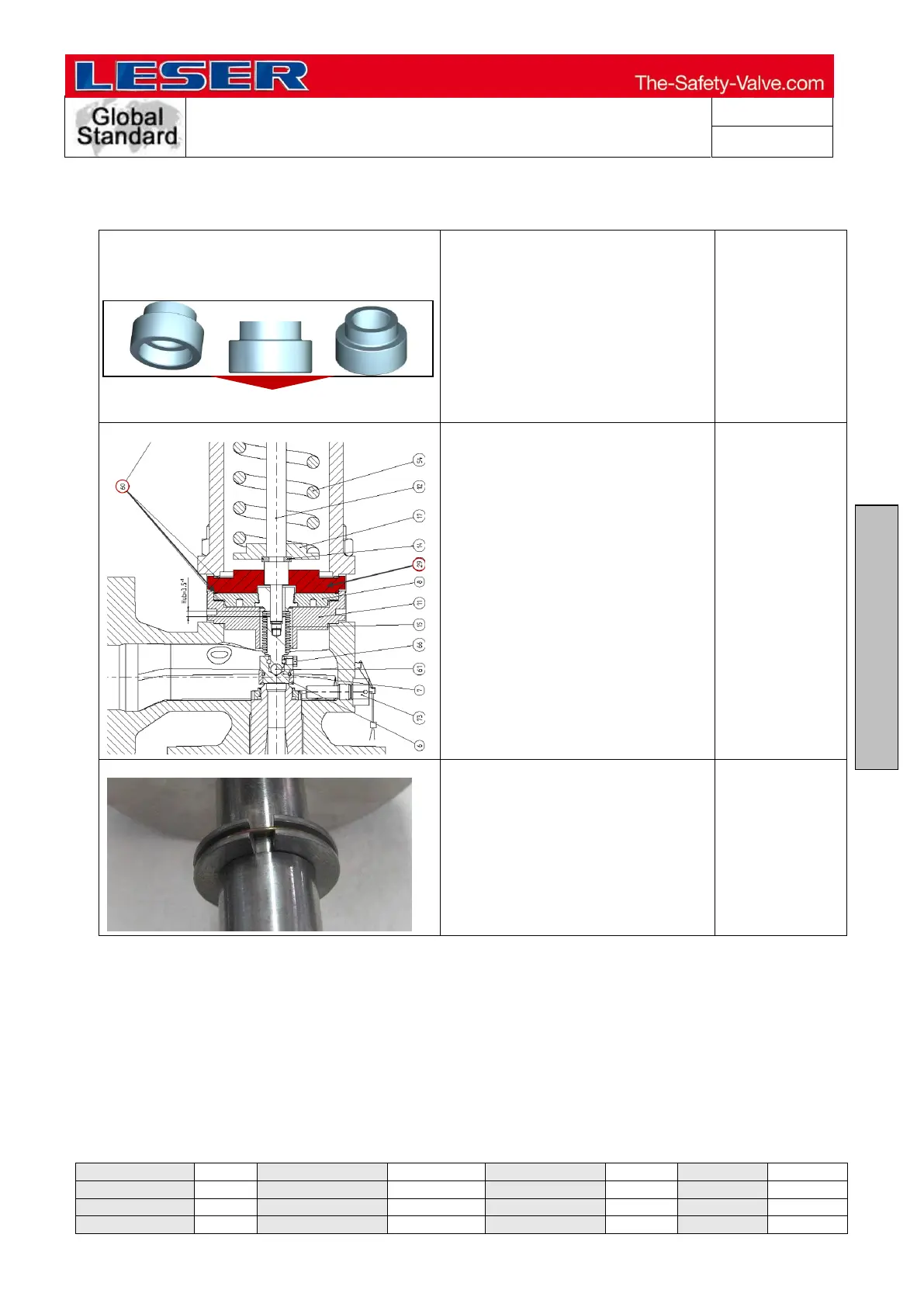

9.5.4 Assembly spindle/disc-construction group (with stainless steel bellow and
balanced piston)
Operate the assembly of the
stainless steel bellow like in
chapter: 9.5.2. up to incl. Figure
0-8. Then assembly balanced
piston as follows.
(a) Put the sealing ring (pos.60)
on the guide washer.
(b) Afterwards push the balanced
piston above the spindle. (pos.29)
Put half-washer into the recess
and secure with a retaining clip.
Balanced piston
