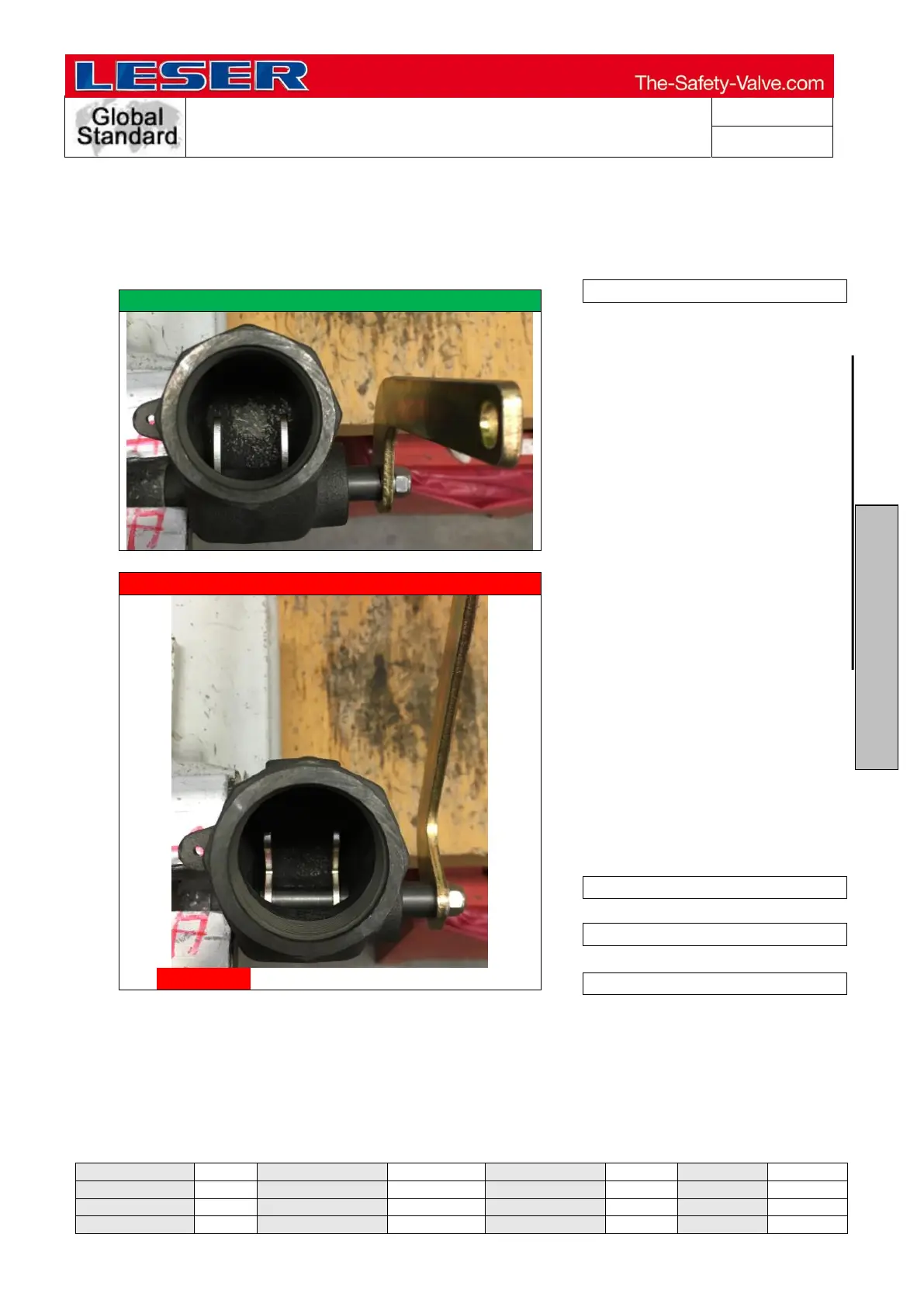

9.11.4 Test of the lifting fork position
right
wrong
Lüftegabel assembled wrong (position)
1. working steps
 Before the assembly of the
already assembled H4 cap
the position of the lifting fork
within the cap has to be
checked to guarantee that
the cap is working properly.
 With it take a look from
the thread side into the
cap and check the
position of the lifting
fork.
2. aid
 k.A.
3. tool
 k.A.
4. device
 k.A.
