Leser 526 API - 9.11.5 Assembly of Lever H4

LESER Global Standard
Assembly instructions for type 526 API
LGS 4104
Page 36/45
disclosure cat.:
II
proofread:
SSt
published date:
06/14/18
effect. date:
05/18
author:
Nieh
released by:
KUW
replaces:
initial
status:
Published
resp. depart.:
IE
date of release:
06/14/18
revision No.:
2
doc. type:
LGS
change rep. No.:
NA
retention period:
10
protected

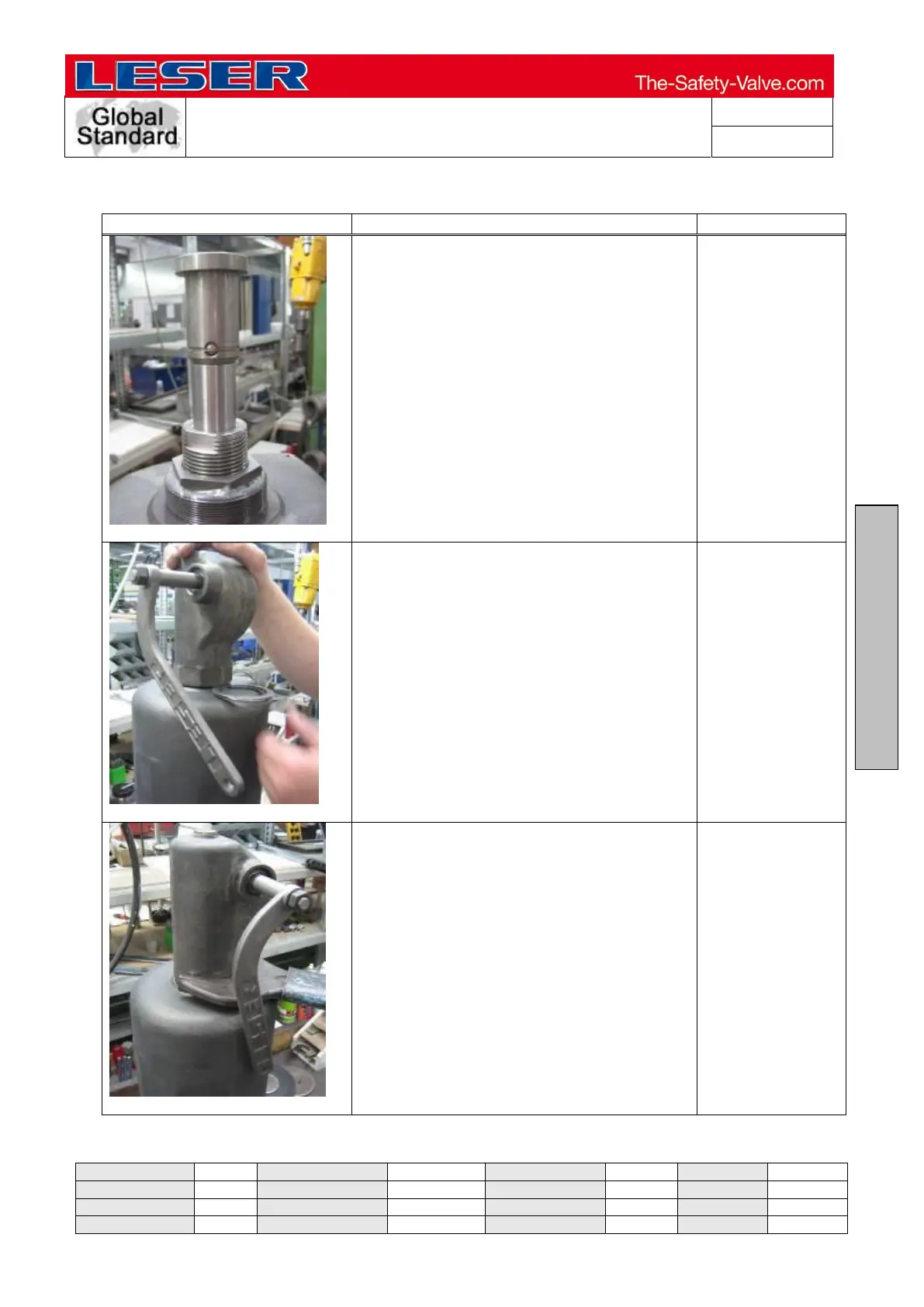

9.11.5 Assembly of lever H4
Illustration
Description
Aids / Tools
Figure 9.11.5-1
Put the spindle cap onto the spindle and
secure with a pin and retaining clip.
Figure 9.11.5-2
Align the lever with sealing rings so that
the lever arm is parallel to the outlet.
Figure 9.11.5-3
Grease the lever and sealing rings. Put
them on and tighten with an open-end
spanner (torque as per LGS 3323).
Open-end
spanner
Torque wrench
