LESER Global Standard
Assembly instructions for type 526 API
LGS 4104
Page 44/45
disclosure cat.:
II
proofread:
SSt
published date:
06/14/18
effect. date:
05/18
author:
Nieh
released by:
KUW
replaces:
initial
status:
Published
resp. depart.:
IE
date of release:
06/14/18
revision No.:
2
doc. type:
LGS
change rep. No.:
NA
retention period:
10
protected
Illustration
Description
Aids / Tools

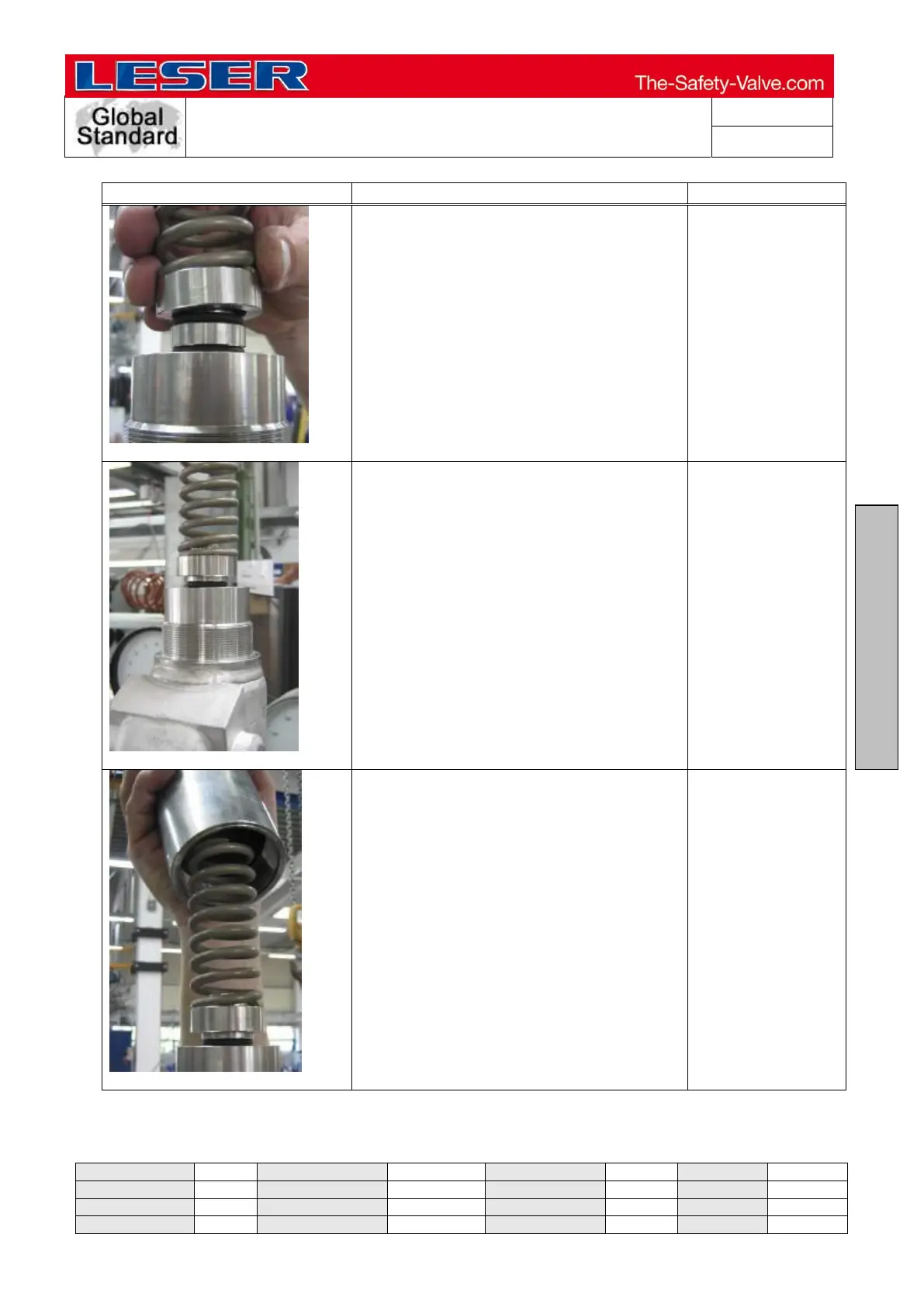

Figure 9.14.2-4
Put the first O-ring - counter ring - second
O-ring - support sleeve - spring - cap onto
the lever one after the other.
Figure 9.14.2-5
Figure 9.14.2-6
Grease, screw on and tighten the thread
and sealing lip of the cap (torque as per
LGS 3323).
Halocarbon
(OI-56 S / 60H)
Open-end
spanner
