Leuze electronic BPS 300i 82

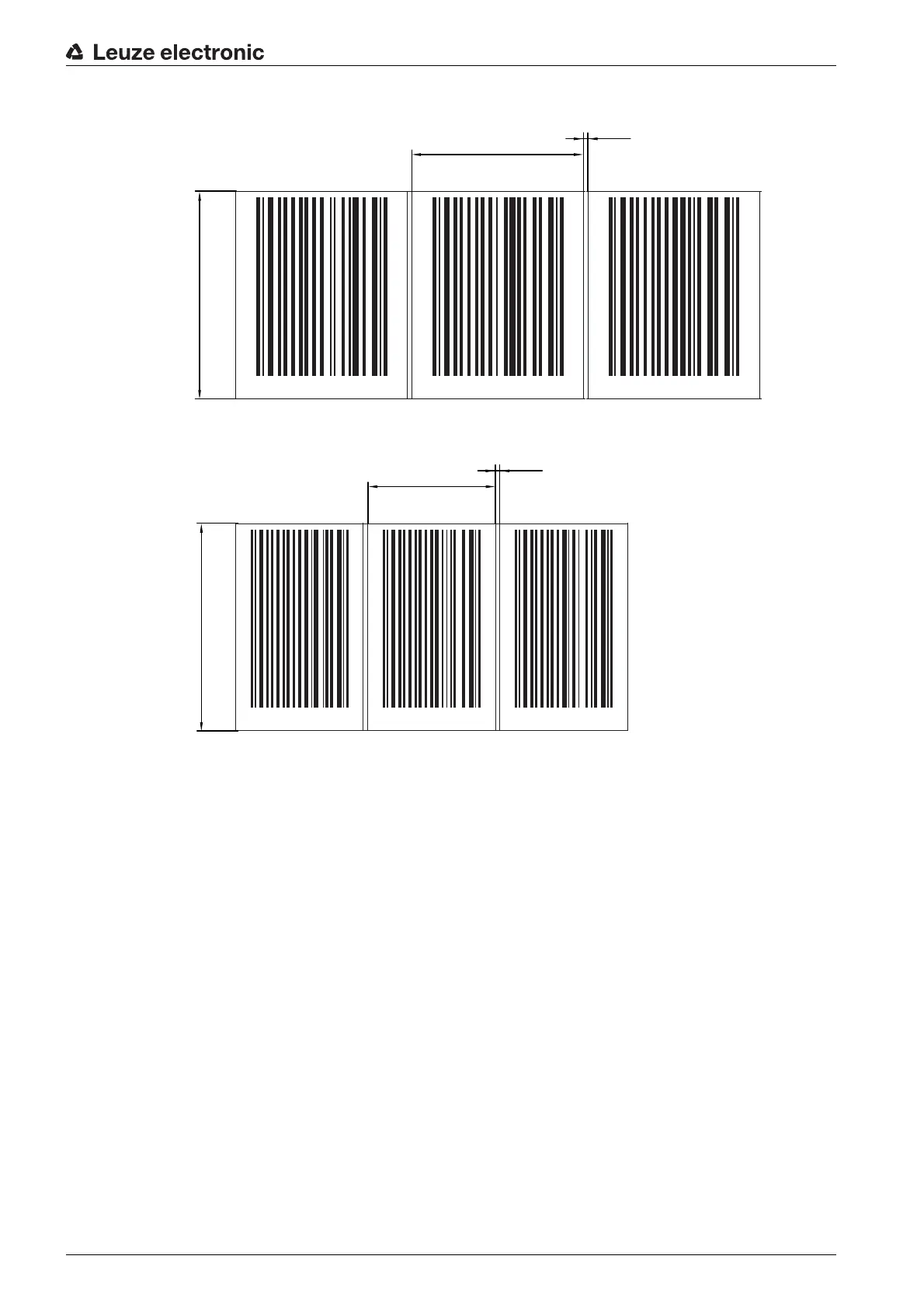

13.5 Dimensioned drawing bar code tape
all dimensions in mm
Figure 13.13:Dimensioned drawing bar code tape BCB with 40 mm grid
all dimensions in mm
Figure 13.14:Dimensioned drawing bar code tape BCB8 with 30 mm grid
000040 000044 000048
38,72
47 ±0,2
1,28
BCB8
BCB8
BCB8
000018 000021 000024
28,72
47 ±0,2
1,28
