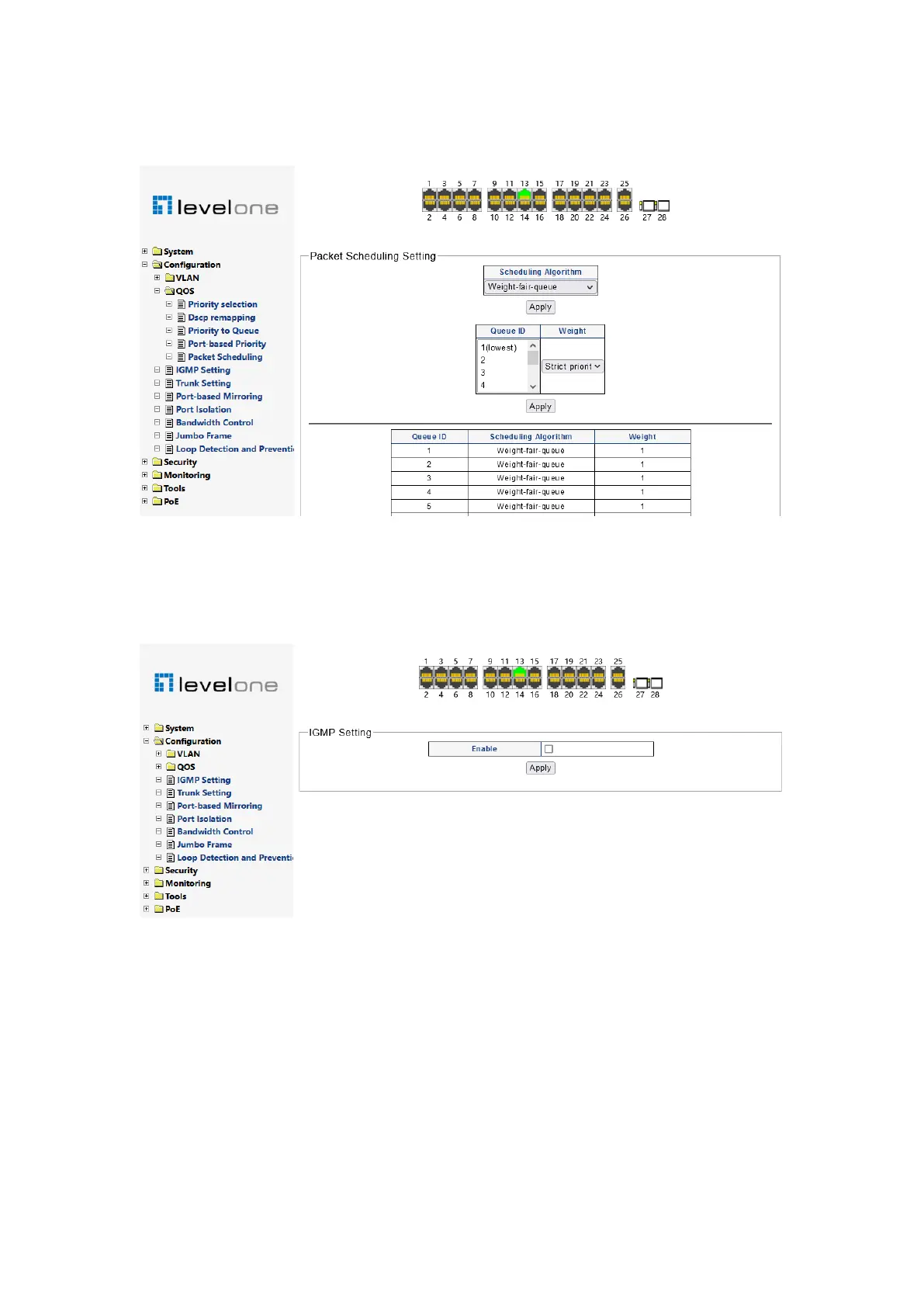

5. Packet Scheduling
On the queue scheduling page, you can select the scheduling policy and corresponding
priority in the queue priority to define the weight value. (weight value min 1 max 15)"
IGMP Setting
Figure 0-15
After IGMP setting is enabled, the multicast message is only forwarded to the
corresponding member port. For non member ports, the data message of the multicast
group will not be forwarded, and the unknown multicast message will be discarded"
When IGMP function is not enabled, group broadcast messages will be broadcast and
forwarded to all ports"
Trunk Setting
Specifies the Ports to which Trunk Group ID.
