Security
MAC Address
1. Static MAC

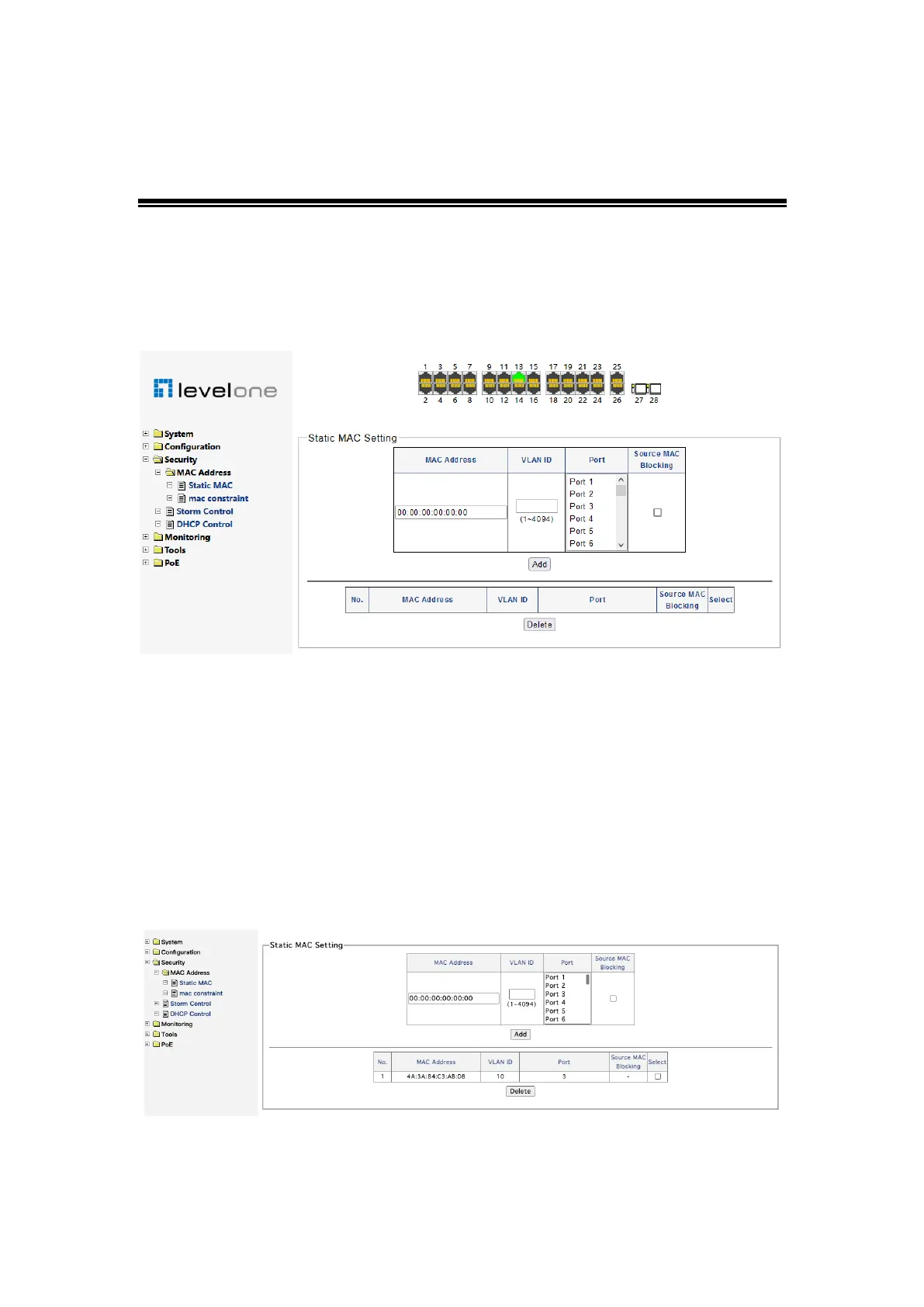

Figure 0-25
The static MAC function can bind or block the specified MAC on the specified port and
VLAN"
MAC Address
!
Controlled MAC address pair"
VLAN ID
!
Active VLAN ID (integer between 1-4094)"
Port
!
Active port (if not selected, it will take effect for all ports)"
Source MAC blocking
!
Controlled mode: if checked, the MAC address will be blocked
accordingly. If unchecked, the MAC address will be bound"
Example: as shown in Figure 3-27, this configuration example binds MAC address 4A: 3A:
84: C3: ab: D8 to port 3 and VLAN 10. At this time, if the device is connected to other ports
or VLANs, it will not be able to communicate"
Figure 0-26
Example
!
As shown in Figure 3-28, the configuration content is similar to figure 3-27, but
the source MAC blocking is checked. At this time, the device cannot communicate when it
