port of all object ports to ensure normal communication with superior equipment"

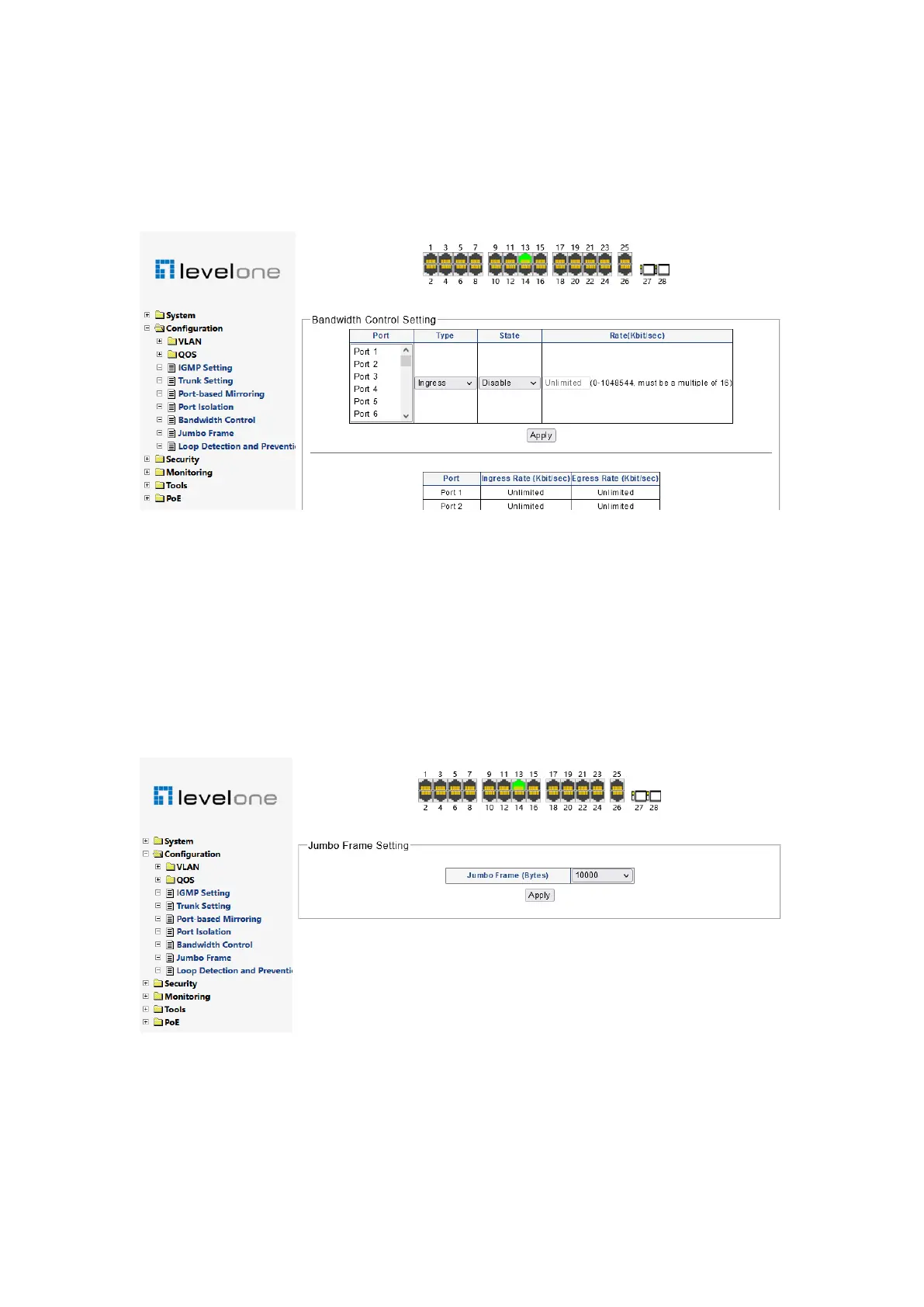

Bandwidth Control
Figure 0-23
The bandwidth control function can limit the maximum rate of the specified port and
direction, and the minimum control granularity is 16kbps"
Port
!
Set object port"
Direction
!
Receive or send direction"
Status
!
Enable or disable the bandwidth control function of the object port"
Speed rate
!
Limit the maximum rate.The rate value must be an integer multiple of 16"
Jumbo Frame
Figure 0-24
Jumbo frames refers to Ethernet frames whose payload exceeds 1500 bytes limited by
IEEE 802.3 standard. The minimum setting value of this series of switches is 1522 bytes
and the maximum setting value is 10000 bytes"
