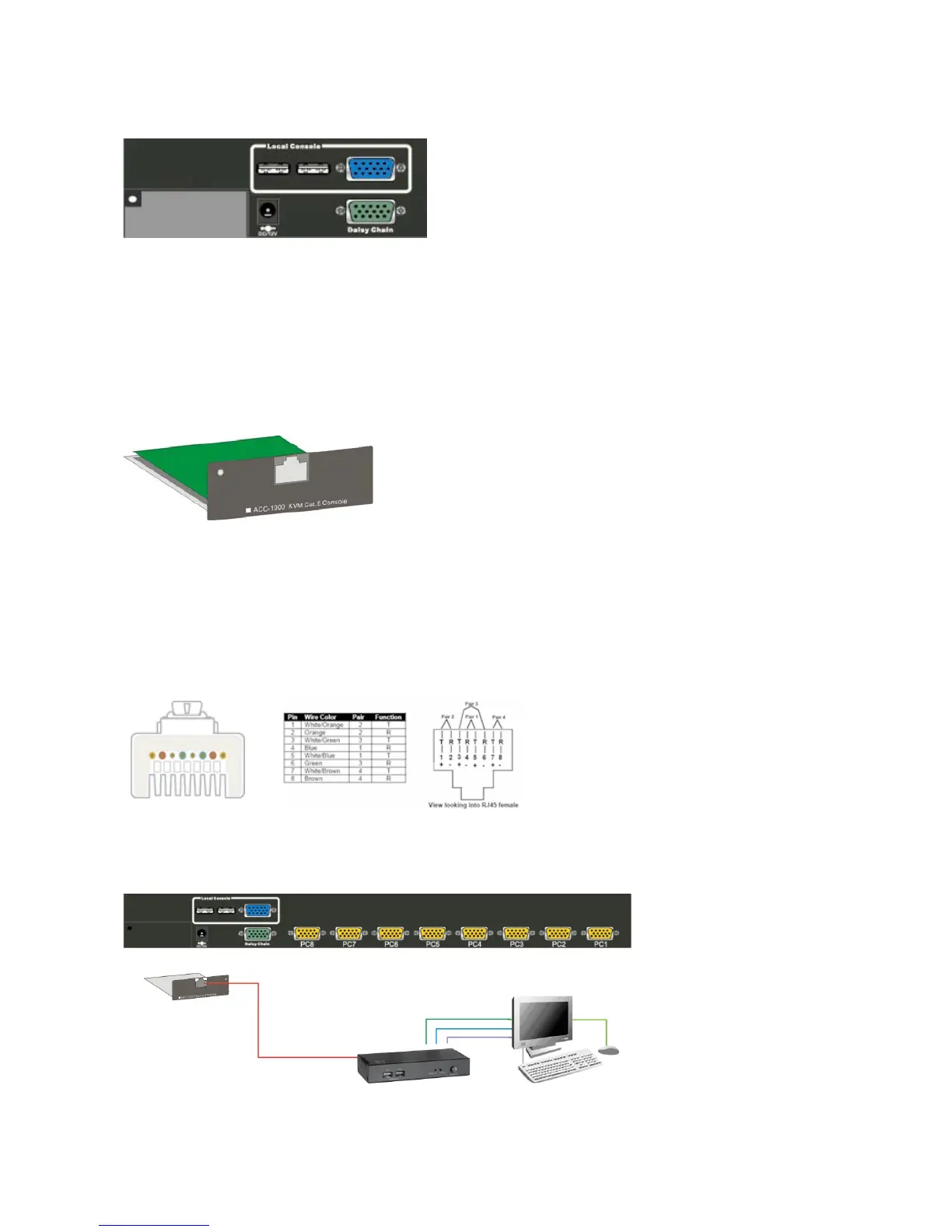

Expansion Slot
The Expansion Slot extends functionality with optional module add-on, such as the
ACC-1000 KVM Cat.5 Console module which allows IT people to manage the system
away from server room for up to 300 meters.
ACC-1000 KVM Cat.5 Console (optional)
To be able remote control through Cat.5 Console, use requires the standard Cat.5 cable
and KVM-9007 KVM Cat.5 Receiver. Cable quality can cause image display differently,
ask your local distributor for help if you experience troubles.
Cat.5/5E/6 Straight Through UTP/STP Cable
8P8C
Connection Diagram
ACC-1000
KVM-9007
