Operate and Display
The BANK button:
If you want to view the KVM switch on next bank, please press “BANK“ button. The bank
LED will be changed from bank 1 to the maximum daisy chain level and then to press
“BANK“ push button once back to the bank 1.
Bank 1 Bank 2 Bank 3 MAX. BANK
Display Example

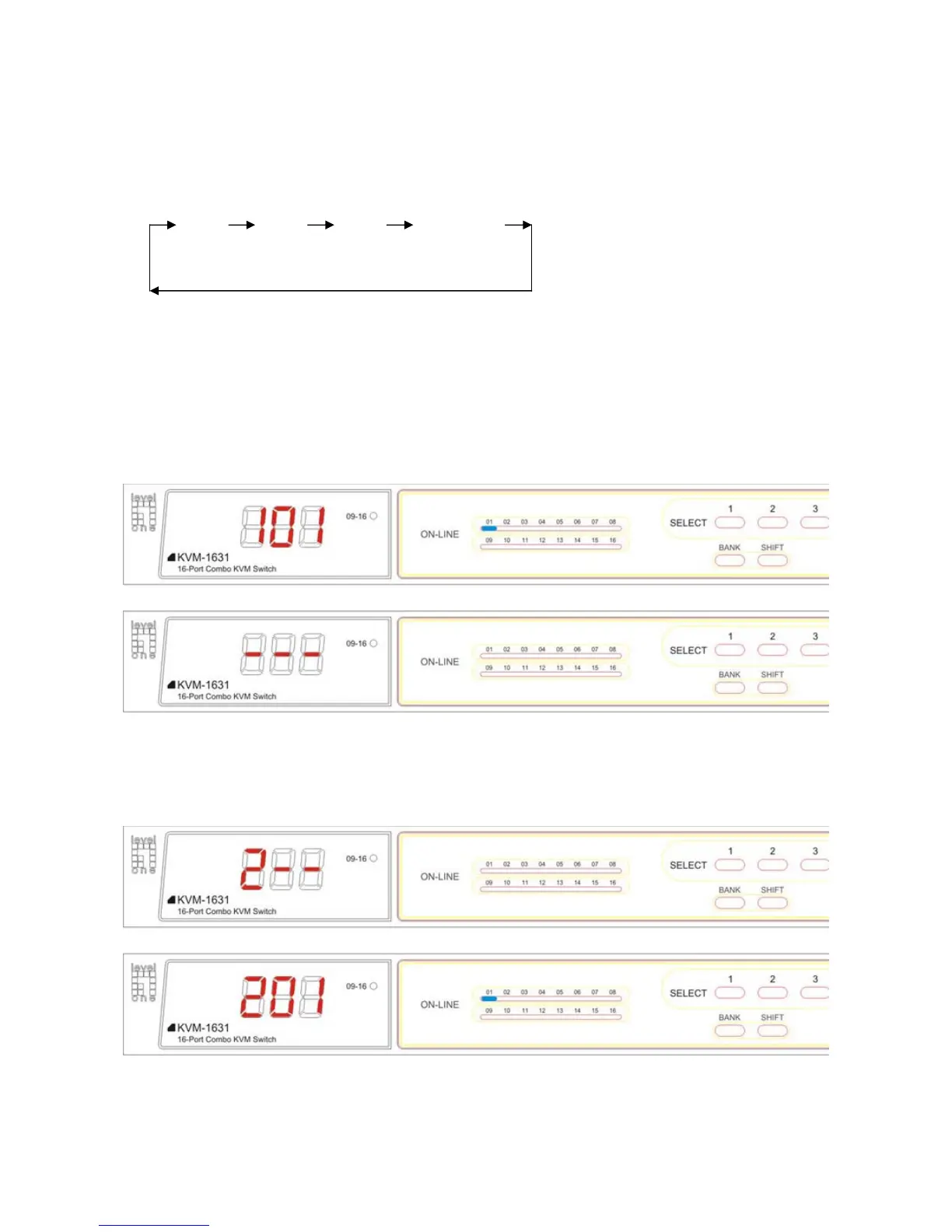

If multiple KVM switches are cascading, user can control all the devices through BANK1
(Master) only. The following diagram shows the BANK1, Port1 is in control right now, and
SELECT button is switching between PCs/Servers within BANK1.
Bank1 (Master)
Bank2 (Slave)
After press BANK button to switch to BANK2, the following diagram shows the BANK2,
Port1 is in control right now, and SELECT button is switching between PCs/Servers within
BANK2.
Bank1 (Master)
Bank2 (Slave)
To Next Page
