100

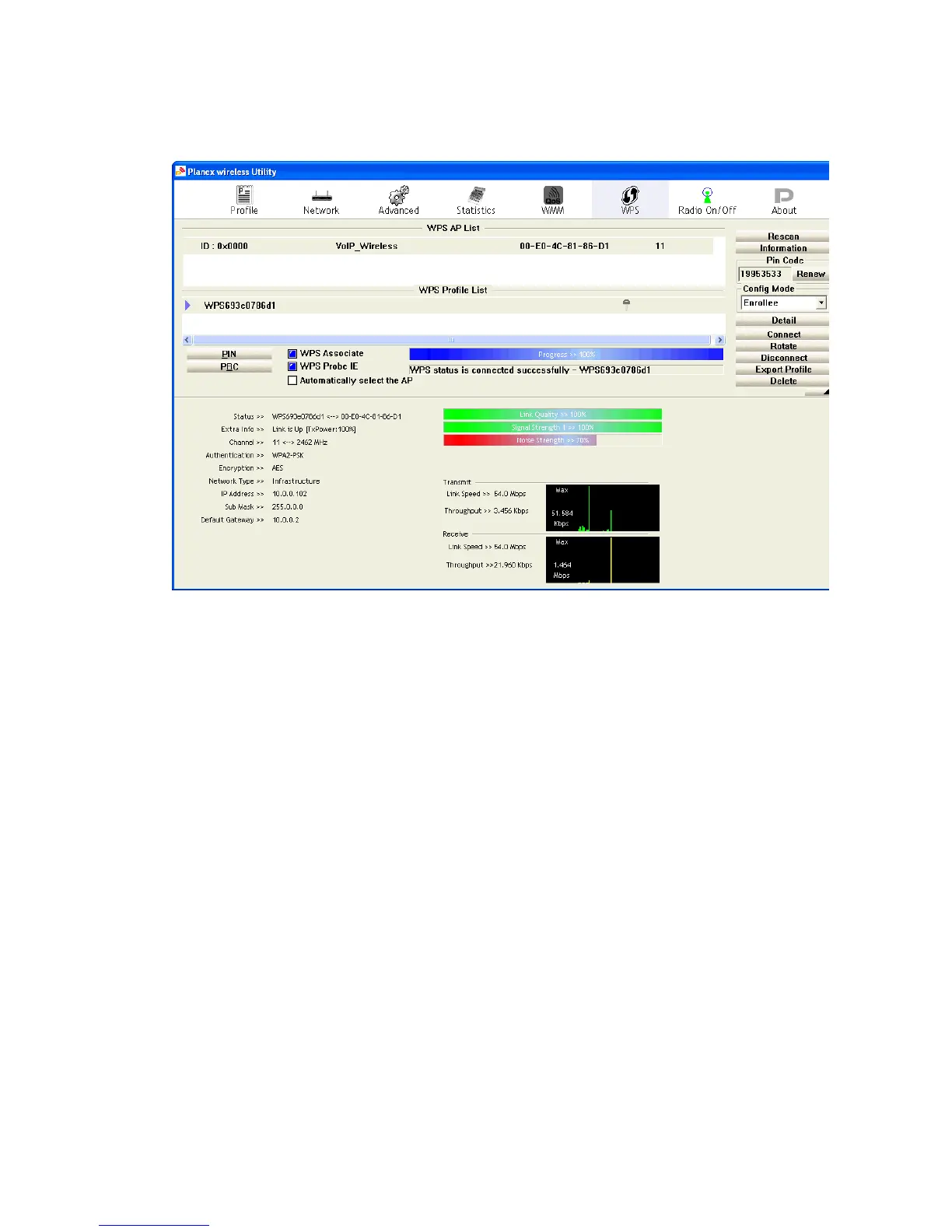

7. If the device PIN is correct and the WPS handshake is

successfully done on the station side, User’s Wi-Fi

Protected status will be shown as below.
