LED meanings & activations
Front Panel
The front panel contains lights called Light Emitting Diodes
(LEDs) that indicate the status of the unit.
* Actual Front Panel and ANTENNA may vary depending on model.

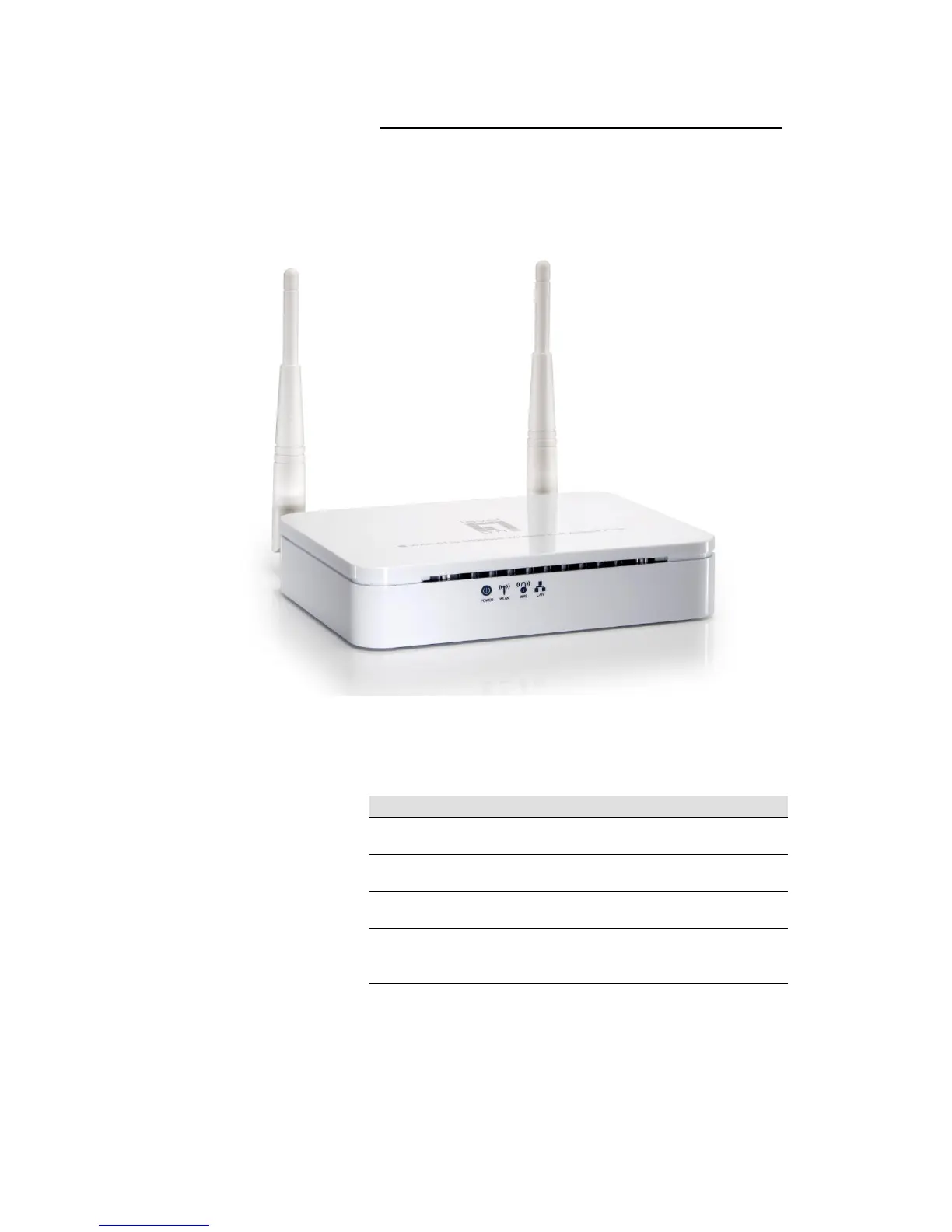

Figure 1: Front Panel and LEDs
Label
Color
Function
POWER
green
On: device is powered on
Off: device is powered off
WLAN
green
On: WLAN link established and active
Blink: Valid Wireless packet being transferred
WPS
green
Off: WPS link isn’t established and active
Blink: Valid WPS packet being transferred
LAN
green
On: LAN link established and active
Off: No LAN link
Blink: Valid Ethernet packet being transferred
