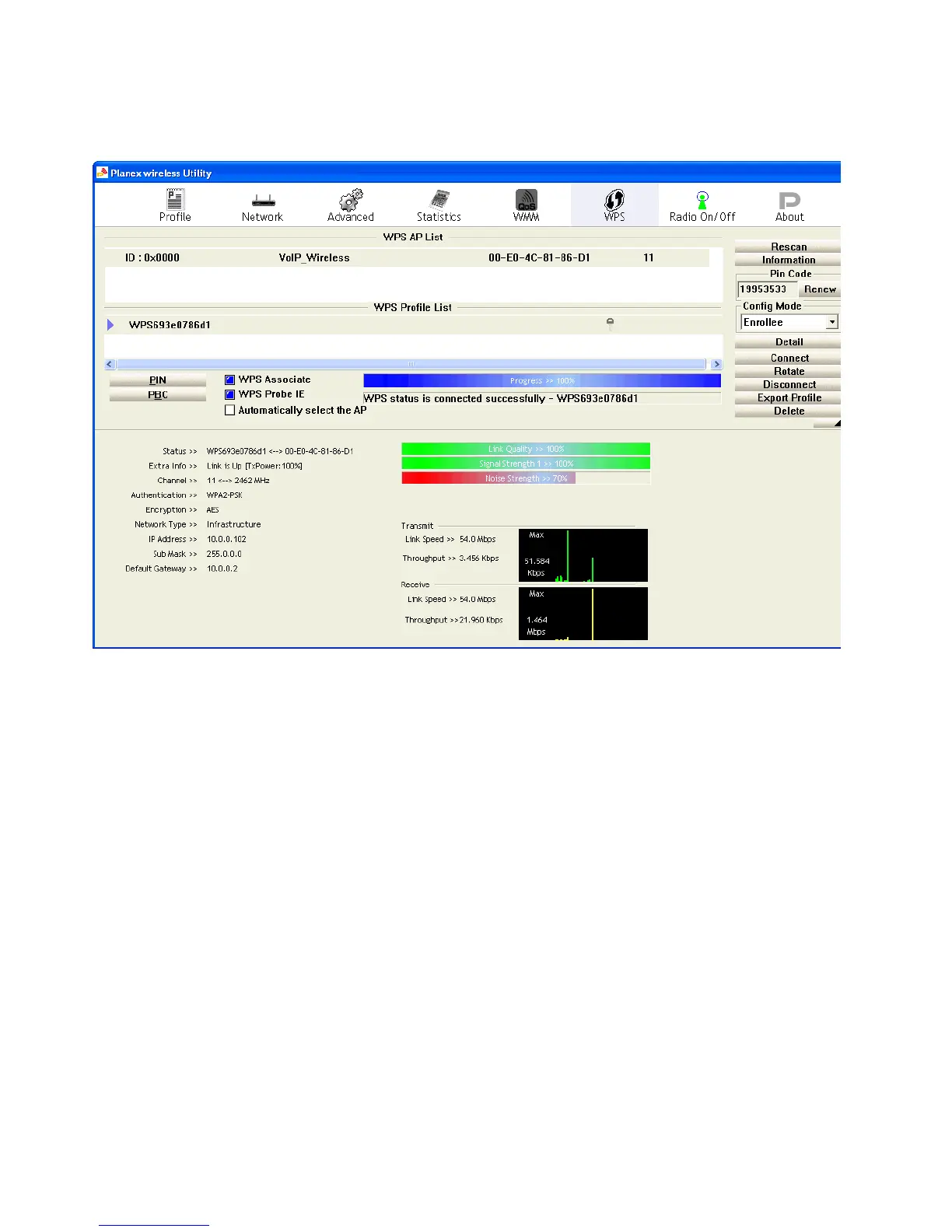

6. If the device PCB and the WPS handshake is successfully

done on the station side, User’s Wi-Fi Protected status will

be shown as below.
