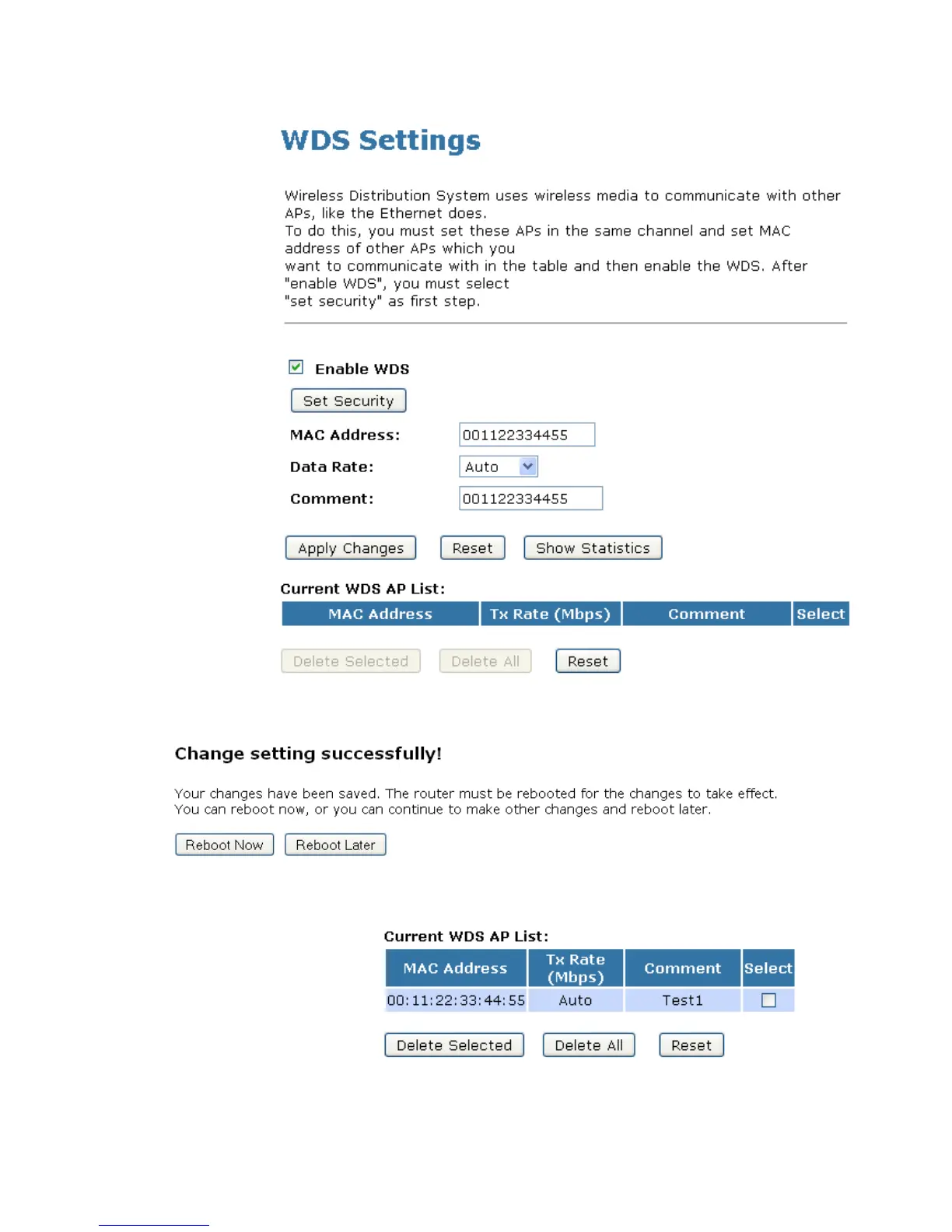

17. Click Apply Changes button.

18. Change setting successfully! Click on Reboot Now button to

confirm.

19. The MAC Address that you created has been added in the

Current Access Control List.
