LevelOne WBR-6022 - Network Settings Check for Configuration

13

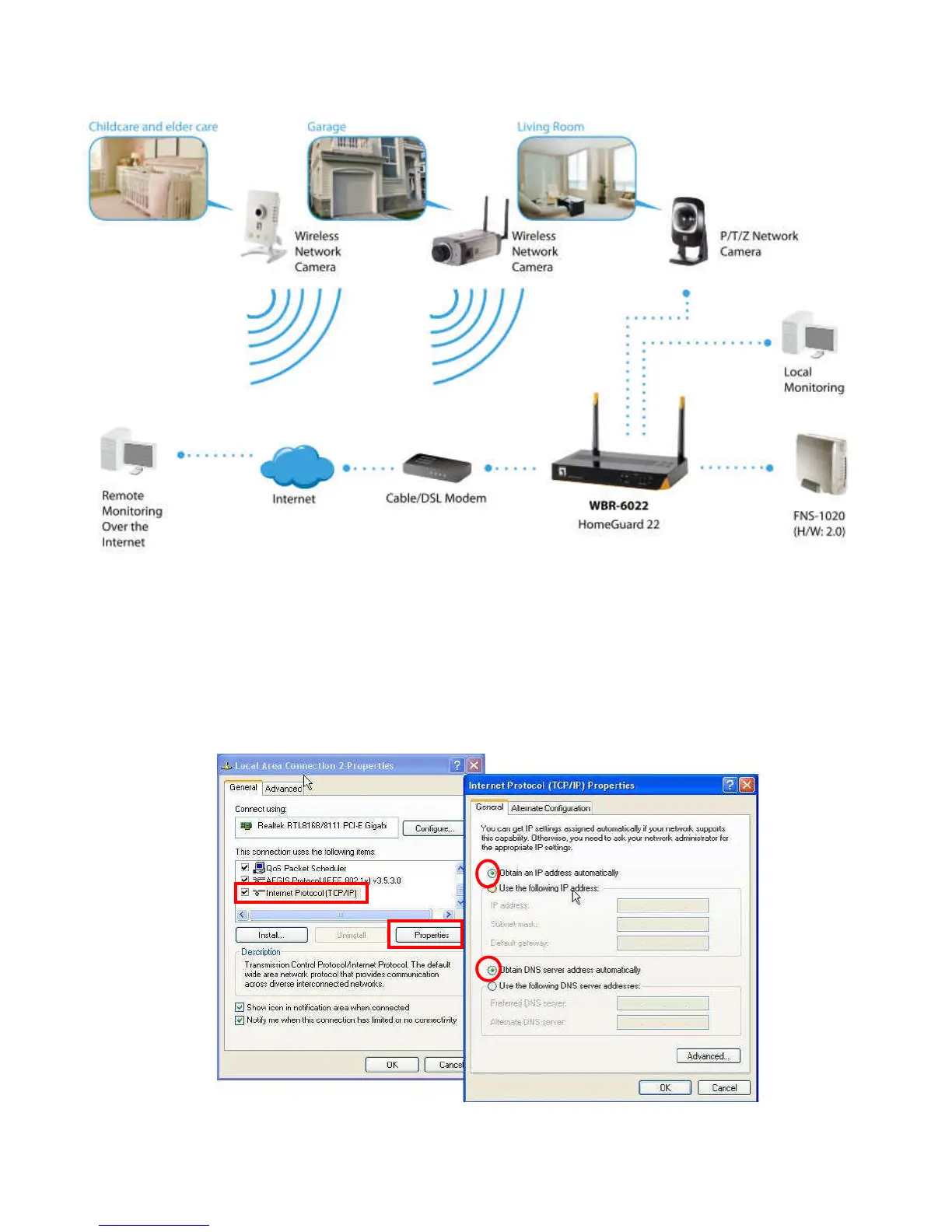

F. Plug in the IP Camera & NAS for the Surveillance environment
Please refer the below Diagram
3.2.2. Check Your Network Settings
A. Please make sure your PC can get IP address automatically so the WBR-6022 can communicate
with your PC during configuration.
• Select “Control Panel” > “Network Connections”.
• Right click the “Local Area Connection” and choose “Properties”.
• Select the TCP/IP protocol for your network card.
• Click on the Properties button. You should then see the following screen and make sure you
have selected “Obtain IP address automatically”
B. Reboot computer to make sure you have received the IP address correctly form the Router.
