5 Operation
5.1 System Operation with LPC-200.1 (Stand-Alone Version)
5.1.1 State Diagram of LPC-200.1
The controller LPC-200.1 allows stand-alone operation with manual speed setting () as
well as extended operation with analog speed setting (Analog Control Mode). Figure 29 shows the state
diagram which can be controlled with the manual buttons and the signals on the  
connector. The operation mode can be choosen by pressing the  and  buttons simultaneously
during 5 seconds. For the standard firmware default setting ex factory is . Additionally
the motor temperature can be checked (see temperature monitoring for ATEX / IECEx maintenance under
Section 5.3.2).
Button Control Mode Analog Control Mode
Power On
OFF
ButtonControl
ON
(Speed Mode)
ButtonControl
Ref.-Speed set
to stored value*
OFF
AnalogControl
ON
(Speed Mode)
AnalogControl
Ref.-Speed set by
analog input
R
Reset Button
Ref. Speed
UP
Ref. Speed
DOWN
ButtonControl saved
in EEPROM
AnalogControl saved
in EEPROM
!
Error
!
Error
Enable
input = 0V
Enable
input = 0V
Enable
input = 24V
Press up
for 2 sec
Press down
for 2 sec
Press up
for 1 sec
Press down
for 1 sec
If Speed
@ 0 RPM
Press both
for 5 sec
Enable
input = 24V
!
Error
!
Error
Press both
for 5 sec
Press both
for 1 sec
Motor
Temperature
Returns to previously
active mode after
displaying temperature
twice
System Error
ButtonControl
System Error
AnalogControl
R
Reset Button
Press both
for 5 sec

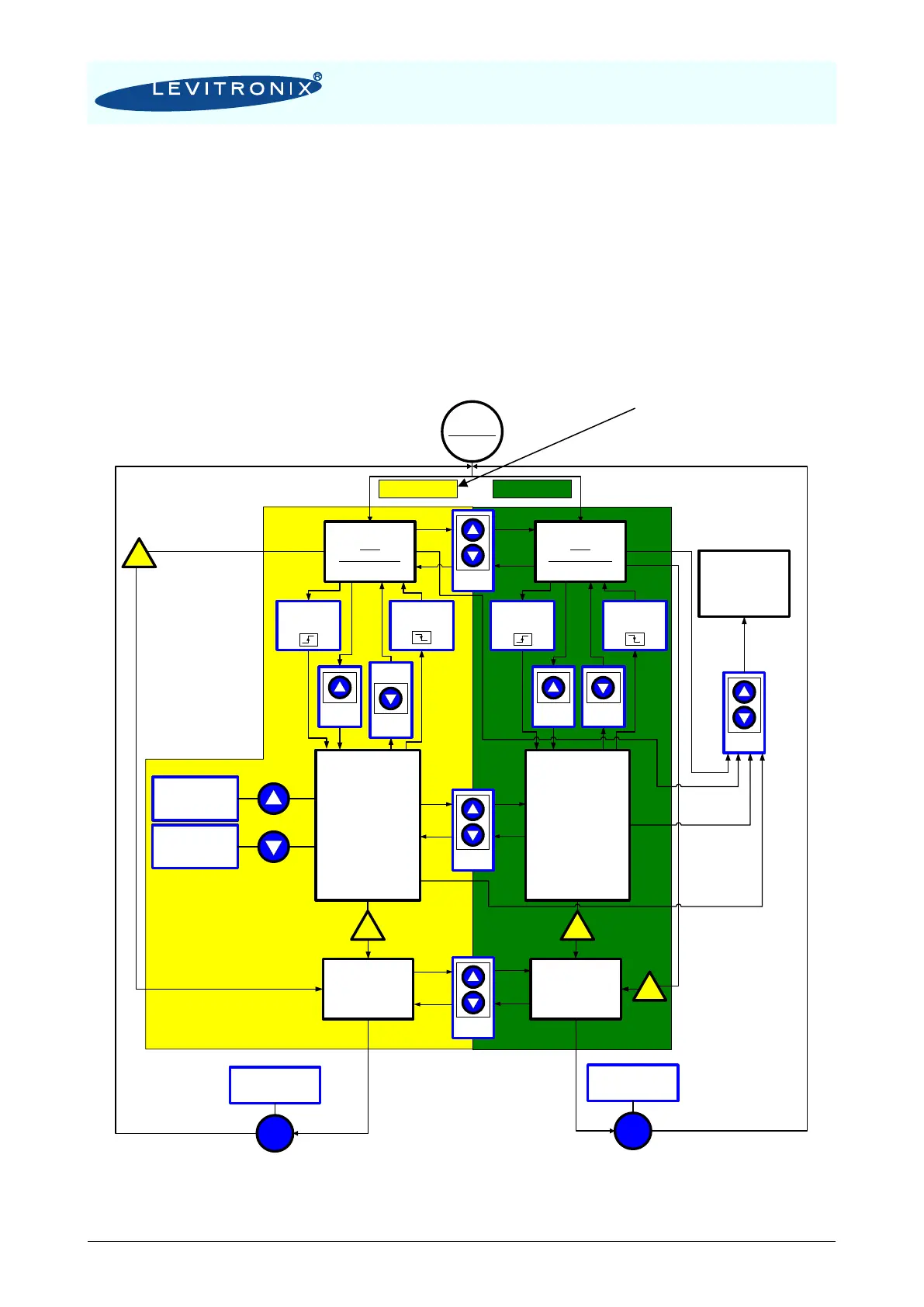

Figure 29: State diagram for operation with LPC-200.1 controller
Note 1: Description is for standard firmware.
Note 2: For Revision < 02 temperature monitoring of motor is not implemented.
Note 3: For other configurations refer to alternate firmware documentation.
Factory default setting
