User Manual for BPS-200
www.levitronix.com
PL-4012-00, Rev07, DCO# 20-144

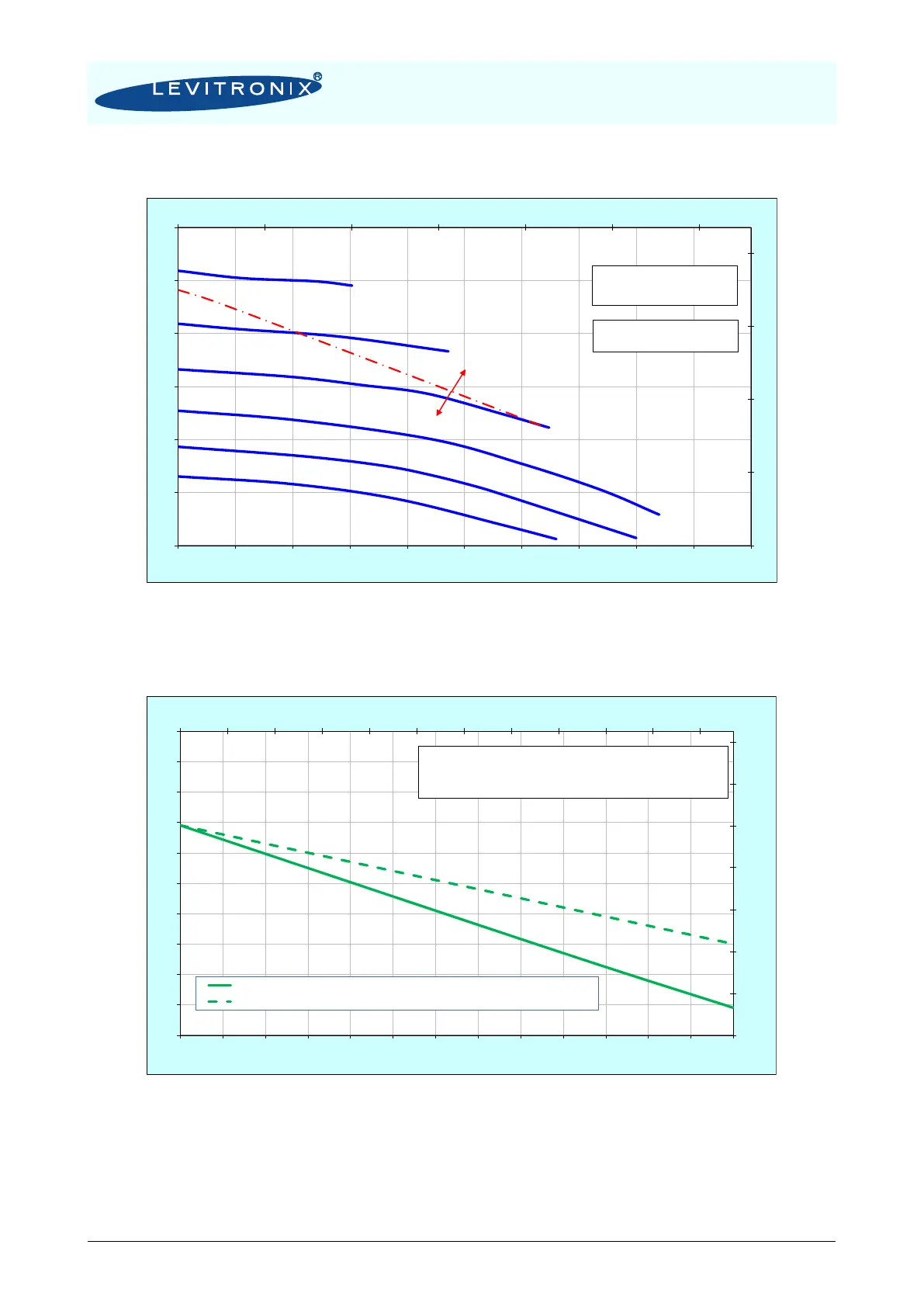

2.4 Pressure-Flow Curves
Figure 6: Pressure/flow rate curves
(Measured with pump head LPP-200.1. Representative for LPP-200.11)
2.5 Maximum Static Pressure for Pump Heads
Figure 7: Specification for maximum static pressure of pump head LPP-200.1/11
- Pressure limits only valid for pump head mounted on motor.
- Pump head LPP-200.1/11 comes delivered with PVDF mounting screws.
- Stainless steel screws with PTFE coating can be ordered separately according to Table 4.
It is recommended to use stainless steel (SS) pump head screws, which are available as an accessory (see
Table 4), at higher liquid temperature or when hammering effects (dynamic static pressure peaks) are
expected, which might result in longer term deformation effects of the standard PVDF screws.
0
10
20
30
40
0.0 1.0 2.0 3.0 4.0 5.0 6.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
0.0 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0 22.5 25.0
[psi]
[gallons/min]
[bar]
[liters/min
Specific gravity = 1 g/cm
Supply Voltage: 24 V DC
Speed Limit for 24V = 9500 rpm
Speed Limit for 48V = 10000 rpm
0
20
40
60
80
100
120
140
77 87 97 107 117 127 137 147 157 167 177 187
0
1
2
3
4
5
6
7
8
9
10
25 30 35 40 45 50 55 60 65 70 75 80 85 90
[psi]
[°F]
[bar]
Liquid Temperature in [°C]
Max. Static Pressure for LPP-200.1 (PTFE Housing with PVDF Pumphead Screws)
Max. Static Pressure for LPP-200.1 (PTFE Housing with Option SS Screws)
Safety Factor = 1.3 (according to EN12162)
Limitation: Given by deformation. Burst pressure is significantly higher
Ambient Temp = 25 C
Note: Pressure limit only valid for pumphead mounted on motor
