4.2.2 Operation with LEVIFLOW
®
Configuration Software
For debugging, data collection and configuration of the flowmeter system the LEVIFLOW
®
Configuration
Software is available at Levitronix
®
. Contact Levitronix
®
for a sample of the configuration software and the
according manual (Levitronix

Doc.# PL-4501-00). An approved USB to RS485 adaptor with the according
connection cable can be ordered according to the information in Table 1.
Note: The LFIF-06 flowmeter needs configuration software version V1.34 or higher.

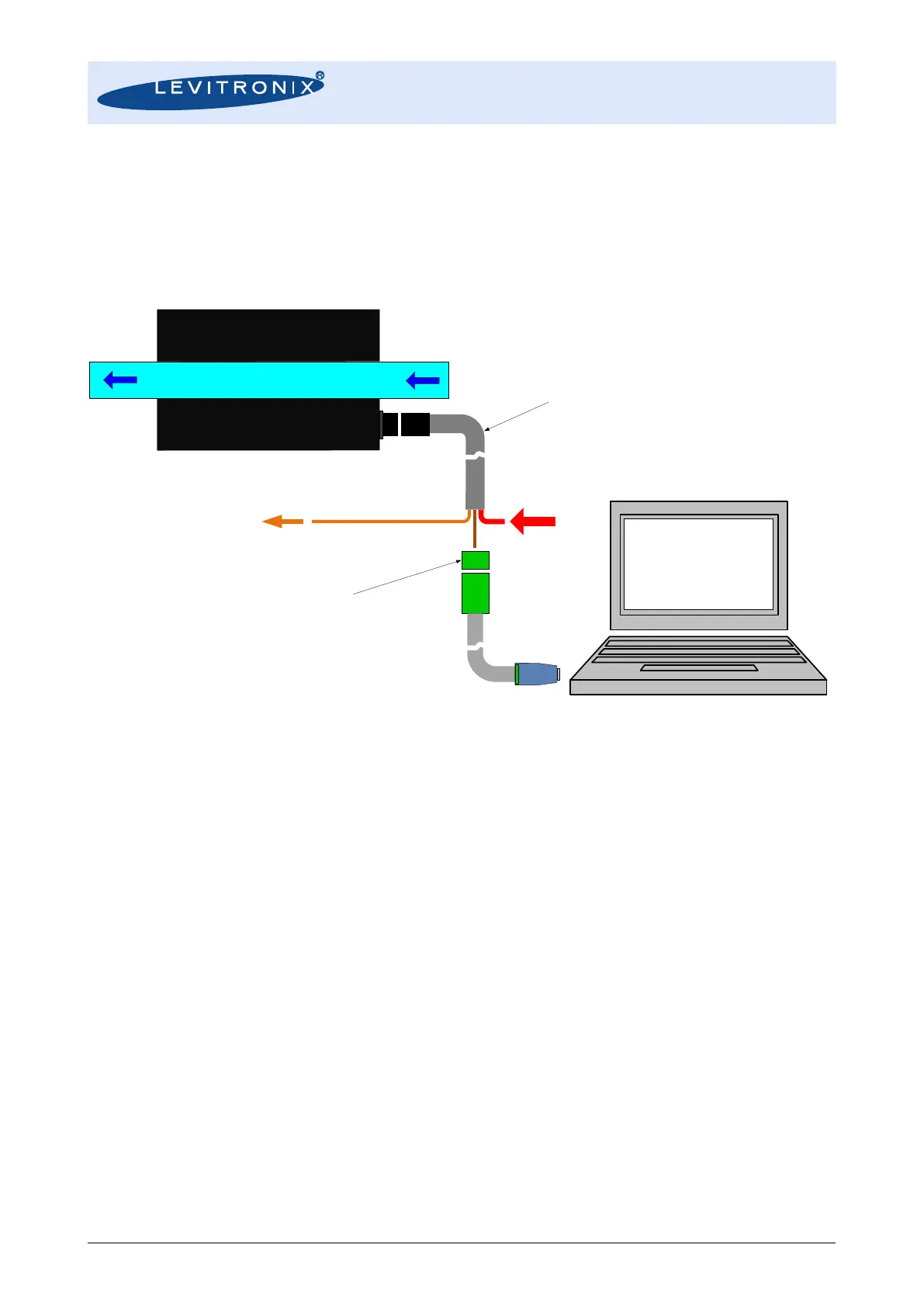

Figure 7: System operation with LEVIFLOW
®
configuration software
5 Inspection and Maintenance
The LEVIFLOW
®
ultrasonic flowmeters do not require special maintenance since there are no moving parts
that can be subjected to wear and tear. However, the following periodical checks are recommended to
ensure smooth and reliable operation:
1. Check for excessive mechanical stress onto the flow sensor body for example caused by
bended piping.
2. Inspect for loosen connections caused by excessive pipe vibrations.
3. Inspect the sensor visually for any deposits, excessive bubbles or foreign materials in the
measuring tube.
Power Supply
24 VDC
Analog and
Digital Outputs
- 1x Analog Output
- 1x Digital Output
LEVIFLOW
®
Configuration Software
System Configuration
Service, Firmware Update
Monitoring
Flow In
Flow Out
LEVIFLOW
®
Integrated Flowsensor LFIF-06
Sensor Cable
(Opten Wire)
Screw type connector for
open-wires connection included in
converter cable package.
USB to RS485
Converter with Cable
Fieldbus
RS485
