User Manual for LEVIFLOW
®
LFIF-06 Flowmeters
www.levitronix.com
PL-4511-00, RevA, DCO# RD
5
2.3 Basic Dimensions of Main Components
2.3.1 Dimensions of Flowmeter

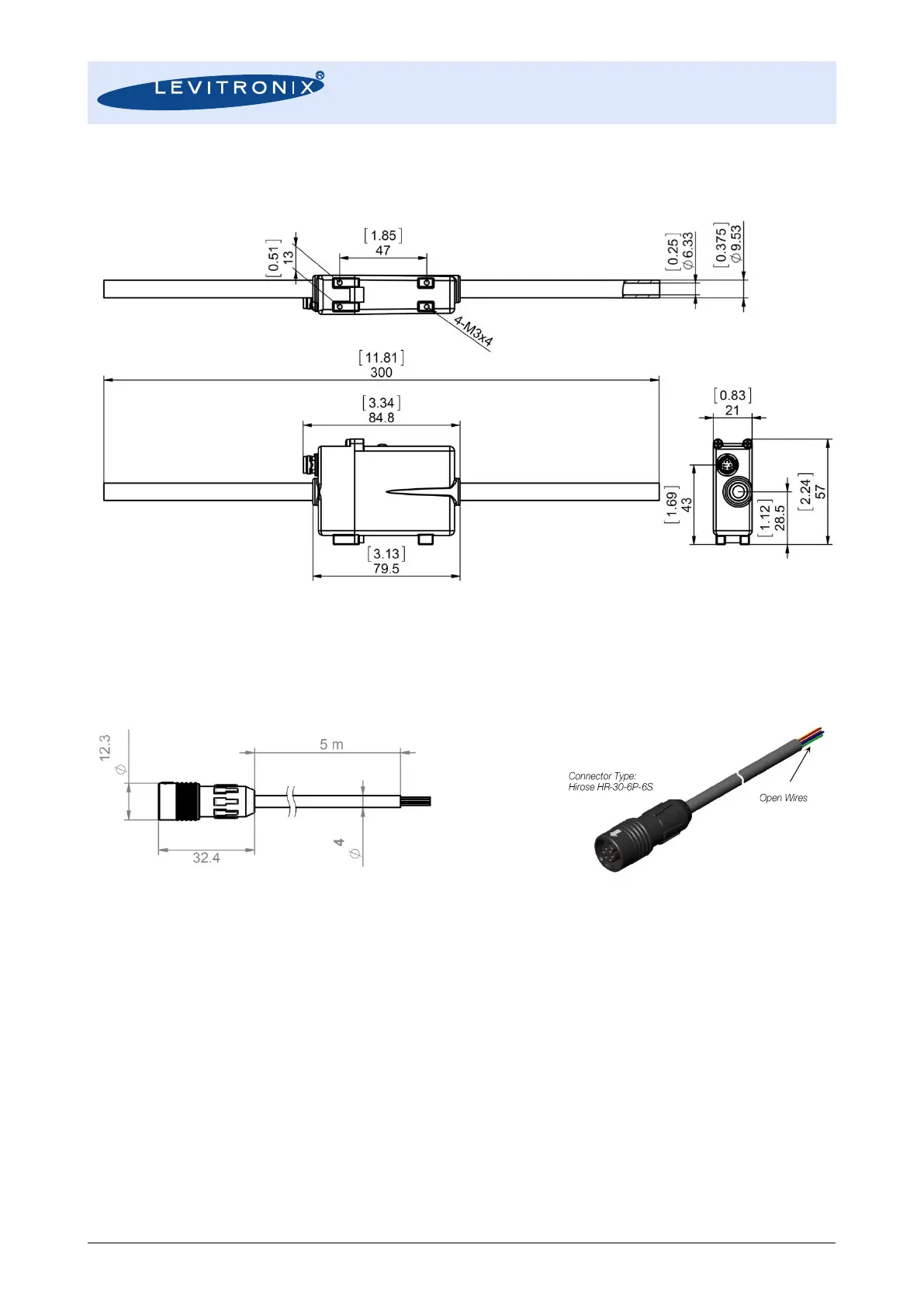

Figure 2: Dimensions of LFIF-06 Flowmeter
2.3.2 Dimensions of Cables
Figure 3: Dimensions of extension cable LFE-E.1/2/3-50
Note: Maximum bending load is 15N.
