2.5 Basic Dimensions of Main Components
2.5.1 Dimensions of Sensors

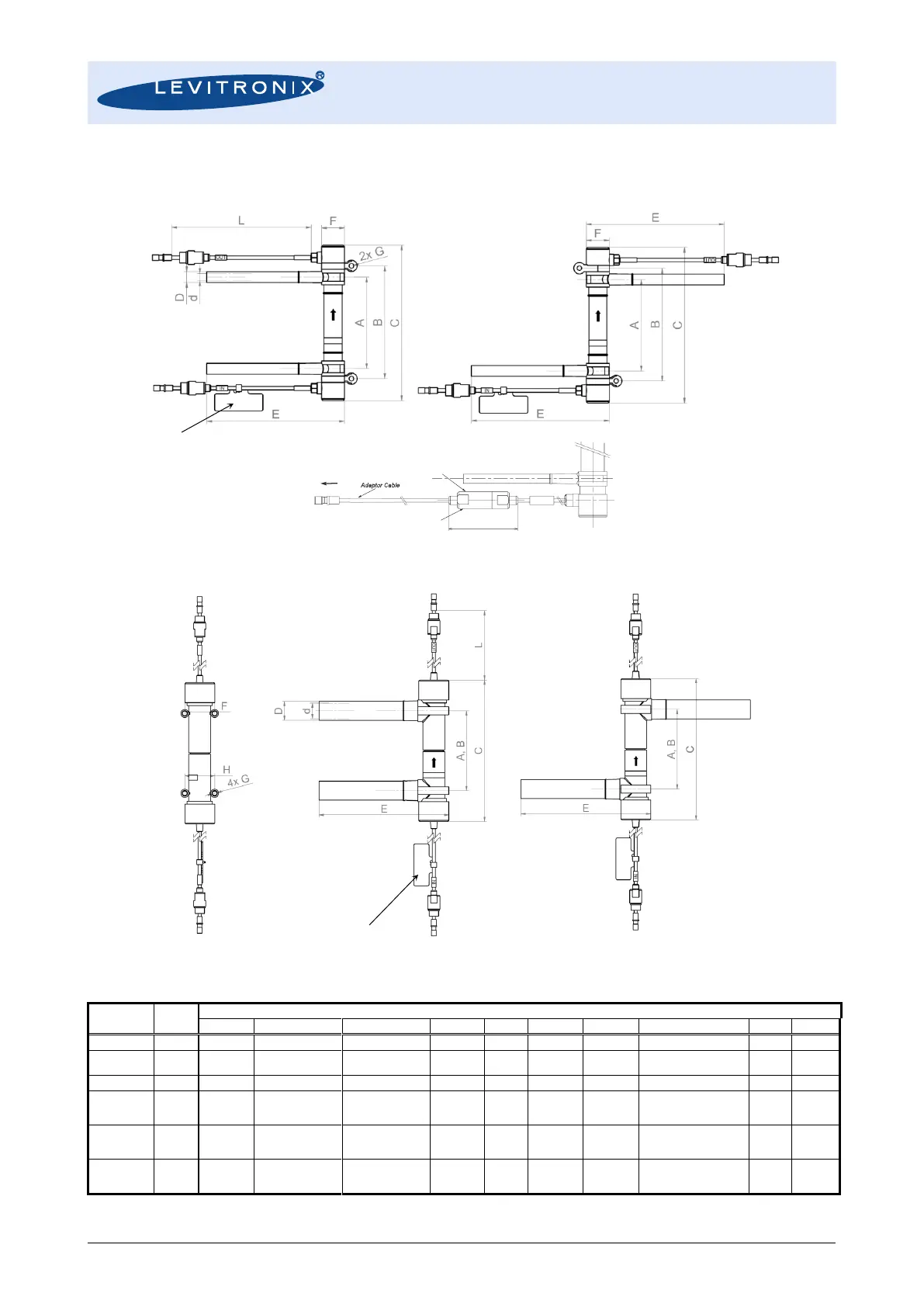

Figure 8: Dimension legend for LFS-04 and LFS-08 sensors
(left: U-shape, right: Z-shape)
Figure 9: Dimension legend for flowsensors LFS-20, LFS-50 and LFS-80
(left: U-shape, right: Z-shape)
Sensor
Type
Tube
Size
Dimensions in [mm]
A
B
C
D
d
E
F
G
H
L
LFS-008
1/4"
80 ±1
96 ±1
134 ±1
6.35
4.35
120
20
4
--
500
LFS-04(H)
3/8”
1/4"
80 ±1
98.5 ±1 (99 ±1)
96 ±1
136 ±1
134 ±1
9.53
6.35
6.33
4.35
120
20
4
--
500
LFS-08(H)
3/8”
80 ±1
98.5 ±1 (100 ±1)
136 ±1 (137 ±1)
9.53
6.33
120
20
4
--
500
LFS-20(H)
1/2"
80 ±1
80 ±1
136 ±1
12.7
9.5
120
(117.7)
30
(
25.4)
M4 x 31 -> U-shape
M4 x 30 -> Z-shape
Max. Torque: 0.3 Nm
25
500
LFS-50(H)
3/4"
80 ±1
80 ±1
141.8 ±1
(143.8 ±1)
19
15.8
130
(127.7)
30
(
25.4)
M5 x 31 -> U-shape
M5 x 30 -> Z-shape
Max. Torque: 0.5 Nm
30
500
LFS-80(H)
1”
80 ±1
80 ±1
148 ±1
25.4
22.2
140
(137.7)
30
(
25.4)
M4 x 34 -> U-shape
M4 x 30 -> Z-shape
Max. Torque: 0.3 Nm
35
500
Table 9: Sensor dimensions
48
IN
To Converter
Female Cover
Extension Cable Concept
with IP-65 Connector Protection
Æ12
Z-Shape
U-Shape
Tag with Calibration Data
Tag with Calibration Data
