Levitronix LEVIFLOW LFS Series User Manual

User Manual for LEVIFLOW
®
LFS Flowmeters
www.levitronix.com
PL-4502-00, Rev11, DCO# 18-107
27
4.3 System Operation with Converter LFC-6C and LFC-6CIO
4.3.1 Standard Operation with PLC Interface (LFC-6CIO only)
Table 12 for the analog outputs and Table 13 for the digital in/outputs shows the standard configuration of
the electrical interface (PLC). For other configurations the LEVIFLOW
®
configuration software has to be used
(according manual is Levitronix

Doc.# PL-4501-00). The hardware configuration is the same as for the PLC
of the LFC-1C. Therefore the same typical setup applies as described in Section 4.2.2.
4.3.2 Operation with RS485
Standard operation with LFC-6C is done with the RS485 interface, which also can be done with the LFC-
6CIO. The according MODBUS protocol can be requested at Levitronix

.
4.3.3 Standalone Operation with Display
The LFC-6C/LFC-6CIO can be used as standalone device, where the flow values can be read on the display.
The channel to be read can be chosen with the channel selection potentiometer on the display (see Figure
17d).
4.3.4 Display Messages
The 6-channel converter LFC-6C/LFC-6CIO displays basically the same messages as the single channel
converter LFC-1C / LFC-1C-F4 (see Table 14).
Additionally LFC-6C/LFC-6CIO shows on the display on the right side six LEDs (see Figure 17d). LEDs
indicate which channel has measurement error active (when channel selection is set to a specific channel 1-
6) or indicates, which flow is shown in display at the moment (when channel selection is set to 0).
4.4 Operation with LEVIFLOW
®
Configuration Software
For debugging, data collection and configuration of the flowmeter system the LEVIFLOW
®
Configuration
Software is available at Levitronix
®
. Contact Levitronix
®
for a sample of the configuration software and the
according manual (Levitronix

Doc.# PL-4501-00). An approved USB to RS485 adaptor with the according
connection cable can be ordered according to the information in Table 3.
Note: The LFS-008 sensor with converter LFC-1C-F4 needs configuration software version V1.18 or higher.
The LFC-6CIO needs configuration software version V1.25 or higher

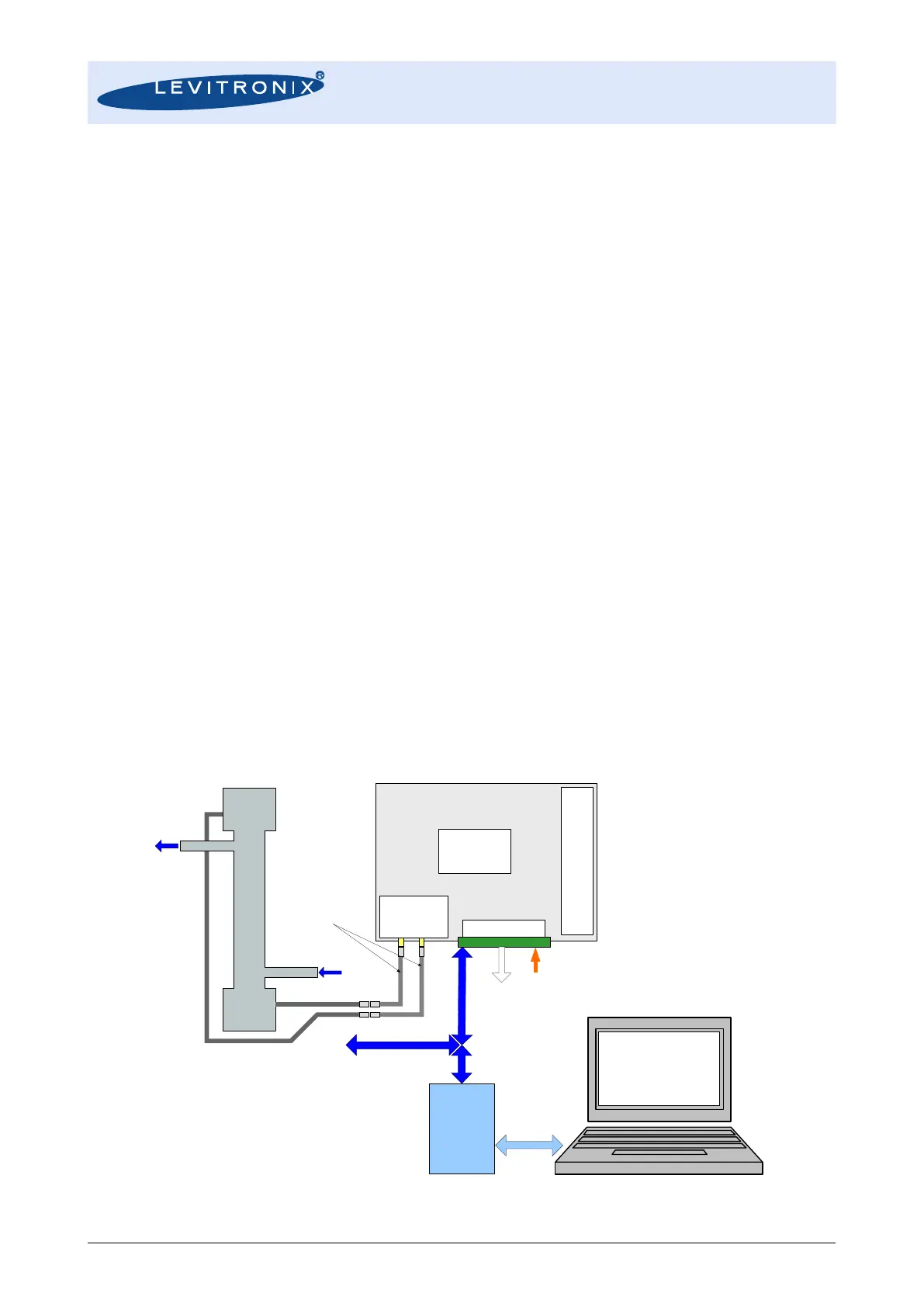

Figure 25: System operation with LEVIFLOW
®
configuration software
Single-Channel Converter LFC-1C
4-Digit Display
Zero Adjustment
Adress Setting for RS485
Piezo Transducers
In-/Output
IN OUT
Electrical Interface
Power Supply: 24 VDC
RS485
(MODBUS)
Analog and
Digital Outputs
- 1x Analog Output
- 2x Digital Outputs
- 1x Digital Input
Flowsensor LFS-xx
Flow In
Flow Out
Extension
Cables LFE
Digital
Signal Processor
DSP
BUS
Converter
RS232/RS485
or
USB/RS485
LEVIFLOW
®
Configuration Software
RS232 or USB
Other RS485
Devices
