Levitronix LEVIFLOW LFS Series - Dimensions of Adaptor Cables

User Manual for LEVIFLOW
®
LFS Flowmeters
www.levitronix.com
PL-4502-00, Rev11, DCO# 18-107
13

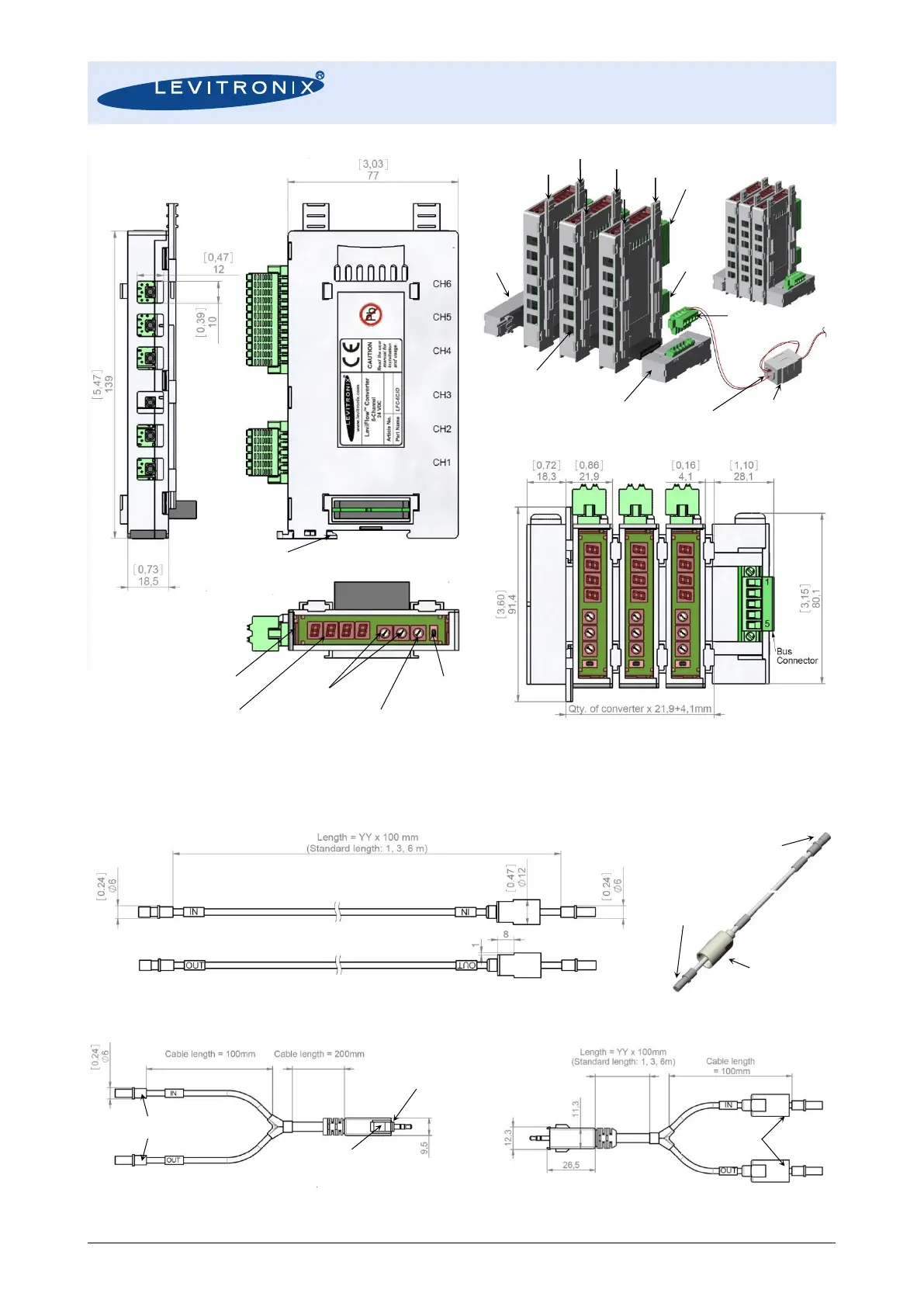

Figure 12: Dimensions, mounting and stacking concept of LFC-6CIO
2.5.3 Dimensions of Adaptor Cables
Figure 13: Adaptor cable LFE-A.1 (delivered pairs for “IN” and “OUT” cable of sensors)
Figure 14: Y-shape adaptor cables LFA-A.1 (left) and LFE-D.1-yy (for LFC-6CIO)
Connector Box
(RS485 and Supply Bus)
Termination Box
(for RS485)
Bus Connector
EMI Ferrite
(for supply)
Connector
Analog Output
Connector
Digital I/O
Sensor Connector
(Bipolar Audio Type)
Maximum distance from
connector box is 15 cm.
Re-Zeroing
Botton
Display Select
Address Setting
for RS485
4 Digit LED
Display
Status LED
Channel #1-6
DIN Rail
Interface
Connector Protection
Male Bushing
SMB Connector
to Converter
SMB Connector
to Sensor
SMB Connectors
to Sensor
Connector to Converter
(With Snap Feature
Snap Feature
PP Cover for
SMB Connector
