Levitronix LEVIFLOW LFSC-i06X User Manual

User Manual for LEVIFLOW
®
LFSC-iX Flowmeters
www.levitronix.com
PL-5001-00, Rev00, DCO# 21-084
4
2 Specifications
2.1 Component Overview
Pos.
Part Name
Article #
Tube: ID x OD
Flow Range
Calibration Sets and Note
1a
LFSC-i06X-002
100-30485
ID = 1/8”= 3.2 mm, OD = 1/4”= 6.4 mm
1 lpm
Water @ 20°C and 37°C
Silicone Pharma compatible with AdvantaSil
®
APHP (High Pressure)
1
C-Flex
® 2
and AdvantaFlex
®
(TPE)
1
Default activated calibration set is Silicone Pharma at 37°C water
temperature.
Other calibrations sets can be chosen with Levitronix
®
Service
Software or with user panel LUI-B.1.
1b
LFSC-i10X-001
100-30477
ID = 1/4”= 6.4 mm, OD = 3/8”= 9.5 mm
4 lpm
1c
LFSC-i16X-001
100-30482
ID = 3/8”=9.5 mm, OD = 5/8”=15.9 mm
20 lpm
1d
LFSC-i19X-001
100-30479
ID = 1/2”=12.7 mm, OD = 3/4”=19.1 mm
50 lpm
1e
LFSC-i25X-001
100-30480
ID = 3/4”=19.1 mm, OD = 1”=25.4 mm
80 lpm
1f
LFSC-i35X-001
100-30481
ID = 1”= 25.4 mm, OD = 13/8”= 34.9 mm
160 lpm
Table 1: Standard flow sensor configurations
Note 1: AdvantaSil
®
and AdvantaFlex
®
are registered trademarks of NewAge Industries. All rights reserved.
Note 2: C-Flex
®
is a registered trademark of Saint Gobain Performance Plastics, 2015. All rights reserved.
Pos.
Component
Article Name
Article #
Features
Special Feature / Description
2
User Panel
LUI-B.1-02
100-30473
Description
Standard Firmware
Monitoring flow, zeroing and tubing set selection. IP65 rating. Basic dimens.:
A4.00
3
Desktop AC/DC
Power Supply
SMI36-24-V HR30
100-40023
Voltage Output / Input
Basic Dimensions
Safety Approvals
Note
24VDC, 36 W / 90 – 264 VAC, 47-63 Hz
78.5 x 66 x 35 mm, cable length = 1.4 m
UL/cUL (60950-1, 62368-1), RCM, CCC, PSE
Included are interchangeable AC blades (adaptors) for global usage (B).
4
Y-Split Cable
ICY-1.1-02 (0.2 m)
190-10448
Materials / Length
Connection In / Out
Main Purpose
PVC jacket with TPE split block / 0.2m for one cable side, 0.2m for split cables.
Circular Hirose type / 2x Circular Hirose type
Split signals to connect flow sensor to power supply and user panel or PC.
5
IPS Cable Signal
6 Wires
ICS-1.1-01 (0.1 m)
ICS-1.1-10 (1 m)
ICS-1.1-30 (3 m)
190-10343
190-10344
190-10345
Cable Material / Wires
Connection In / Out
Main Purpose
PVC jacket / 6x 0.08 mm
2
and shielding
Circular Hirose type / Circular Hirose type
Interconnect cable for LUI-B.1 user panel.
6
IPS Cable Signal
6 Wires
ICS-1.3-50 (5 m)
190-10389
Cable Material / Wires
Connection In / Out
Main Purpose
PVC jacket / 6x 0.08 mm
2
and shielding
Connector with screw type plug for open wire connection / Circular type
Interconnection cable from Fieldbus of Split-Cable to USB/RS485 adaptor.
7
USB to RS485
Adaptor-TR Isolated
YN-485I-TR
100-30392
Structure/Design
USB connector (A) with termination resistor and cable with connector pair (B and C) for
external RS485 wire connection. Magnetically isolated. 2m cable length. Included is a USB
space saver cable (D).
Purpose
Communication over fieldbus of flowmeter with PC
8a
IPS Cable Signal
12 Wires
ICS-2.2-50 (5 m)
190-10446
Cable Material / Wires
Connection In / Out
Main Purpose
PVC jacket / 12x 0.14 mm
2
and shielding
Connector with screw type plug for open wire connection / Circular Hirose type
Cable for OEM configurations.
8b
IPS Cable Signal
12 Wires
ICS-2.4-50 (5 m)
190-10475
Cable Material / Wires
Connection In / Out
Main Purpose
PVC jacket / 12x 0.14 mm
2
and shielding
Connector with screw type plug for open wire connection / Circular Hirose type
Cable for OEM configurations with integrated supply source (A) for current output of analog out.
Table 2: Accessories

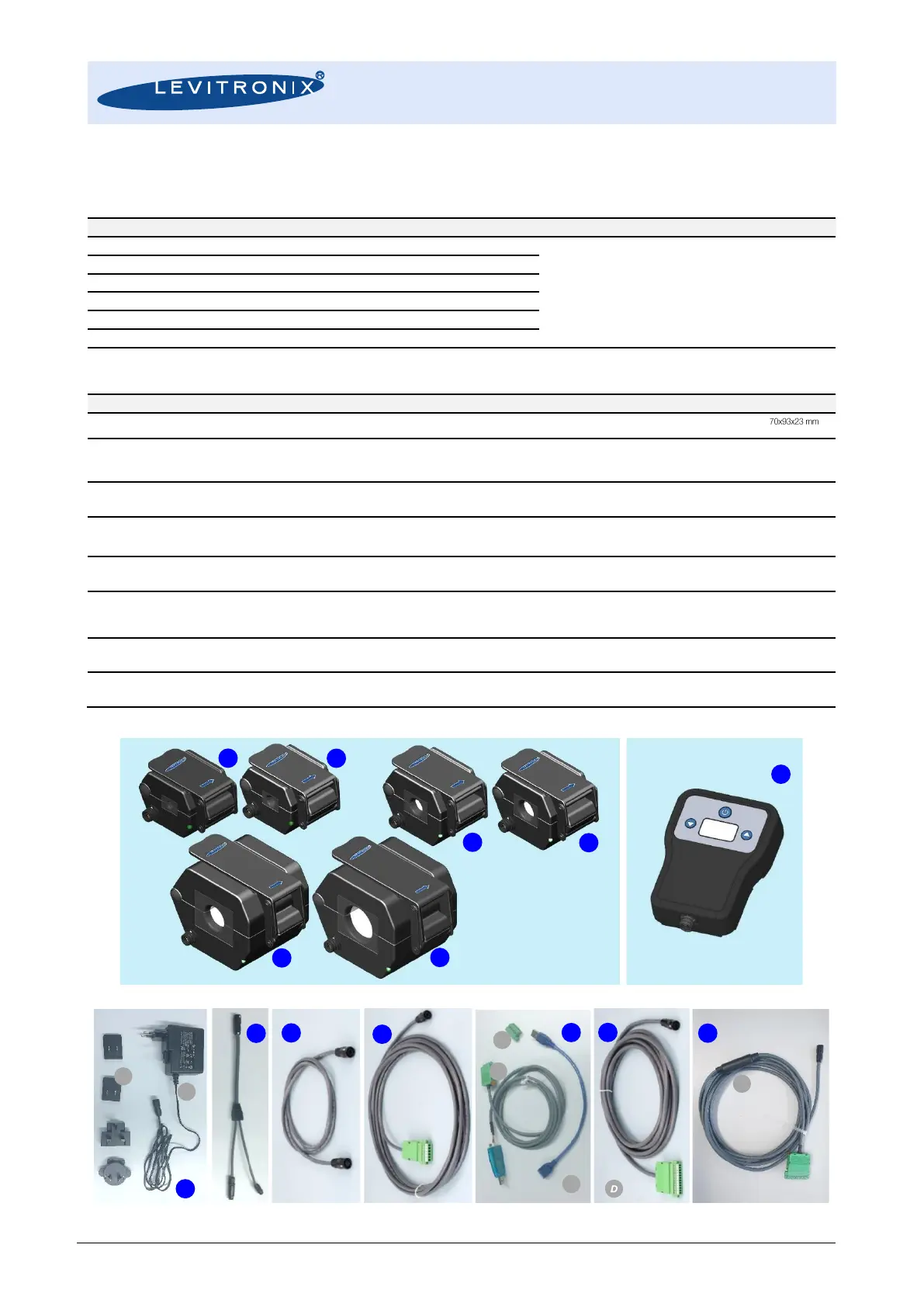

Figure 1: LEVIFLOW
®
flowmeter components
Figure 2: Accessories
1c
1d
1b
1e
1a
1f
2
8a
A
7
B
C
A
B
4
5
6
3
8b
A
