3 Installation
3.1 Preparation

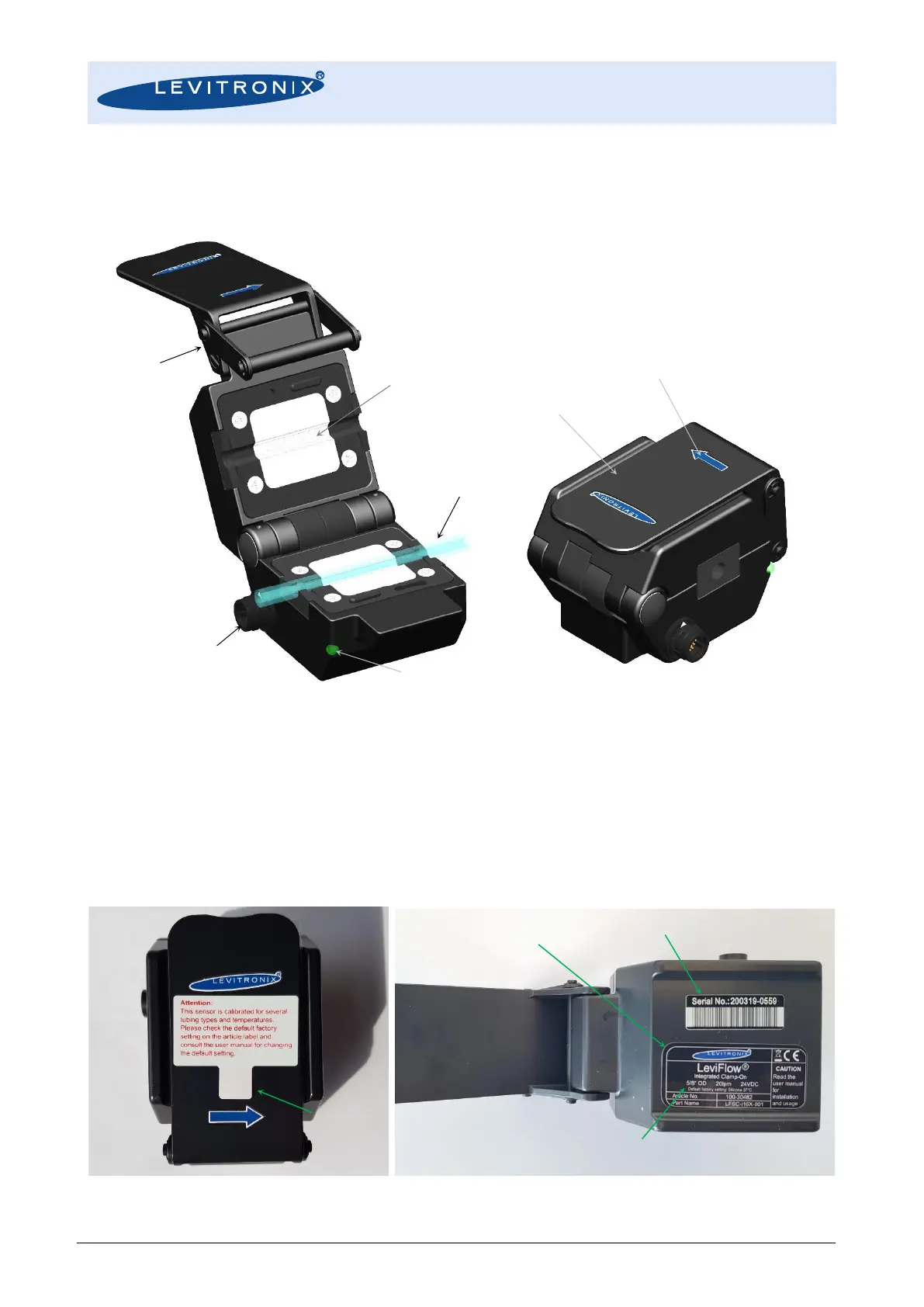

Figure 7: Clamp-on flowmeter LFSC-iX
1. Every sensor comes delivered with a calibration sheet. Check if the S/N on the calibration sheet
corresponds to the S/N of the sensor (see Figure 8).
2. Please store the delivered calibration sheet or its data on a defined storage place in order to be
able to refer to it in case of problems.
3. Assure that the correct calibration set for the tubing and liquid temperature is chosen. The
flowmeters are calibrated for multiple tubing types and liquid temperatures. Please check the
default factory setting on the article label. To switch to another calibration set the Levitronix®
Service Software or the user panel LUI-B.1-02 can be used (see Section 4.2.2).
Figure 8: Labels of flowmeter LFSC-iX
Flexible Tube
Clamp Mechanism
Circular Connector
Transducer Area
Flow Direction
Type Label
(located below the clamp)
Status LED
Type Label
Default calibration setting.
Attention
label can be
removed
here.
Serial Number Label
