14
Figure 2.5
4. Unwrap the new filter and place it into
the housing. Make sure the pull tabs are
facing out. [Figure 2.5]
pull tabs
facing out
Figure 2.4
3. Clean out any remaining dust or hair
inside the air purifier using a vacuum
hose. Do not use water or liquids to
clean the air purifier. [Figure 2.4]

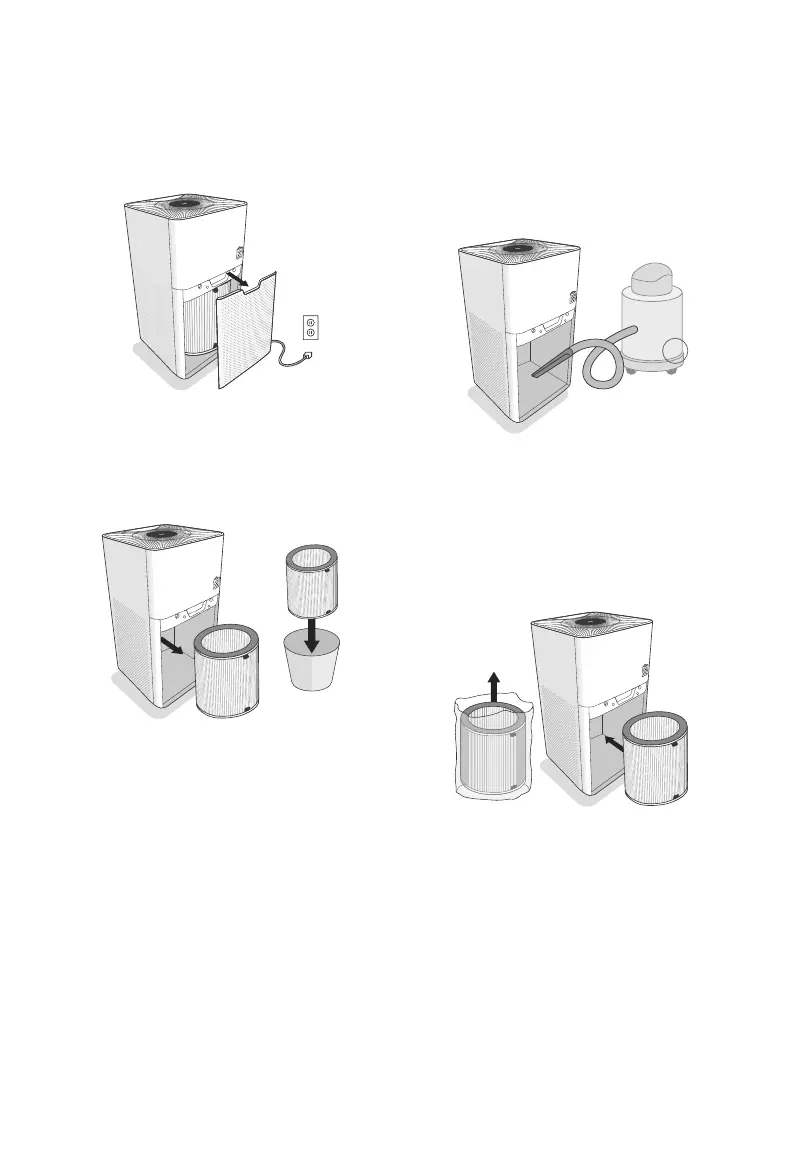

Replacing the Filter
1. Unplug the air purifier and remove the
filter cover. [Figure 2.2]
2. Remove the old filter. [Figure 2.3]
Figure 2.2
Figure 2.3
