Lexicon LXP-15 User Manual

1-5
Installing the LXP-15
INPUT OUTPUT
POWER
LXP-15
exicon
HEADROOM
OVL
12
18
24
VIEW
ADJUST PAGE
Reverb
Pitch/EQ
Dly
Setup
Store
Name
Global
MIDI
Level
Mod
Al
g
Patch 1
Patch 2
Patch
3
Patch
4
Sys
If you will be using an LXP-15 as your primary effects unit, and your system
includes a console with one or more auxiliary (effects) sends, connect the LXP-
15 as shown above. In most applications, it is preferable to connect the LXP-15
outputs to two of the console's input channel strips, panned full left and right,
rather than the effects returns. This allows the greatest flexibility in routing and
equalization.
In this configuration the console controls are used to set the amount of effect
heard—the LXP-15 program's MIX control should be set to 100% wet.

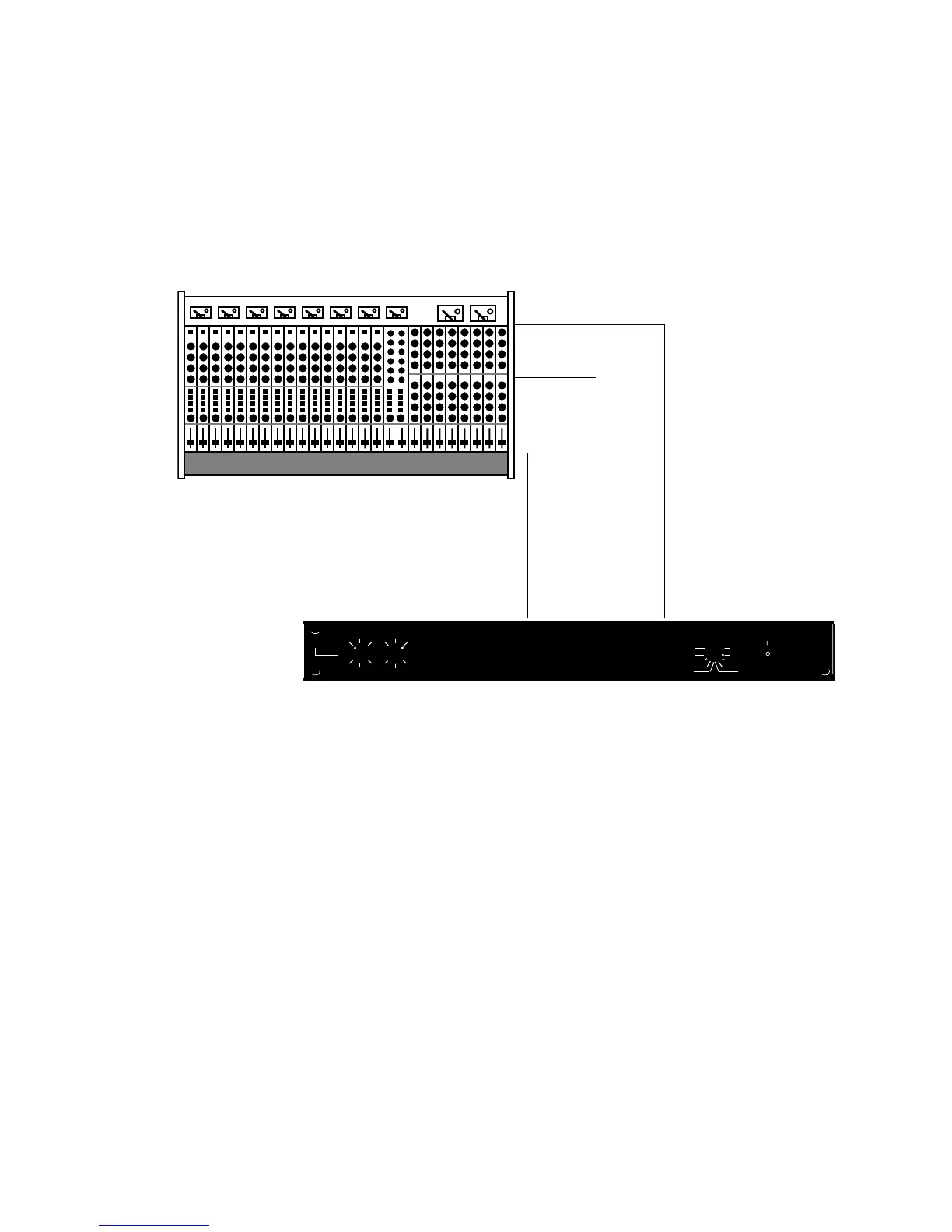

Connection to a
mixing console's
effects sends
Channel Input or
Effects Return (L)
Channel Input or
Effects Return (R)
Effects
Send
Input
(L or R) R Output
L Output
