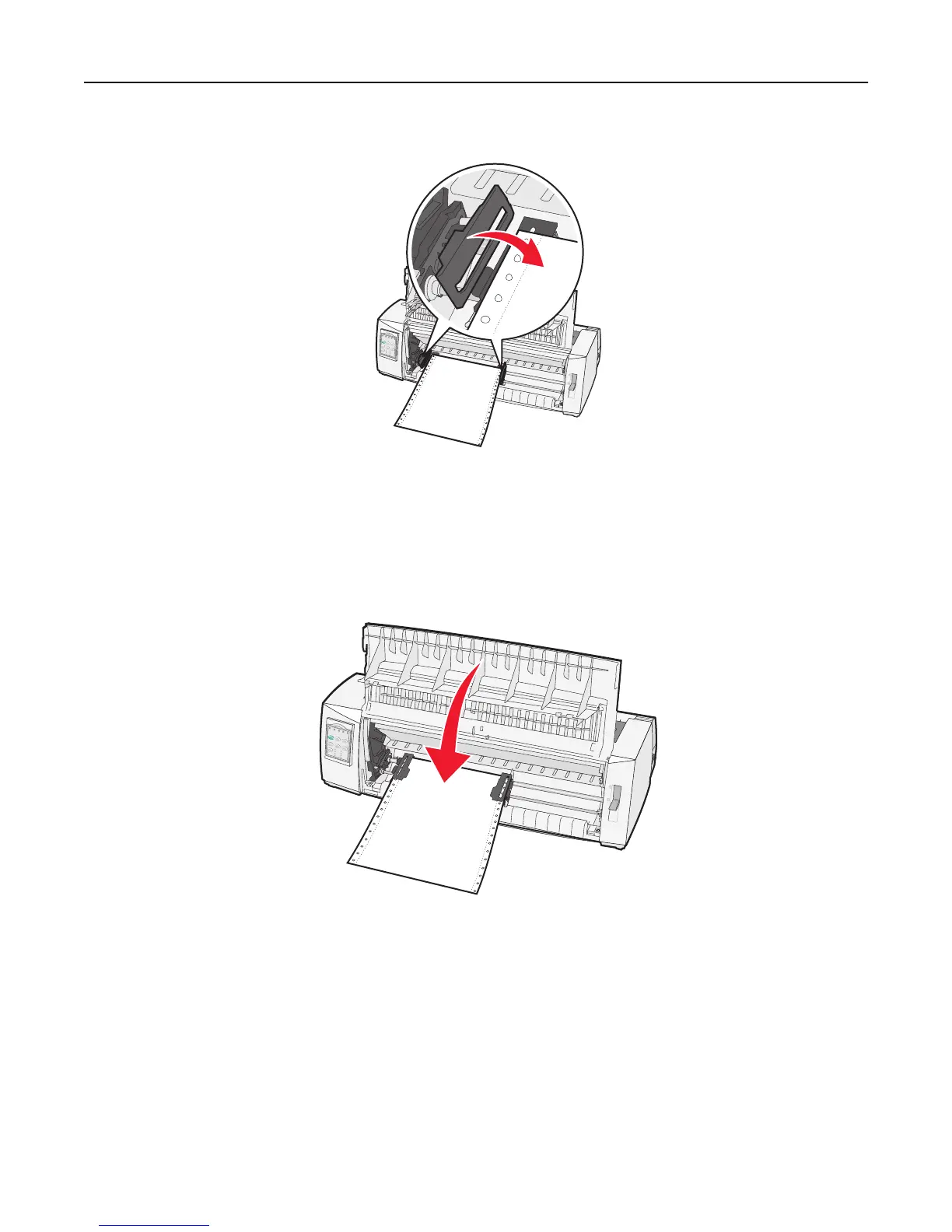

8 Close the left and right tractor doors.
9 Move the tractor to align the left margin on your paper with the [A symbol printed on the rear plate.
Note: The distance from the [A symbol to the left edge of the paper determines the width of the left margin.
10 Push down the left tractor locking lever to lock the tractor in place.
11 Remove slack from the paper, and then lock the right locking lever.
12 Close the front cover.
13 Press Start/Stop to load the paper to Top‑Of‑Form, and then put the printer online.
Notes:
• If Auto Tear Off is set to On, then the printer moves the paper to the Tear Off bar.
• When you use the push tractor to print continuous forms, line spacing within the first 1.5 inches of the first
form may not be uniform.
Front loading continuous forms using the pull tractor
Make sure the tractor is in the pull position.
Loading paper 27
