c Pull the cover to remove it.
2 Locate the appropriate connector on the system board.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or connectors.
1
2
4
3
5

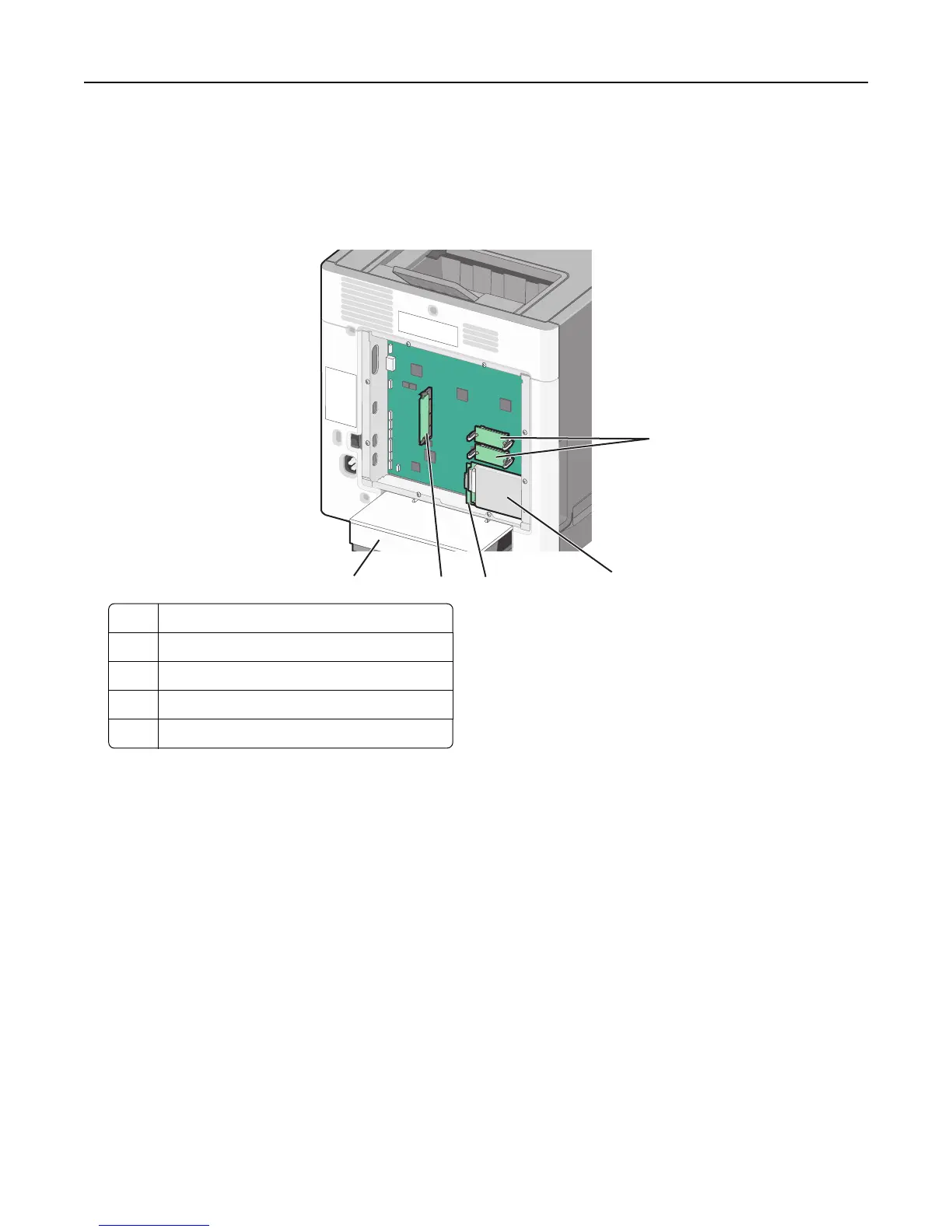

1 Firmware and flash memory card connectors
2 Printer hard disk connector
3 Internal print server connector
4 Memory card connector
5 Dust cover
3 Reattach the system board cover.
Warning—Potential Damage: System board electronic components are easily damaged by static electricity.
Touch something metal on the printer before touching any system board electronic components or connectors.
Additional printer setup 17
