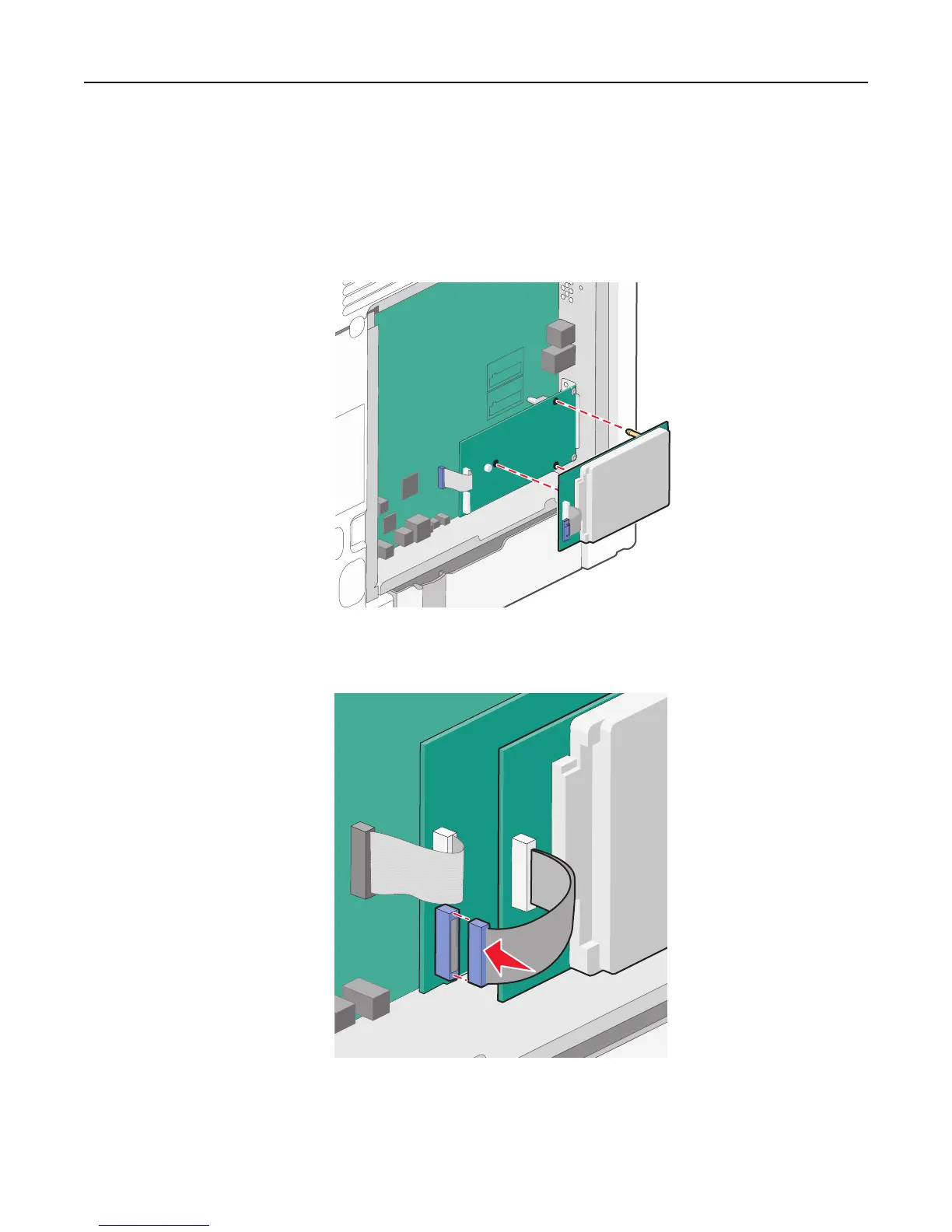

c Install the printer hard disk onto the ISP:
1 Hold the edges of the printed circuit board assembly, and then align the standoffs of the printer hard disk
to the holes in the ISP.
2 Press down on the printer hard disk until the standoffs are in place.
Warning—Potential Damage: Do not press on the center of the printer hard disk. Doing so may cause damage to
the hard disk.
d Insert the plug of the printer hard disk interface cable into the receptacle of the ISP.
Note: The plugs and receptacles are color‑coded.
Additional printer setup 27
