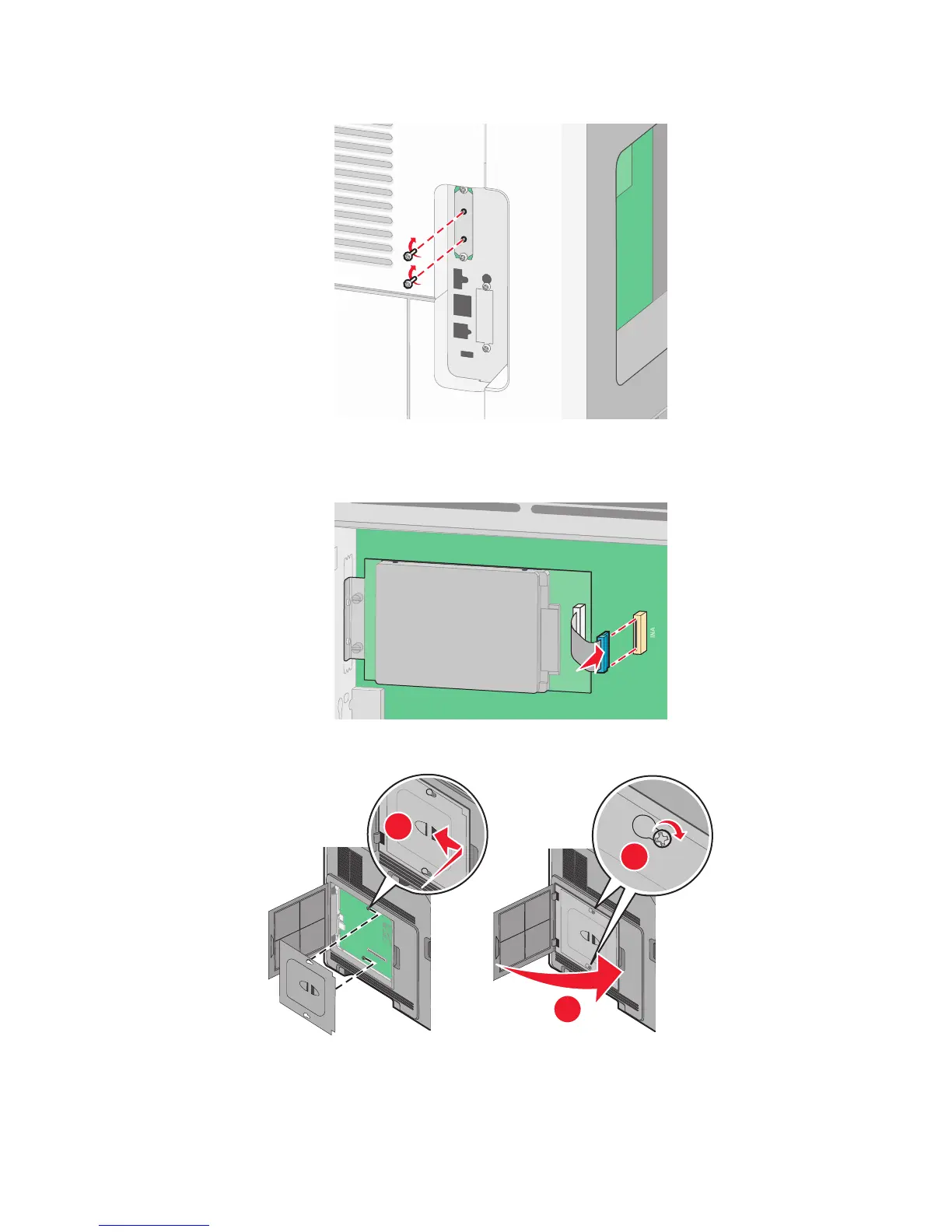

b Attach the two provided screws to secure the printer hard disk mounting bracket.
c Insert the plug of the printer hard disk interface cable into the receptacle of the system board.
Note: The plugs and receptacles are color coded.
4 Replace the system board cover and close the system board door.
1
2
3
Additional printer setup
33
