Install memory and option cards
3 Holding the firmware card by its
sides, align the two pins on the
card with the holes on the system
board.

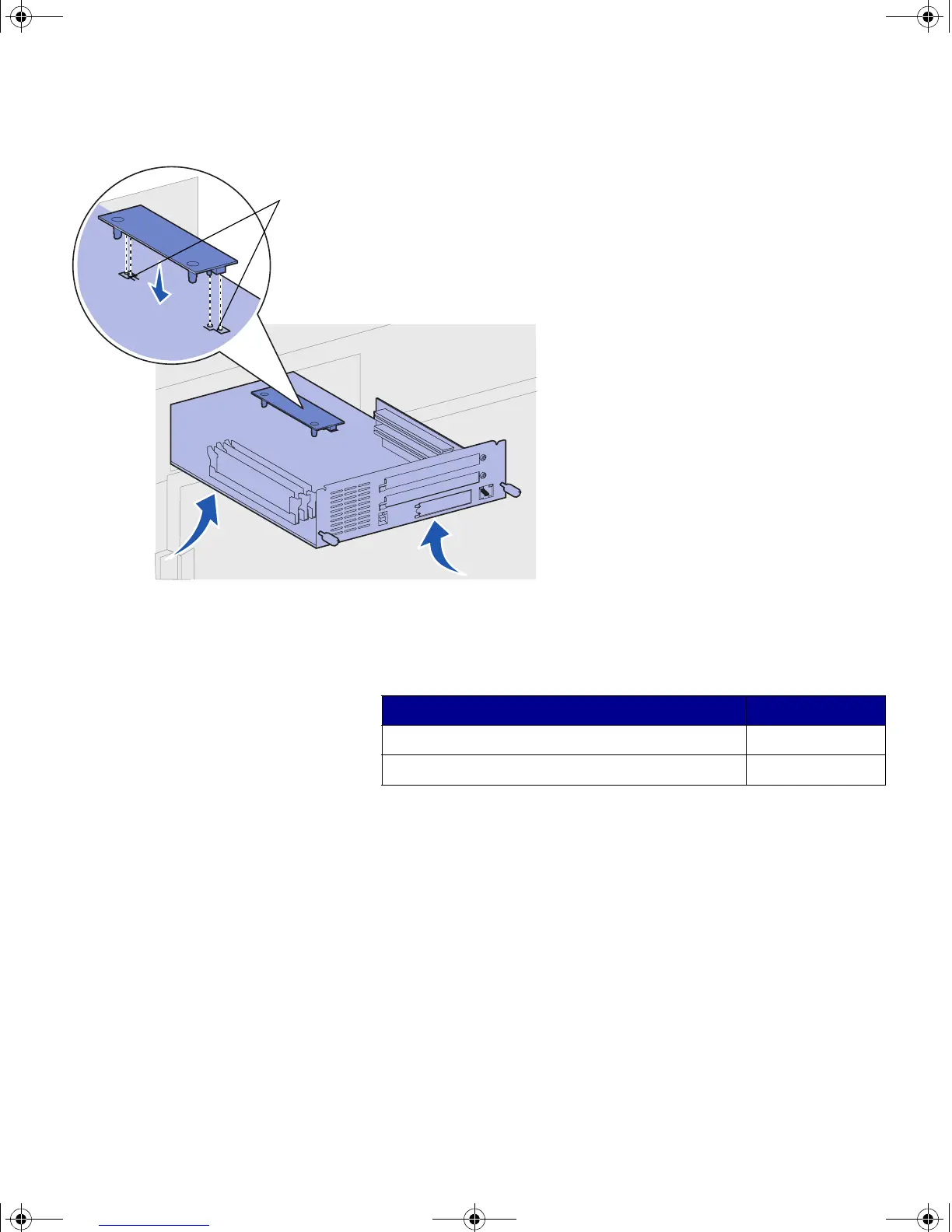

Orient the card as shown.
4 While holding the system board
from the bottom, push down until
the firmware card is firmly in
place.
The entire length of the plastic
connector on the firmware card
must touch the system board.
Some force may be required to
fully install the card, but be careful
not to damage the card’s
connectors.
System board holes
Warning! Support the bottom of the system board.
What do I do next?
Task Go to page…
Installing option cards 30
Reinstalling the system board 33
