Install memory and option cards
Complete the following steps to install
any of the option cards mentioned on
page 30:
1 Access the system board (see
page 24 for instructions) and
locate the option card connectors.
Note: If you are installing two option
cards, install the first one in the lower
option card connector, so it will be easier
to install the second card.
Warning! Install hard disks in the top
connector slot only. This prevents
overheating.

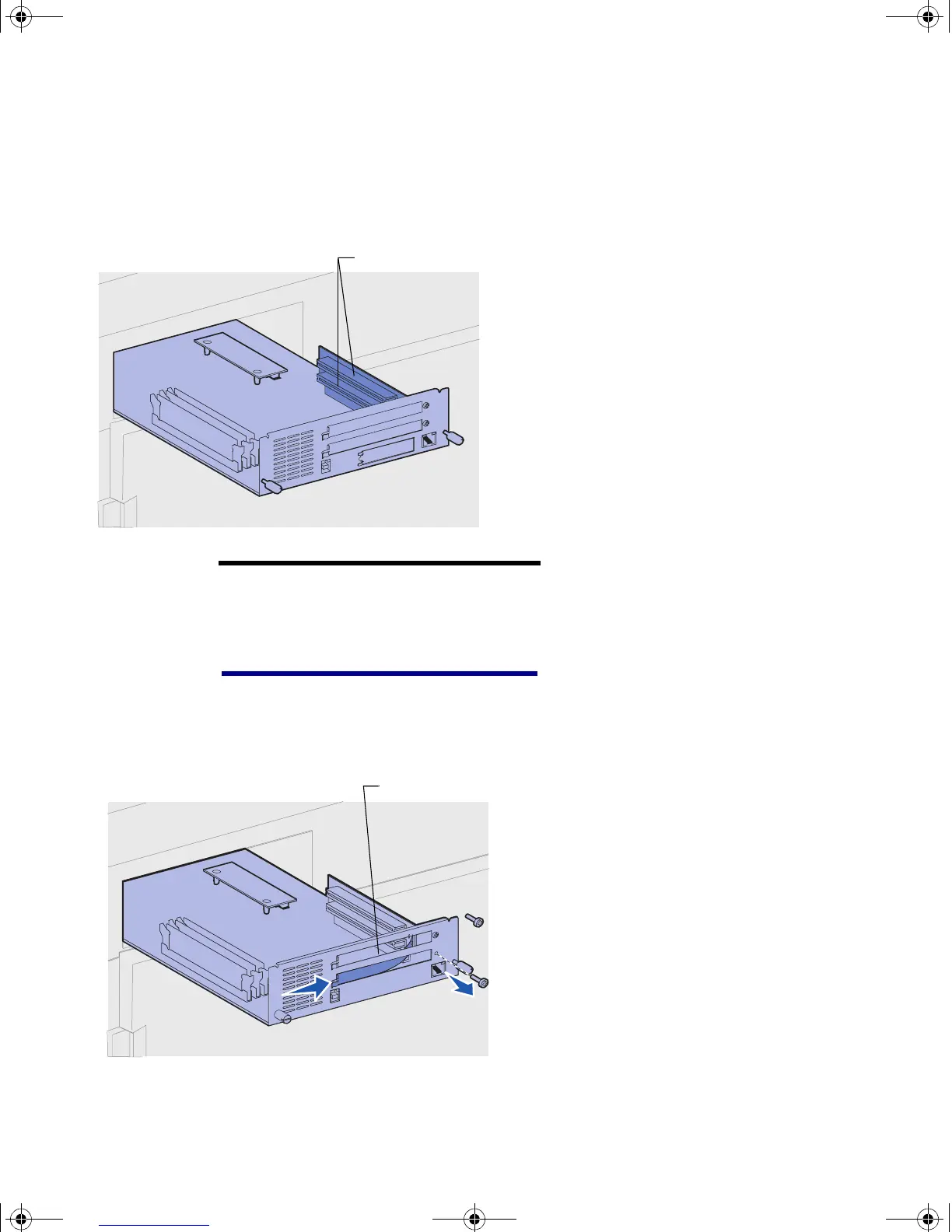

2 Remove the metal plate covering
the connector slot.
a Remove the screw on the right
end of the metal plate.
Save the screw.
b Remove the metal plate by
pulling it to the right.
Option card connectors
Connector slot
