Lexmark X2470 - Understanding Your Printer; Printer Components Overview

Learning about the printer

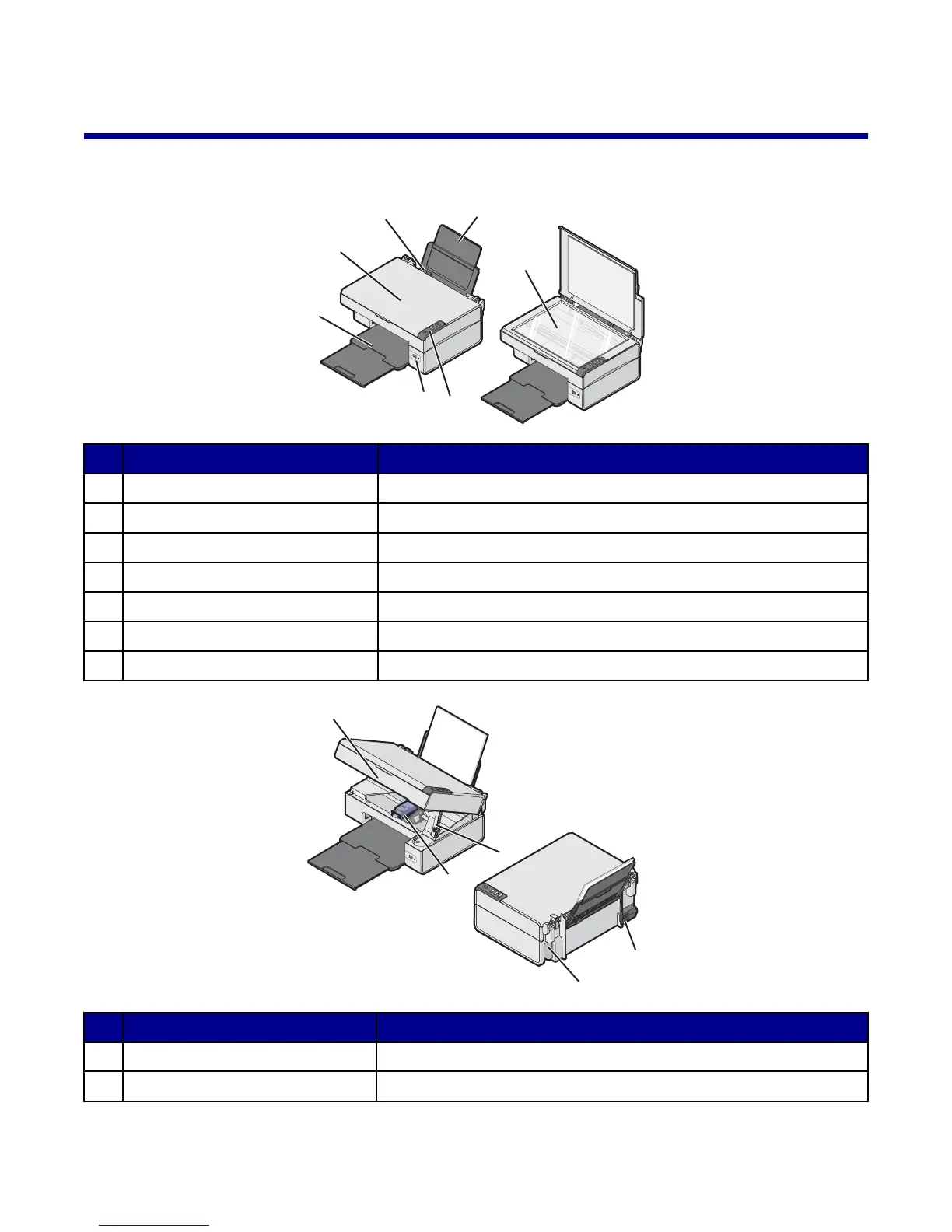

Understanding the parts of the printer
7
1
3
5
6
4
2
Use the To
1
Paper support Load paper.
2
Control panel Operate the printer.
3
PictBridge port Connect a PictBridge-enabled digital camera to the printer.
4
Paper exit tray Stack paper as it exits.
5
Top cover Access the scanner glass.
6
Paper guide Align paper when feeding.
7
Scanner glass Scan, copy, or remove an item.
1
2
3
4
5
Use the To
1
Scanner support Hold up the scanner unit.
2
Print cartridge carrier Install or replace a print cartridge.
