Lexmark X543 - Toner Meter Card; Toner Meter Card Connectors

To Next Page

To Previous Page

Locations 5-19

7525-xxx

Go Back

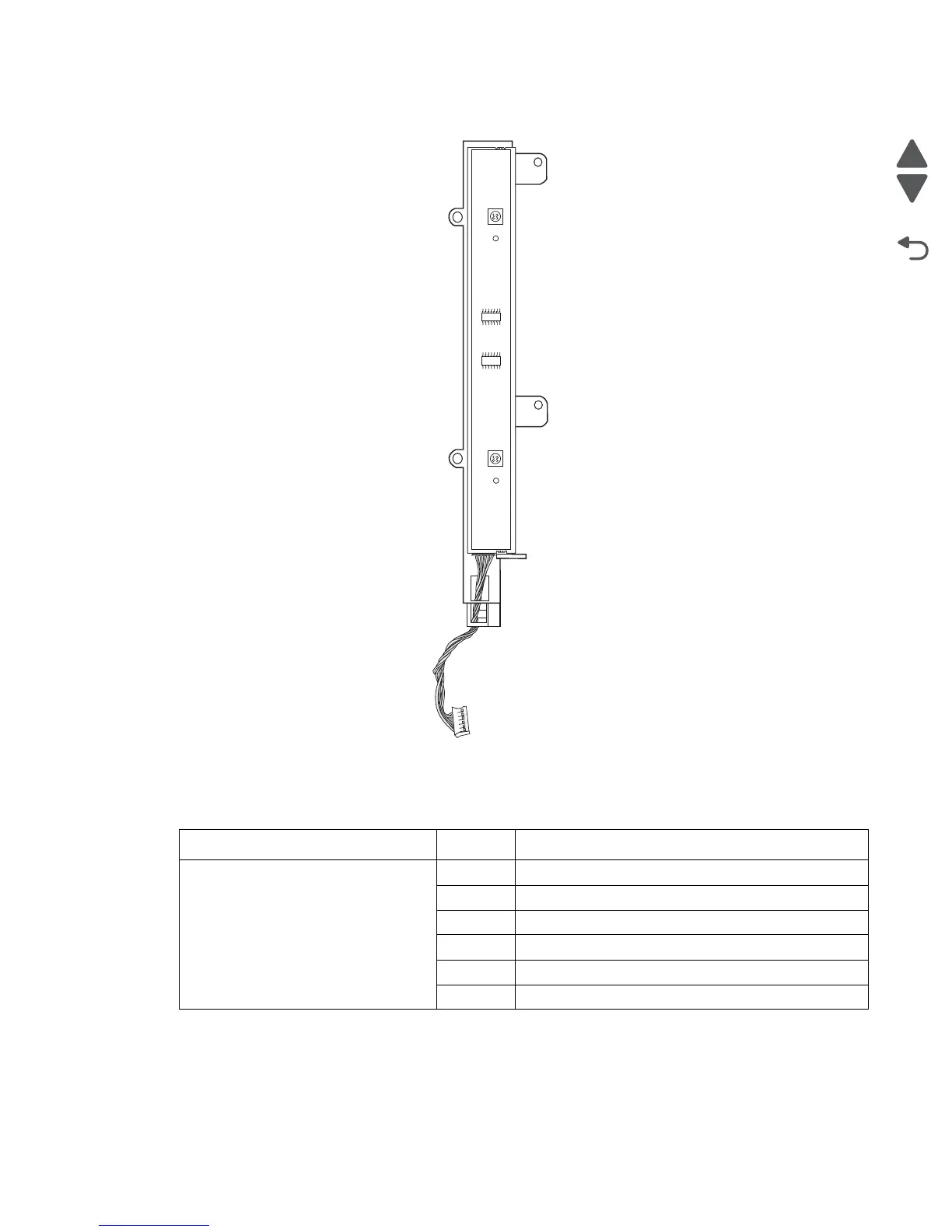

Toner meter card

Toner meter card connectors

Toner meter card

Connector Pin no. Signal

From JCTM1 connector on the

controller board

1+5 V_SW

2 Cart_Meter_C_IN

3 Cart_Meter_M_IN

4 Cart_Meter_Y_IN

5 Cart_Meter_K_IN

6 Ground
