LEYBOLD MAG W 1600 C User Manual

Description
11
GA 05.130/3.02 - 05/98
483
465
146
10
7
222
130
353
20
233

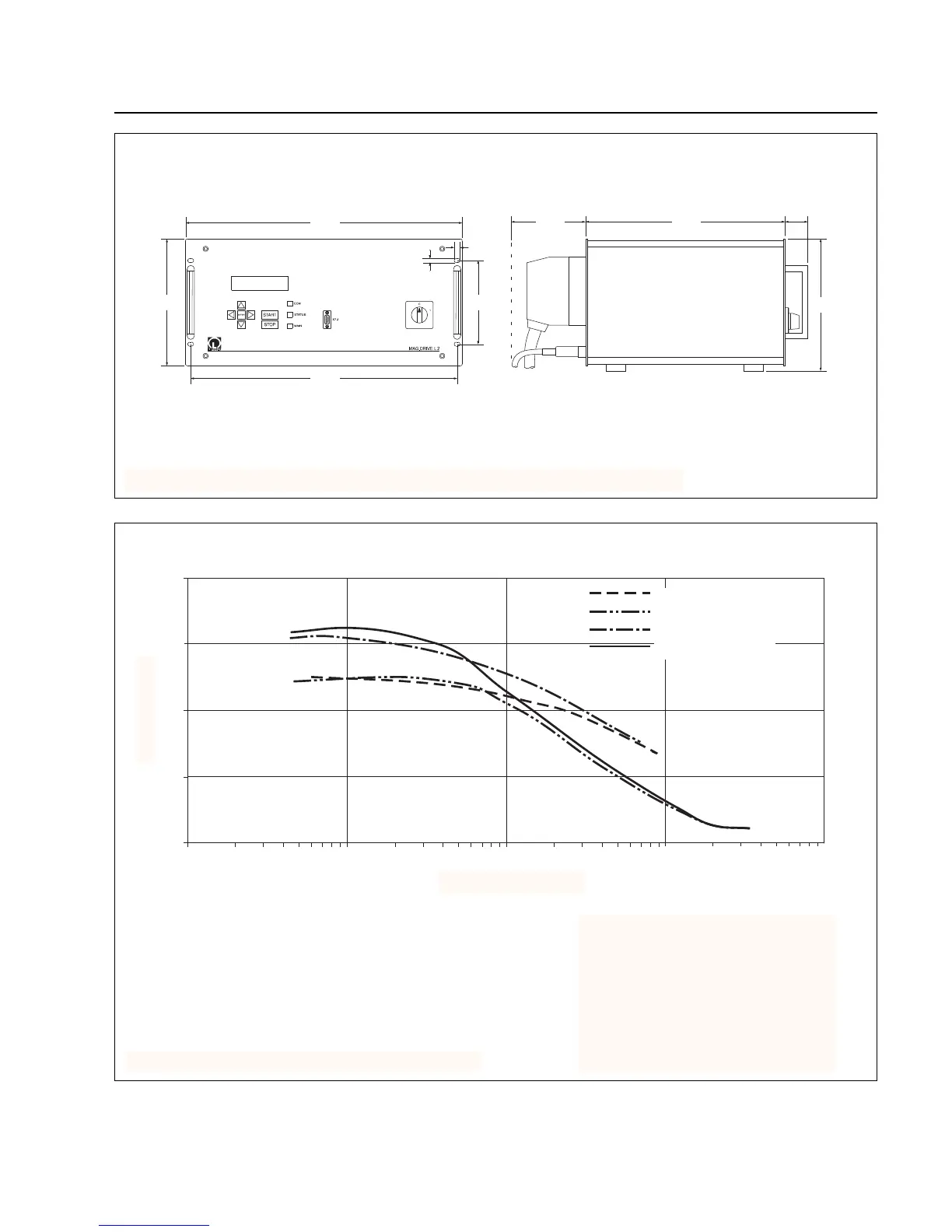

Fig. 7 Dimensional drawing of the MAG.DRIVE; dimensions in mm
1500
1000
500
0
2000
10
-2
10
-1
1
Torr
10
-3
10
-4
l/s
MAG 1600 CT
MAG W 1600 CT
MAG 2000 CT
MAG W 2000 CT
High Vacuum Pressure
Fig. 8 Pumping speed curves for Nitrogen
Pumping speed
Rotor speed 480 Hz
Purge gas flow 36 sccm Nitrogen
with splinter guard
Forepump
for MAG 1600 CT D 65 B + WS 501
for MAG W 1600 CT D 65 B + WS 251
for MAG 2000 CT D 65 B + WS 501
for MAG W 2000 CT D 65 B + WS 251
Pipe 1 m DN 40
according to PNEUROP
