Installation
2.8.1 Power supply connection X19
The converter is ready to be connected to line supply
voltages between 200-240 V 50/60 Hz. The connection
is established using the power cable supplied, which is
inserted at connector X19 at the rear of the converter.
Caution
The converter will be damaged if it is ope-
rated with the incorrect supply voltage.
25
GA 05.139/1.02 - 06/99
1 = Phase L
2 = Not assigned
3 = Neutral N
S = PE

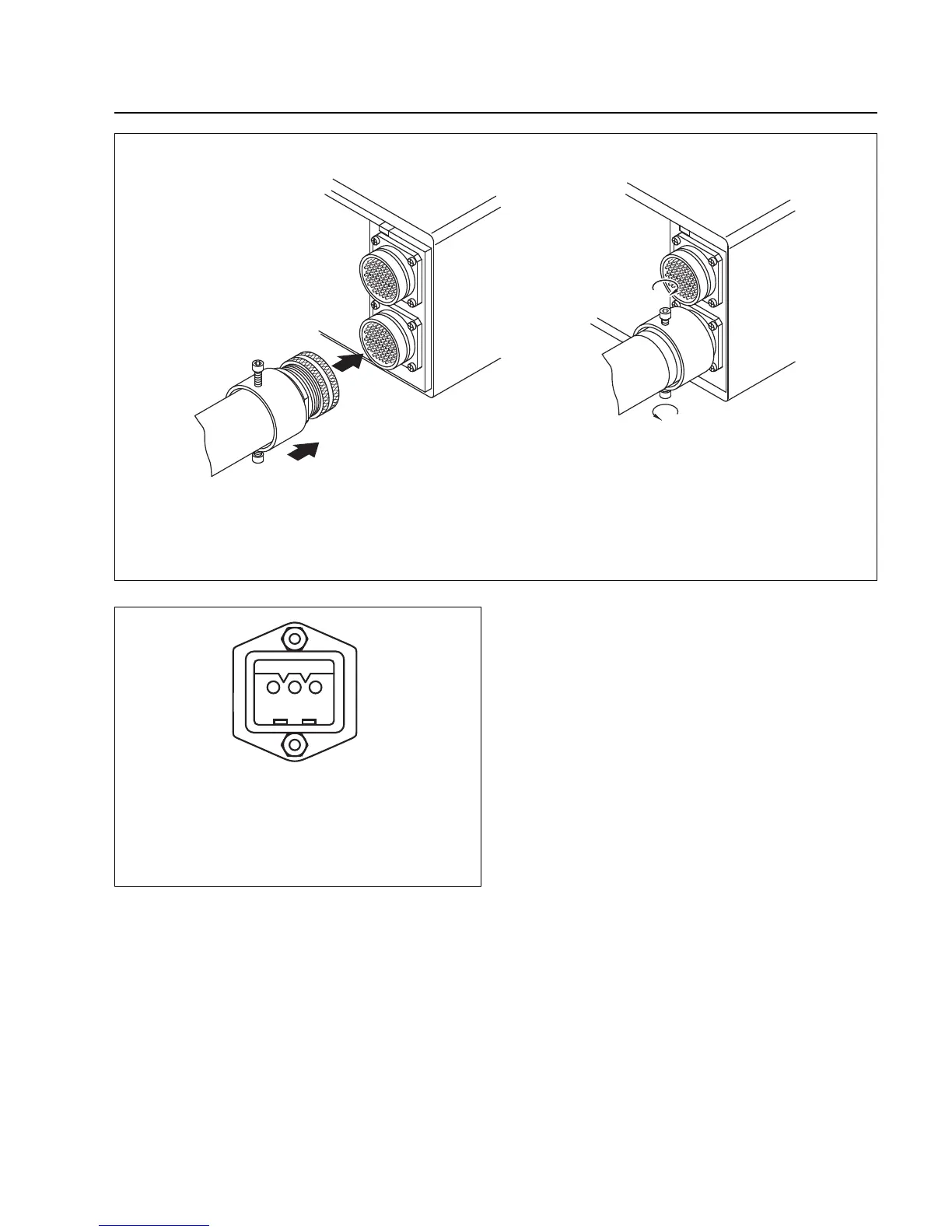

Fig. 22 Connector assignment X19, supply connection
Fig. 21 Mounting the safety sleeves; rear side of the converter shown.
Mount the safety sleeve onto the pump’s TMS connection too.
1.
2.
