Installation
30
GA 05.139/1.02 - 06/99
0
X14.23/24/25/26
X14.6/7/8/9
X14.39/40/41/42
X
X14.50
X14.32/33
X14.24/28
+15 V
8
Venting
Threshold
0
1
2
4
5
6
Rotor displacement
PVW13peak
PVW24peak
PZ12peak
Current limiting
80 mA
1
2
3
4
5
6
7
9
Pump standstill
Start command
Power supply o.k.
Threshold
Threshold
Motor- or bearing-
temperature
Motor current
Act. frequency
Function
signal relay
Function
analog output
Analog output
Analog ground
Scale
No cooling water
No purge gas
TMS temp. o.k.
Relay 6/7/8/9 Option

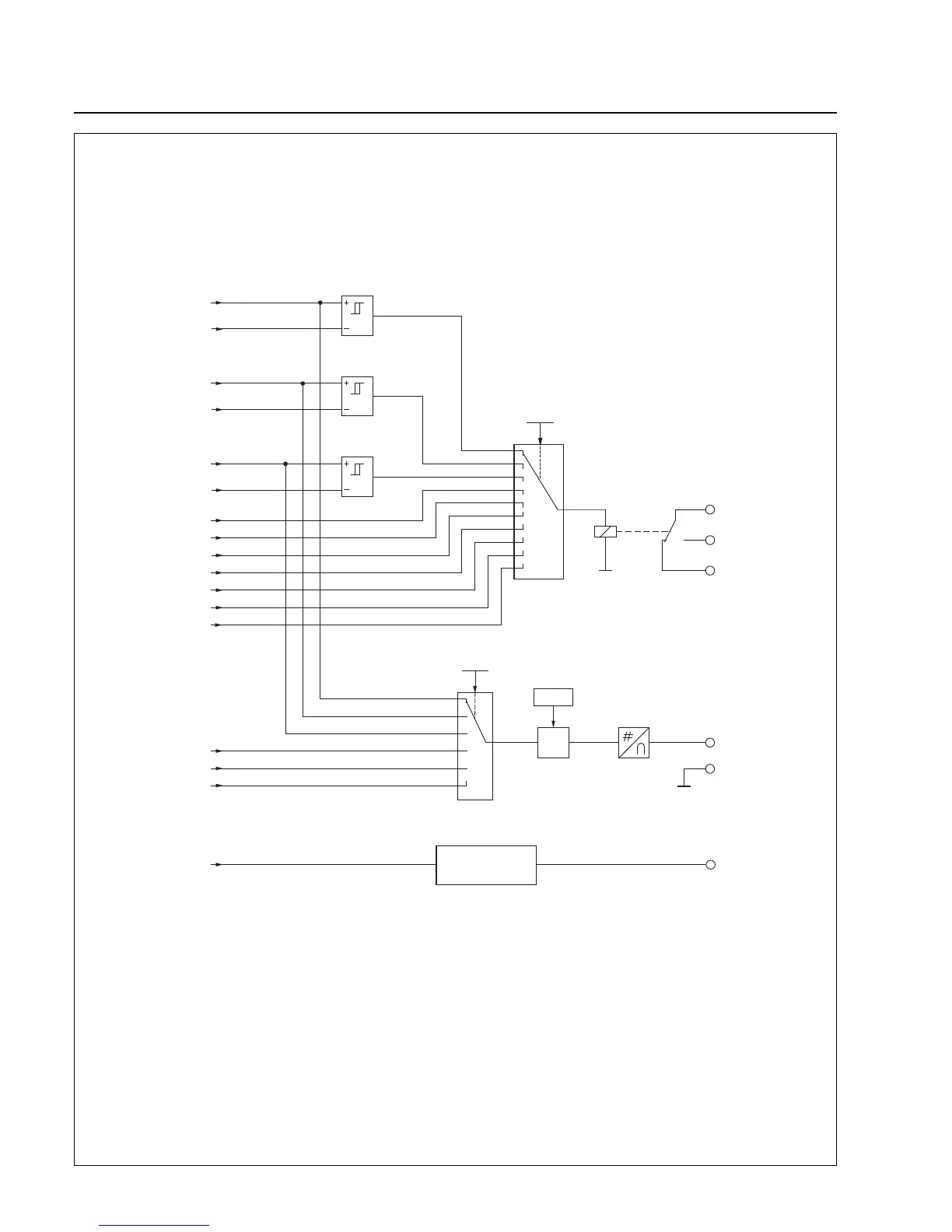

Fig. 28 Function diagram outputs, Part 2
—————
1) not active at MAG W 2010 CHT
1)
1)
