7. Turn the Hand Wheel until the Upper Drift Pin Assembly is lowered.

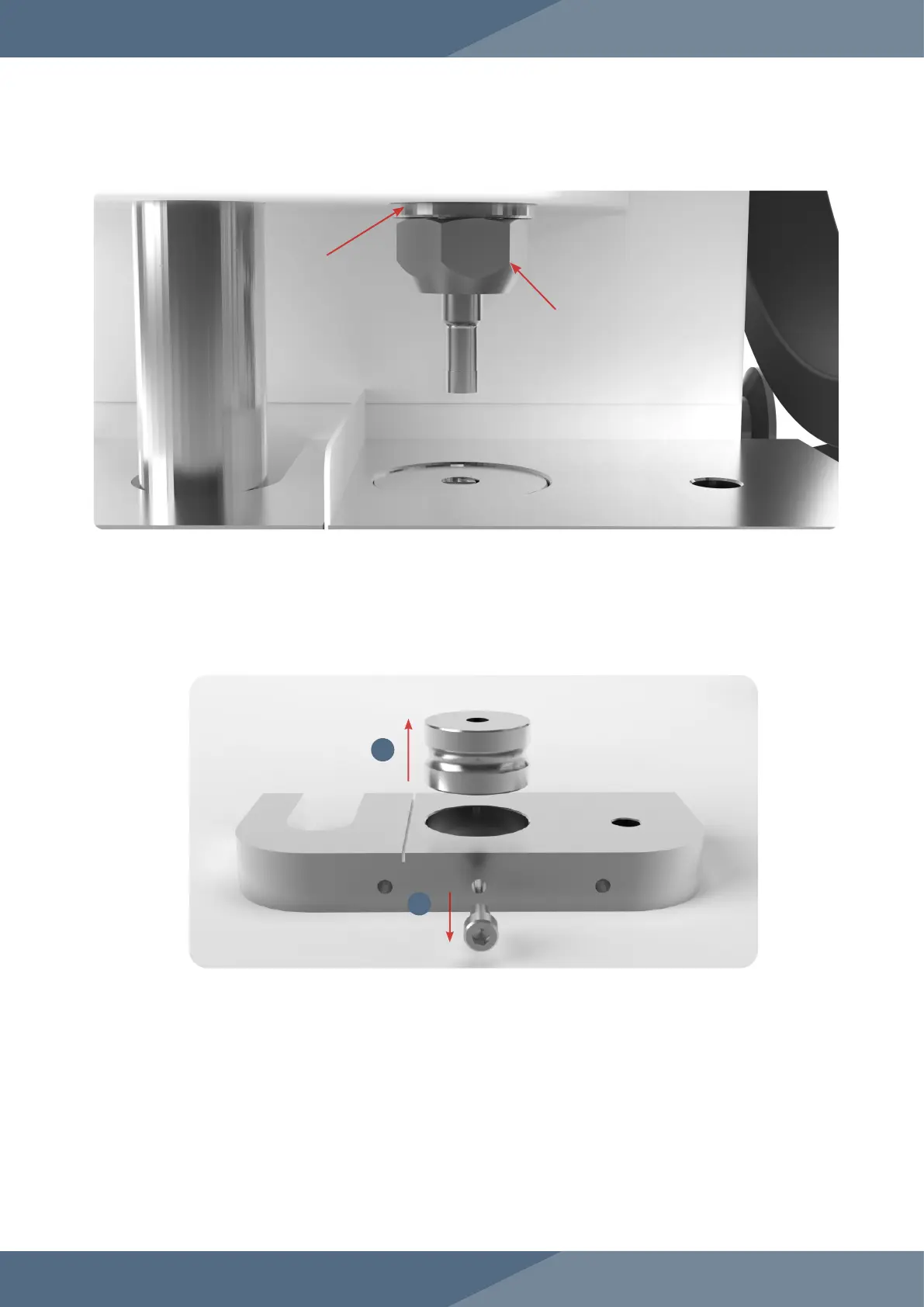

8. Loosen the Upper Punch Die Locking Nut with a 22 mm wrench while keeping the Upper Punch
Drift Assembly in place with another 22 mm wrench.
9. Remove the Upper Punch by hand.
9.1 Note: If you cannot remove by hand, carefully use grippers or pliers.
10. Remove the Base Plate with the Die still inside it.
11. Remove the set screw that locks the Die with an Allen key.
12. Take out the Die from the middle of the Base Plate.
12.1 Lightly tap the Die with a hammer if it is difficult to remove.
11
12
