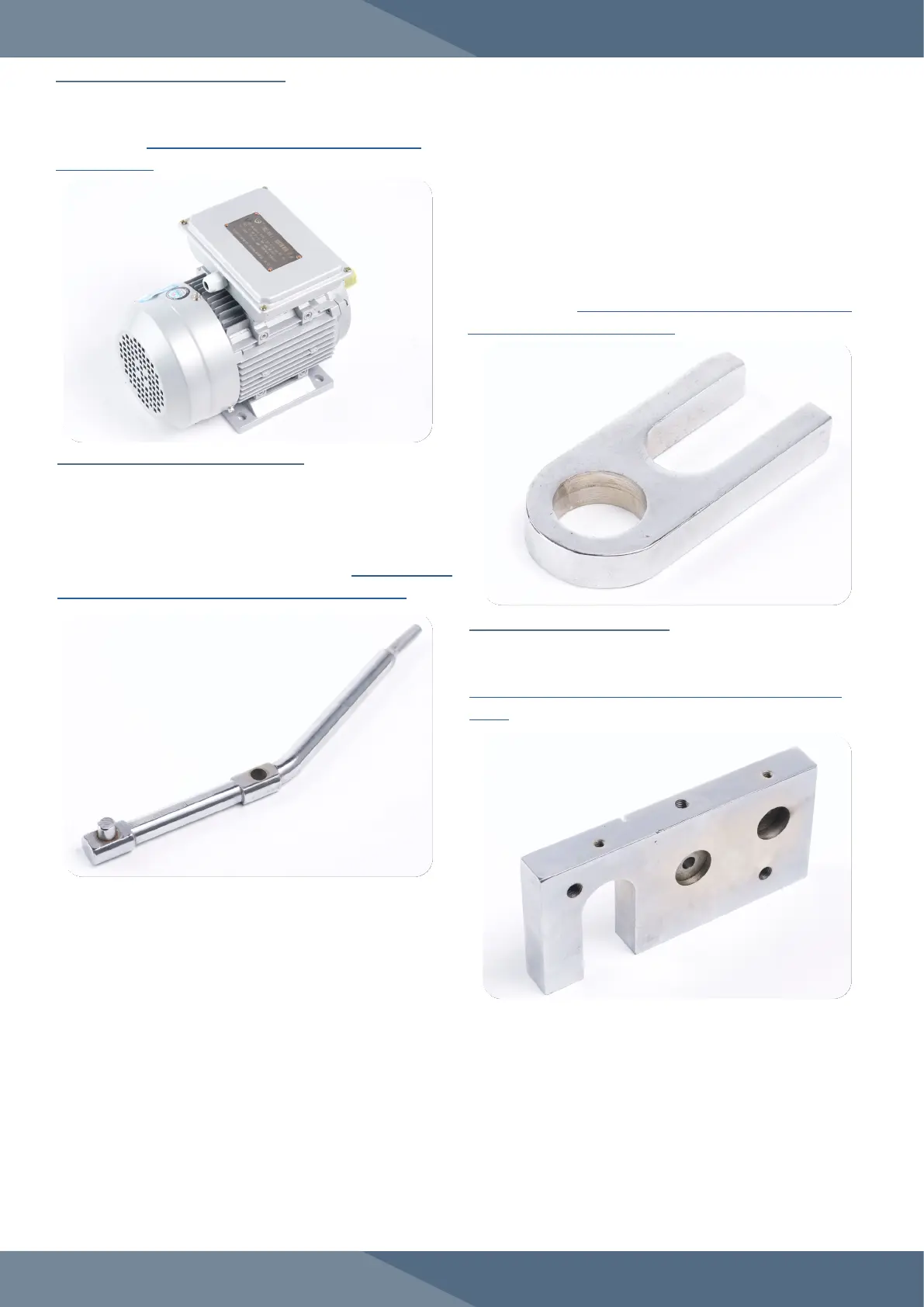

Electric Motor (#AFC0042)

The Electric Motor is mounted at the back of the

TDP 6s

Base and can be either 110 v or 220

v. Order at https://www.lfatabletpresses.com/

tdp6s-motor

Lower Drift Pin Assembly Lifting Bar

(#AFC0034)

The Lower Drift Pin Assembly Lifting Bar lifts the

Lower Drift Pin Assembly that holds the Lower

Punch and helps push the tablets out of the

Die. Order at https://www.lfatabletpresses.com/

tdp6s-lower-pin-lifting-bar

Base Plate (#AFC0008)

The Base Plate is not only the mount for the

Boot, but also holds the Die in place. Order at

https://www.lfatabletpresses.com/tdp6s-base-

plate

Boot Timing Bar (#AFC0018)

The Boot Timing Bar moves the Boot and

is timed by the Boot Timing Cam track. The

rocking motion that the arm provides helps the

Boot to ﬁll the Die bore with the dry granular

material for the next tablet. Order at https://www.

lfatabletpresses.com/tdp6s-boot-timing-bar
