LDP-9208D/9224DF/9240D User Guide
8
1.6.1 DSS(Direct Station Select) Console Installation
A DSS console can be installed with LDP-9200 series phone.
As we described the available DSS for each phone, the available
DSS is as below:
LDP-9208D: no DSS
LDP-9224DF: LIP-9012DSS, LIP-9024DSS, and LDP-
9248DSS
LDP-9240D: LIP-9012DSS, LIP-9024DSS, and LDP-
9248DSS
The DSS console should be installed on the phone prior to making
any connections to the phone. This simplifies the installation.
To install DSS console for LIP-9012DSS, LIP-9024DSS and LDP-
9248DSS.
1.
First, assure the
phone is NOT
connected to power.
For convenience,
you may wish to
remove the handset
and foot-stand; this
simplifies the Button
kit installation.
2. On the right side of
the phone, remove
the Button kit cover.

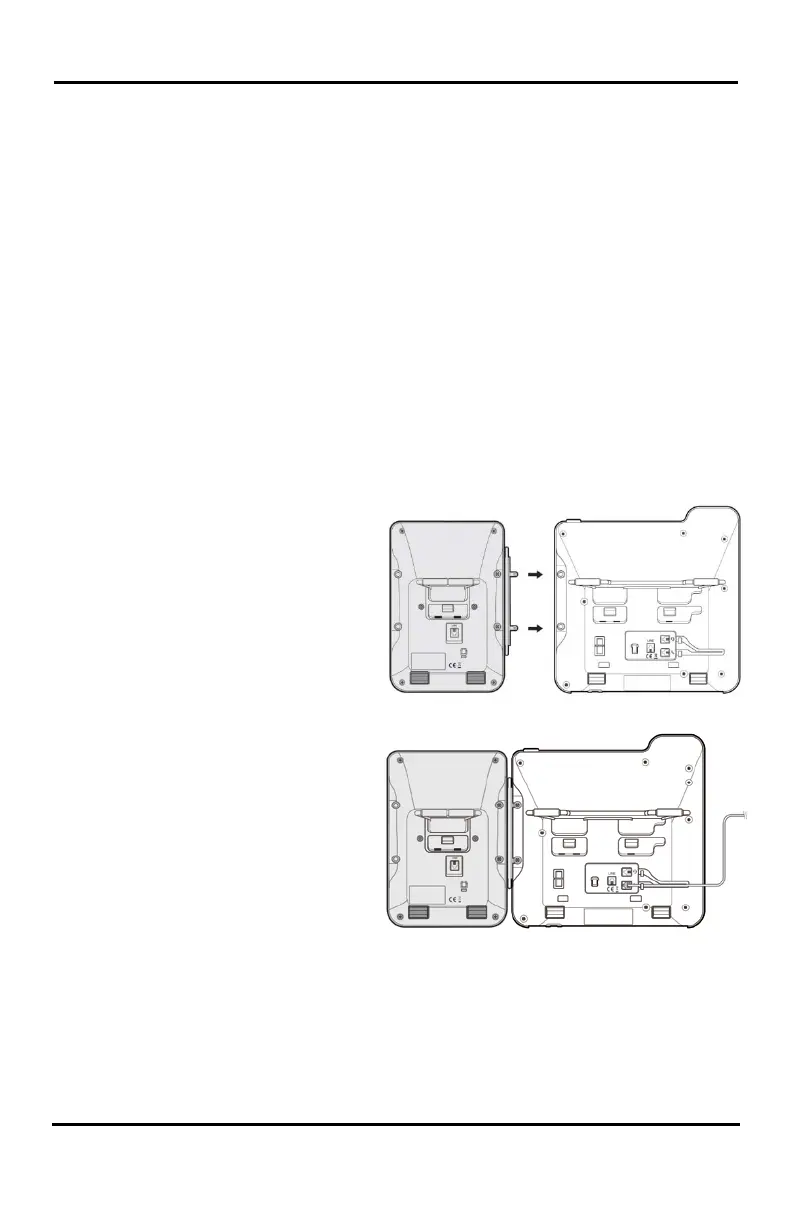

3. Align the Button kit
and phone as shown
in the drawing.
4. Push the Button kit
into the phone until
the button kit is fully
engaged.
5. Insert the screws provided through the screw tabs in the Button
kit and tighten the screws into the phone. Do not over-tighten.
