LDP-9208D/9224DF/9240D User Guide
9
1.7 LDP-9200 Series Phone Installation
1.7.1 Phone Connections
LDP-9200 series each have 3 connection ports (refer to
following figure). each port is for connecting to: Handset, Ear
Mic., and the line cable.
1) Connect the telephone cord (curly cord) to the handset and
the other end to the handset jack at the bottom of the
telephone.
2) Connect the line cable to the port at the bottom of telephone
and the other end to thewall socket.
3) Connect the Ear Mic. to the jack at the bottom of the
telephone. To use Ear Mic. function, press [PGM] +19 and
then set ON.

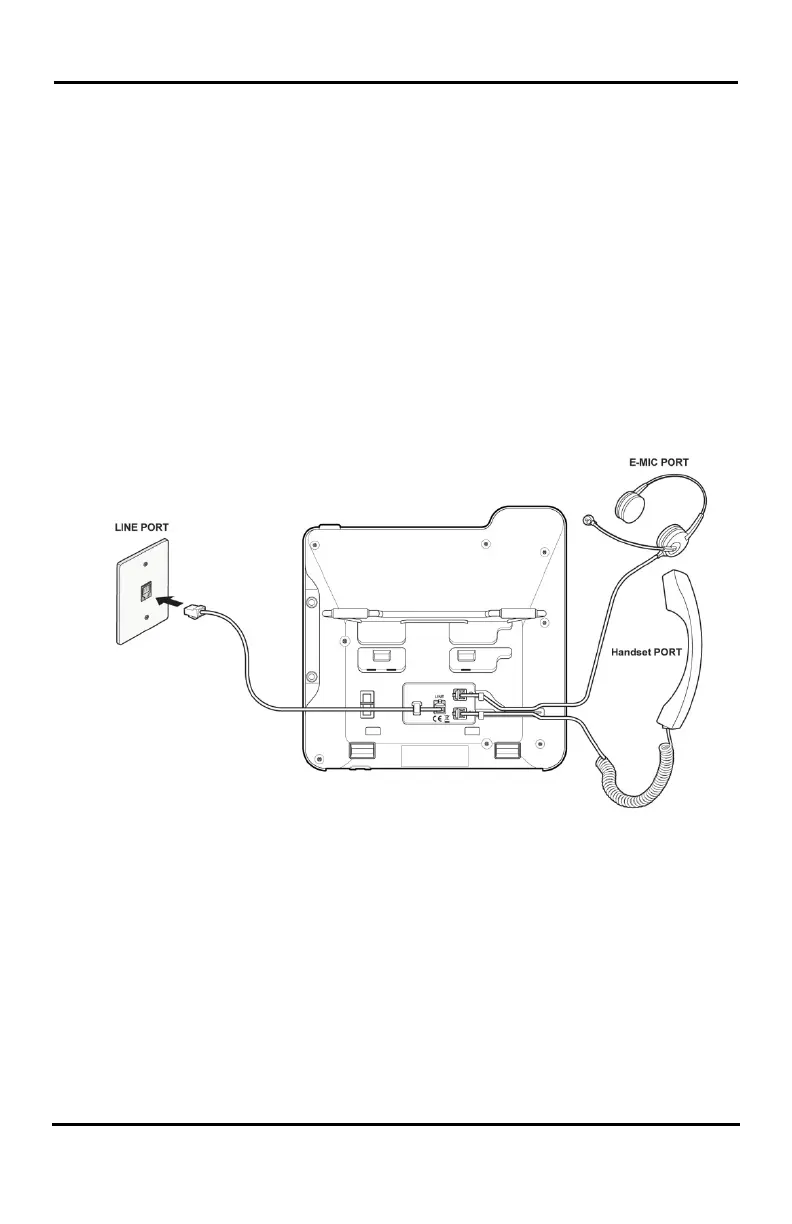

Figure LDP-9200 series Connections
1.7.2 Information about compatibility headset
We can't guarantee other headsets except the headset list posted on
the web site.
Regarding Headset compatibility, refer to "Headset list for IP phone"
on the web site.
We will update the compatibility list if we finish testing the new one
anytime.
