LG 32PG6000 - Antenna Connection

PREPARATION
AV 1 AV 2
ANTENNA
IN
AV 1 AV 2
ANTENNA
IN
AV 1 AV 2
ANTENNA
IN
AV 1 AV 2
ANTENNA
IN
14
PREPARATION
ANTENNA CONNECTION
AV 1 AV 2
ANTENNA
IN
AV 1 AV 2
ANTENNA
IN
USB IN
AV IN 2
L/ MONO
R
AUDIO
VIDEO
S-VIDEO
HDMI IN HDMI/DVI IN
1
1
2
2
VARIABLE
AUDIO OUT
COMPONENT IN
AV IN 1 AV OUT
RGB IN
RS-232C IN
(CONTROL&SERVICE)
L/MONO
R
AUDIO
VIDEO
■

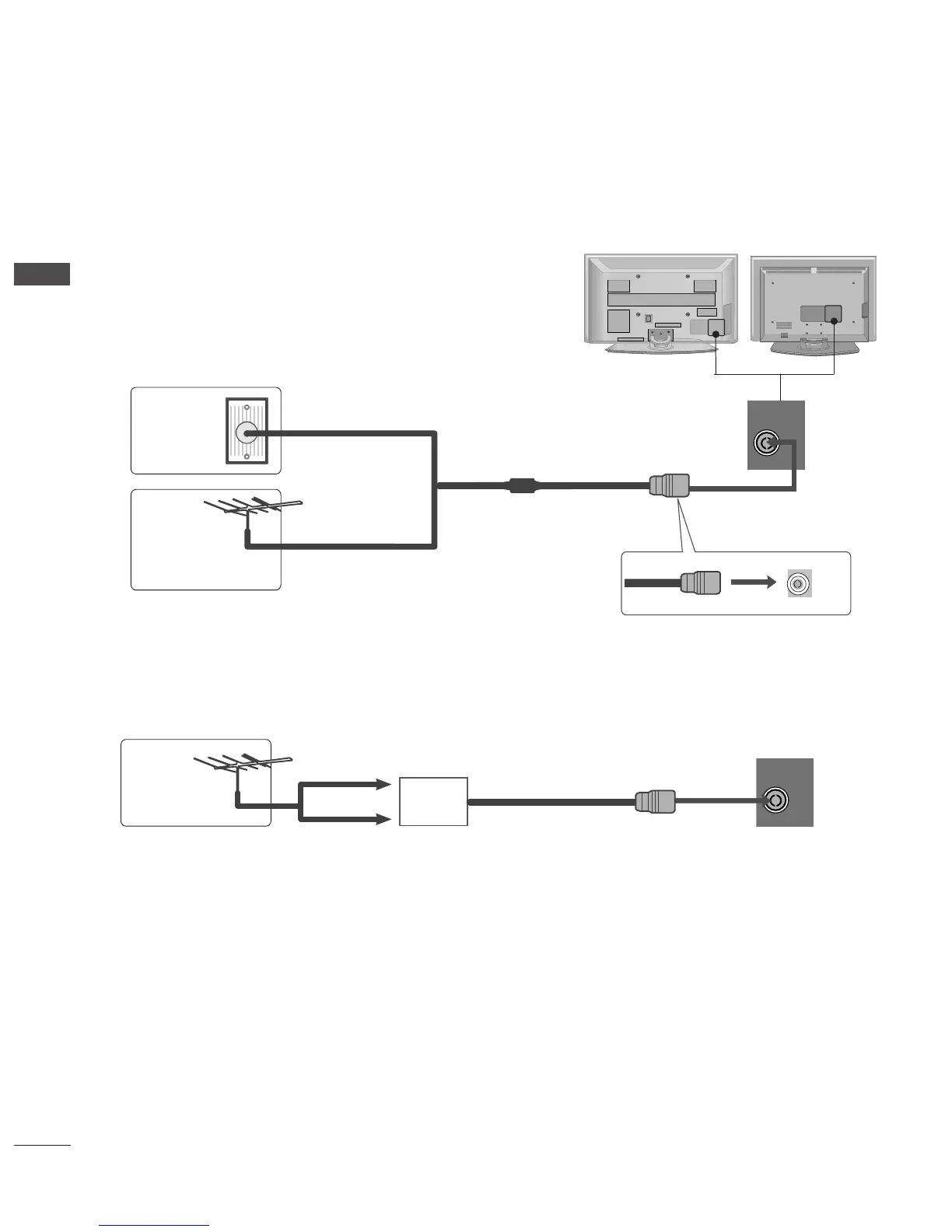

For optimum picture quality, adjust antenna direction.
■
An antenna cable and converter are not supplied.
■
To prevent damage do not connect to the mains outlet until all connections are made between the devices.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
Antenna
UHF
Signal
Amplifier
VHF
■
In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier to the
antenna as shown above.
■
If signal needs to be split for two TVs,use an antenna signal splitter for connection.
