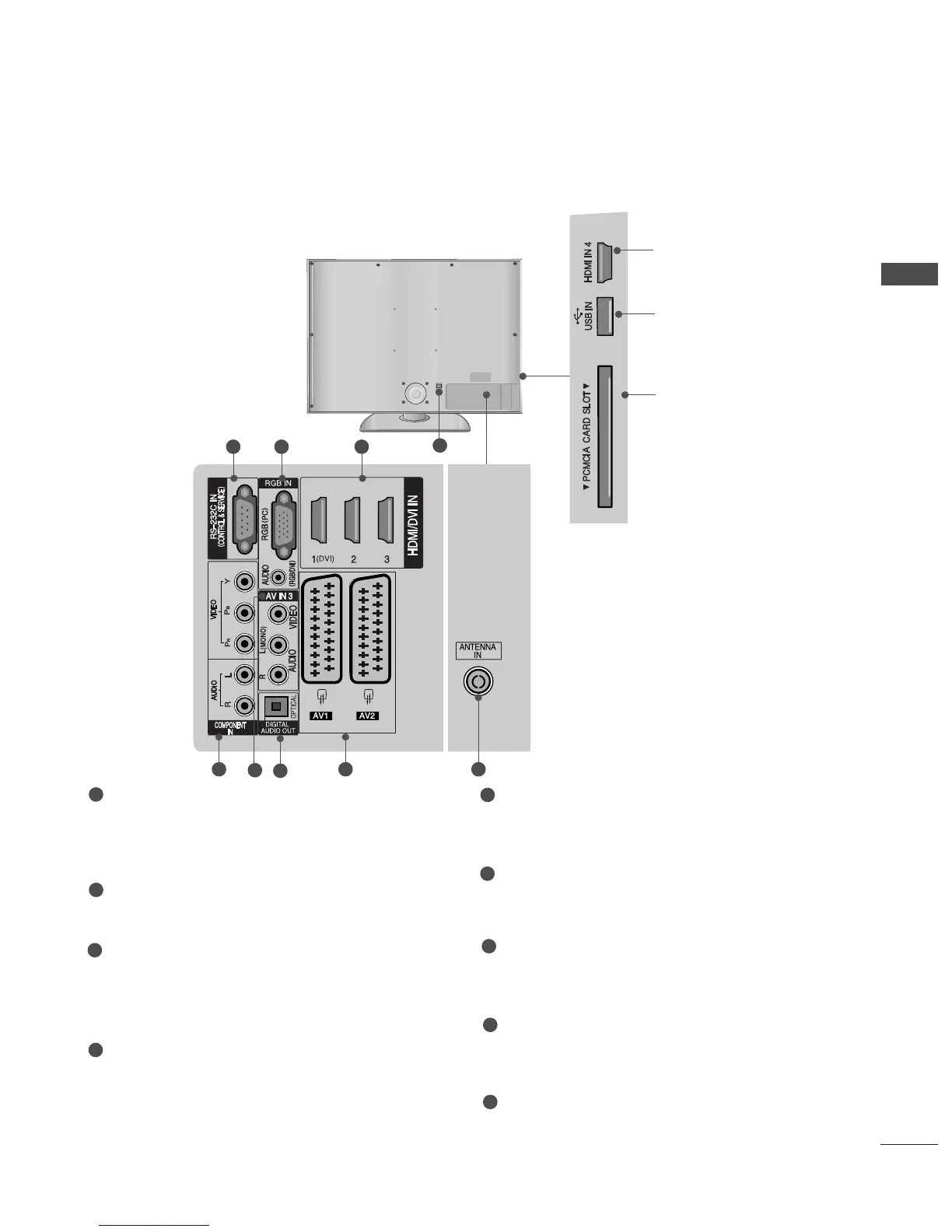

PREPARATION
LCD TV Models
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
RGB Input
Connect the output from a PC.
RGB/DVI Audio Input
Connect the audio from a PC or DTV.
HDMI Input
Connect a HDMI signal to HDMI IN.
Or DVI(VIDEO)signal to HDMI/DVI port with DVI
to HDMI cable.
Component Input
Connect a component video/audio device to
these jacks.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
OPTICAL DIGITAL AUDIO OUT
Connect digital audio from various types of equipment.
Note: In standby mode, these ports do not work.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks
Antenna Input
Connect RF antenna to this jack.
1
2
3
4
6
7
8
9
1
5
432
HDMI Input
Connect a HDMI signal to
HDMI IN.
USB Input
PCMCIA (Personal
Computer Memory Card
International Association)
Card Slot
(This feature is not avail-
able in all countries.)
5
7
8 9
6
