Speaker System Connection
Speaker Connections

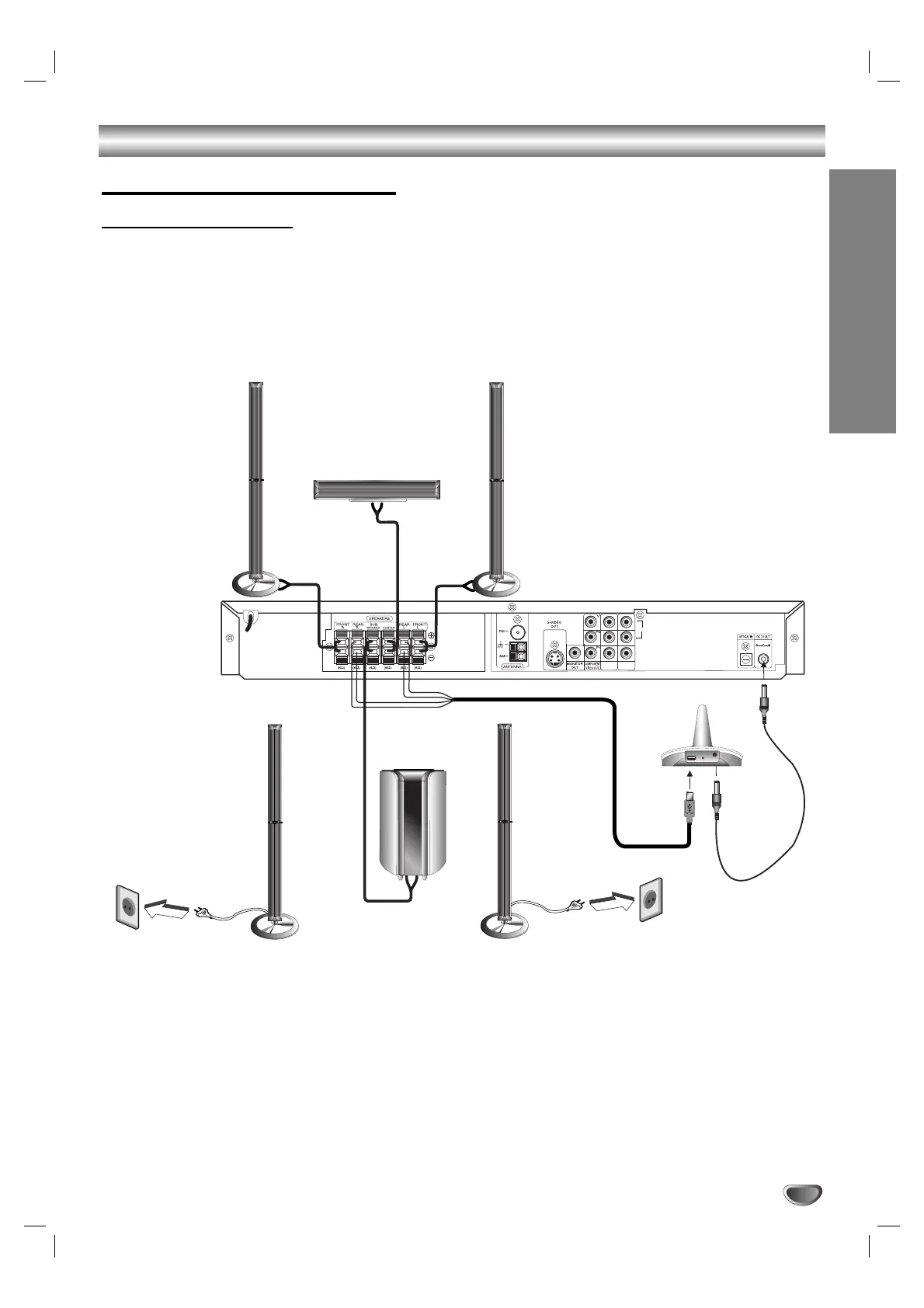

Connect the speakers to the front (right, left) or center speaker connectors.
Connect the subwoofer to the woofer connector.
Connect the power cord of the wireless speaker to the outlet.
Connect the DC IN connector of transmitter and the transmitter connector of rear panel with the DC power cable.
Connect the SOUND SIGNAL connector of transmitter and the rear (right, left) speaker connector of rear panel
with the SOUND SIGNAL cable.
Set the distance between the transmitter and wireless speaker (right, left) within 10m.
Notes:
Optimum performance can be implemented only when the transmitter and the wireless speaker within distance of 2m through
10m is used since communication failure may occur if closely approaching distance between them.
Be sure to match the speaker cable to the appropriate terminal on the components: + to + and – to –. If the cables are
reversed, the sound will be distorted and will lack base.
Do not remove the front cover of supplied speaker.
It takes a few seconds (and may take longer) for the transmitter and wireless speaker (left, right) to communicate with each
other.
When the main set is turned off, the transmitter is also turned off automatically and the wireless speaker is in standby mode
(red LED indicator).
If the wireless speaker is turned off, the wireless speaker will not function.
