Connections (Continued)
Optional Equipment Connections
11

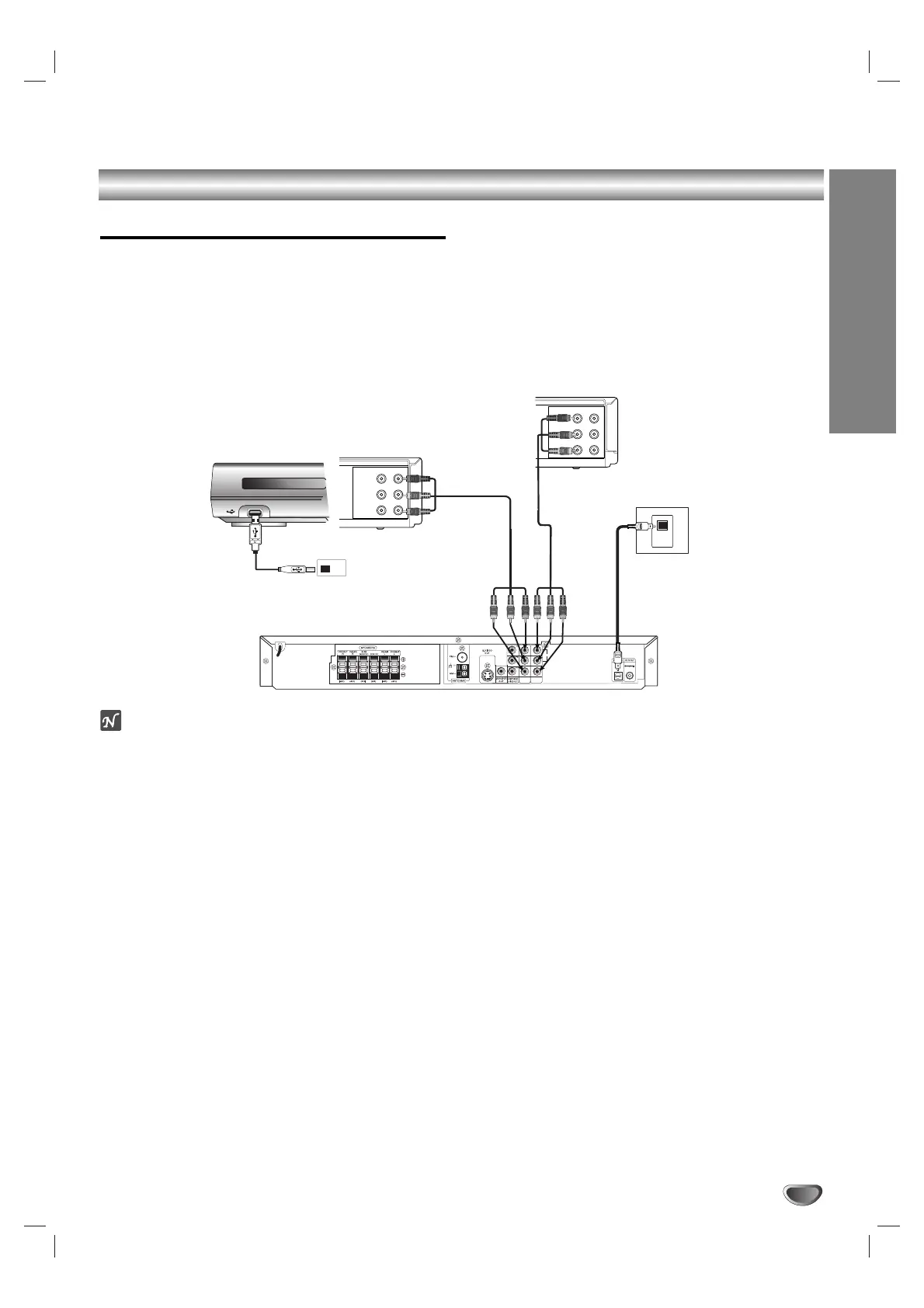

Connect a VCR to the AV IN connectors.
22
Connect a additional VCR to the AV2 connectors.
33
Connect an optical output of DVD Player (or Digital Device etc) to the OPTICAL IN connector.
44
Connect the USB port of a USB Memory (or MP3 player, etc.) to the USB HOST on the front of the unit.
AUDIO
L
R
DVD Player (or Digital
Device, etc)
OPTICAL
OUT
VIDEO
INOUT
AUDIO (L)
AUDIO (R)
VIDEO
OUTIN
AUDIO (L)
AUDIO (R)
VCR
Additional VCR
To AUDIO IN (L/R)/
VIDEO IN (AV2)
To AUDIO IN (L/R)/
VIDEO IN (AV1)
To AUDIO OUT (L/R)/
VIDEO OUT
To AUDIO OUT (L/R)/
VIDEO OUT
AV1 INAV2 IN
Front of DVD/CD Receiver
USB Memory, MP3 Player (or
Memory Card Reader, etc.)
