Preparation
13
Connections (Continued)
Centre Speaker
Front Speaker
(Left)
Speaker Positioning Example
Rear Speaker
(Left)
Rear Speaker
(Right)
Front Speaker
(Right)
Subwoofer

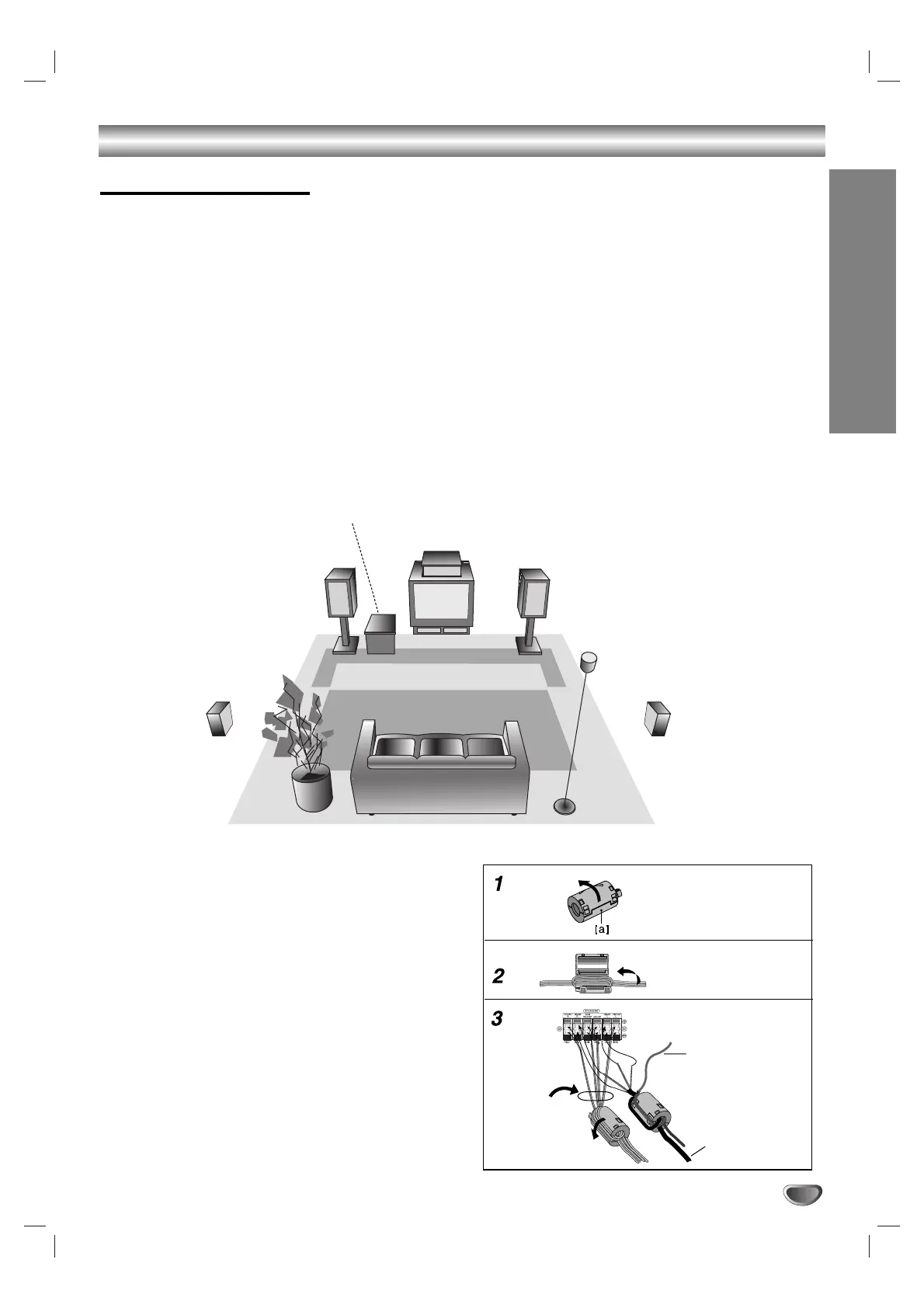

Speaker Positioning
In the case of normal position use the 6 speakers (2 front speakers, centre speaker, 2 rear speakers and sub-
woofer). If you want to play the excellent bass sound, DTS digital surround or Dolby Digital surround, you should
connect a subwoofer.
• Front speakers
According to your listening position set up the speakers for equal distance. And by hearing position set up the interval between
speakers to 45 degree.
• Centre speaker
The centre speakers and front speakers are ideally the same height. But normally place it above or below the television.
• Rear speakers
Place left and right behind the listening area. These speakers recreate sound motion and atmosphere required for surround
sound playback. For best results, do not install the rear speakers too far behind the listening position and install them at or
above the level of the listener’s ears. It is also effective to direct the rear speakers towards a wall or ceiling to further disperse
the sound.
In the case of a smaller room size, if the audience is near to the rear wall set the rear speakers opposite each other, and set the
rear speakers above 60 - 90 cm than the listener’s ears.
• Subwoofer
This can be placed in any front position.
About Ferrite Core (OPTIONAL)
Be sure to attach the ferrite core to the speaker
cables (for connecting to this unit).
This ferrite core can reduce noises.
How to attach the ferrite core
1 Press the stopper [a] of the ferrite core to
open.
2 Wind the cable once on the ferrite core.
3 Close the ferrite core until it clicks.
Note:
Attach the ferrite core near the unit (Refer to the fig.3
and comment.).
The length here
is short as much
as possible.
SOUND SIGNAL
cable
DC power cable
