Connections (Continued)
12

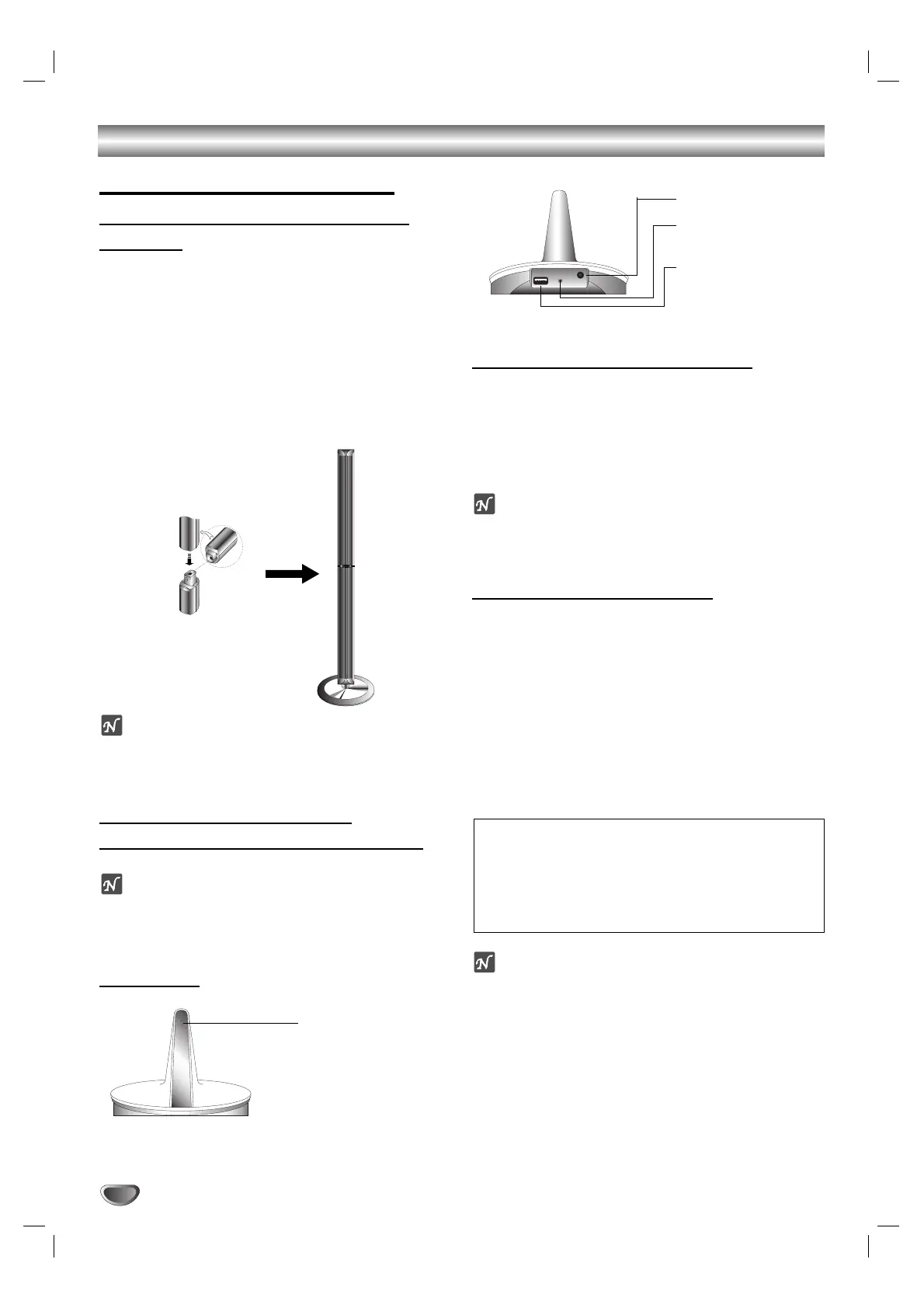

Speaker System Connection
Assembling and Connecting to the
Speakers
The front and rear speakers are detached from the
speaker stands. Connect the speaker cords and assem-
ble the front and rear speakers from speaker stands as
illustrated.
Connect the speaker cords to the appropriate termi-
nals on the bottom of each front and rear speaker.
After connecting the speaker cords to the appropriate
terminals on the bottom of each front and rear speak-
er and attach the front and rear speakers to the
speaker stands.
ote
You cannot detach the speaker from the stand after assem-
bling the front and rear speakers.
Setting a channel or ID of
transmitter and wireless speaker
ote
If there is a strong electromagnetic wave product
nearby, an interference may be occurred.
(Ex : Micro wave oven)
Transmitter
Setting a channel of Transmitter
If there is a similar wireless product nearby, interference
may occur. In this case, change to other channel using
ID/CHANNEL (ID./CH.) button of transmitter.
Press the ID/CHANNEL (ID./CH.) button for less
than about 3 seconds.
ote
The wireless speakers may not received the changed channel
of
transmitter. In this case set the
ID as below.
Setting an ID of Transmitter
1. Connect the wireless speakers to speaker termi-
nals of the main unit, using the supplied cable by
matching the colors (+/-) of the terminals and
those of the cords.
2. Connect power cord of each wireless speakers to
the wall power outlet.
3. Turn the main unit ON.
Blue LEDs of transmitter will flicker and Blue and Red
LEDs of
wireless speakers will flicker in turn, then the
Blue LEDs of both transmitter and
wireless speakers
will stay on when the wireless system works normally.
ote
If there is no audio signal for longer than 10 minutes, the
unit and transmitter will be automatically switched to power
saving mode. At power saving mode, both LEDs will turn
red. LEDs will turn blue when there is any audio signal
back.
LED indicator
Displays the operated
status.
To Next Page
