Part Description
Owner’s & Installation Manual 5
ENGLISH

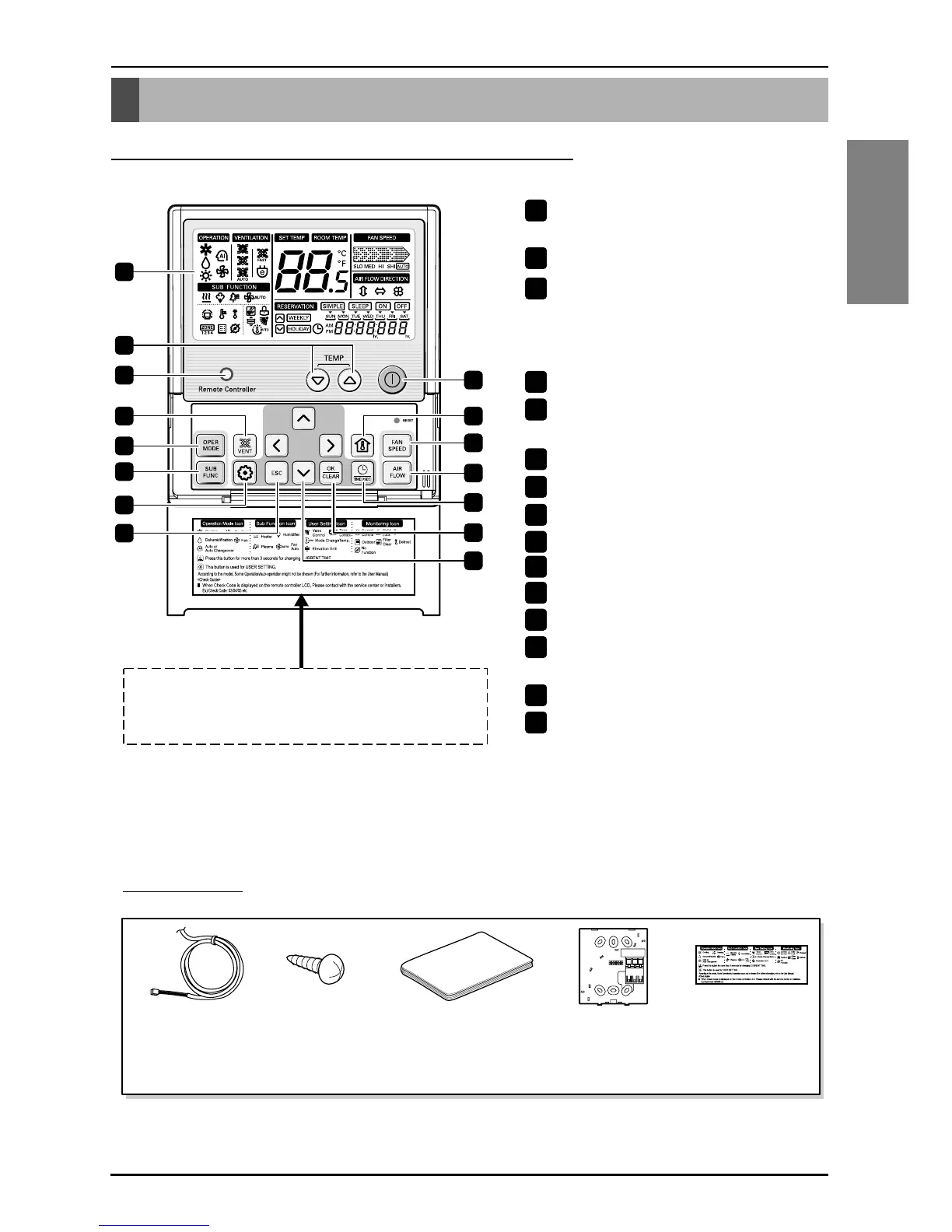

Part Description
Name and Function of Remote Controller
OPERATION INDICATION
SCREEN
SET TEMPERATURE Button
WIRELESS REMOTE
CONTROLLER RECEIVER
• Some products don't receive the
wireless signals.
VENTILATION Button
OPERATION MODE SELECTION
Button
SUBFUNCTION Button
FUNCTION SETTING Button
EXIT Button
ON/ OFF Button
ROOM TEMPERATURE Button
FAN SPEED Button
AIR FLOW Button
RESERVATION/ TIME SETTING
Button
SETTING/ CANCEL Button
UP, DOWN, LEFT, RIGHT Button
12V SIG GND
1
9
11
12
3
5
6
2
4 10
13
14
7
8
15
Please attach the inform label inside of the door.
Please choose proper language defend on your
country.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Connection Cable
(1EA, 10m)
Remote controller
screw
(4 EA)
Owner's /
Installation manual
Wired remote
controller
installation board
Inform label
(5EA-5Language)
Accessory
❊ Some functions may not be operated and displayed depending on the product type.
